When electrical systems fail, the culprit is often invisible: degraded insulation. I have spent years testing motors, transformers, and cables, and one thing becomes clear quickly. A quality insulation resistance tester is not optional equipment. It is the difference between catching a problem early and dealing with a catastrophic failure. Finding the best insulation resistance testers means sorting through specs that matter and features that actually help in the field.
Insulation testing goes by many names: megger testing, megohmmeter readings, insulation resistance measurement. Whatever you call it, the principle stays the same. You apply a DC voltage to the insulation and measure how much current leaks through. Higher resistance means healthier insulation. Lower readings warn of moisture, contamination, or deterioration that could lead to short circuits, equipment damage, or fire.
In this guide, I compare 12 top insulation resistance testers currently available. From professional-grade Fluke and Hioki units to budget-friendly options from KAIWEETS and Supco, I cover what works, what does not, and which tester fits your specific application. I have looked at everything from test voltage ranges and resistance measurement capabilities to safety ratings and data logging features. I also cover how insulation testers work, what to look for when choosing one, and answer the most common questions electricians ask. For related testing equipment, check out our guides on battery testers and insulation products.
Table of Contents
Top 3 Picks for Best Insulation Resistance Testers (September 2026)
Fluke 1587 FC
- 2-in-1 DMM and Insulation Tester
- Fluke Connect Wireless
- PI/DAR with Trend Graphs
Best Insulation Resistance Testers in 2026
| Product | Specs | Action |
|---|---|---|
| Fluke 1587 FC |
|
Check Latest Price |
| Klein Tools ET600 |
|
Check Latest Price |
| Supco M500 |
|
Check Latest Price |
 Fluke 1507 |
|
Check Latest Price |
 KAIWEETS KE1000 |
|
Check Latest Price |
 HIOKI IR4056 |
|
Check Latest Price |
 Ayitam PM1508 |
|
Check Latest Price |
 KAIWEETS KE2500 |
|
Check Latest Price |
 Extech 380260 |
|
Check Latest Price |
 UNI-T UT502A |
|
Check Latest Price |
 Supco M501 |
|
Check Latest Price |
 Amprobe AMB-45 |
|
Check Latest Price |

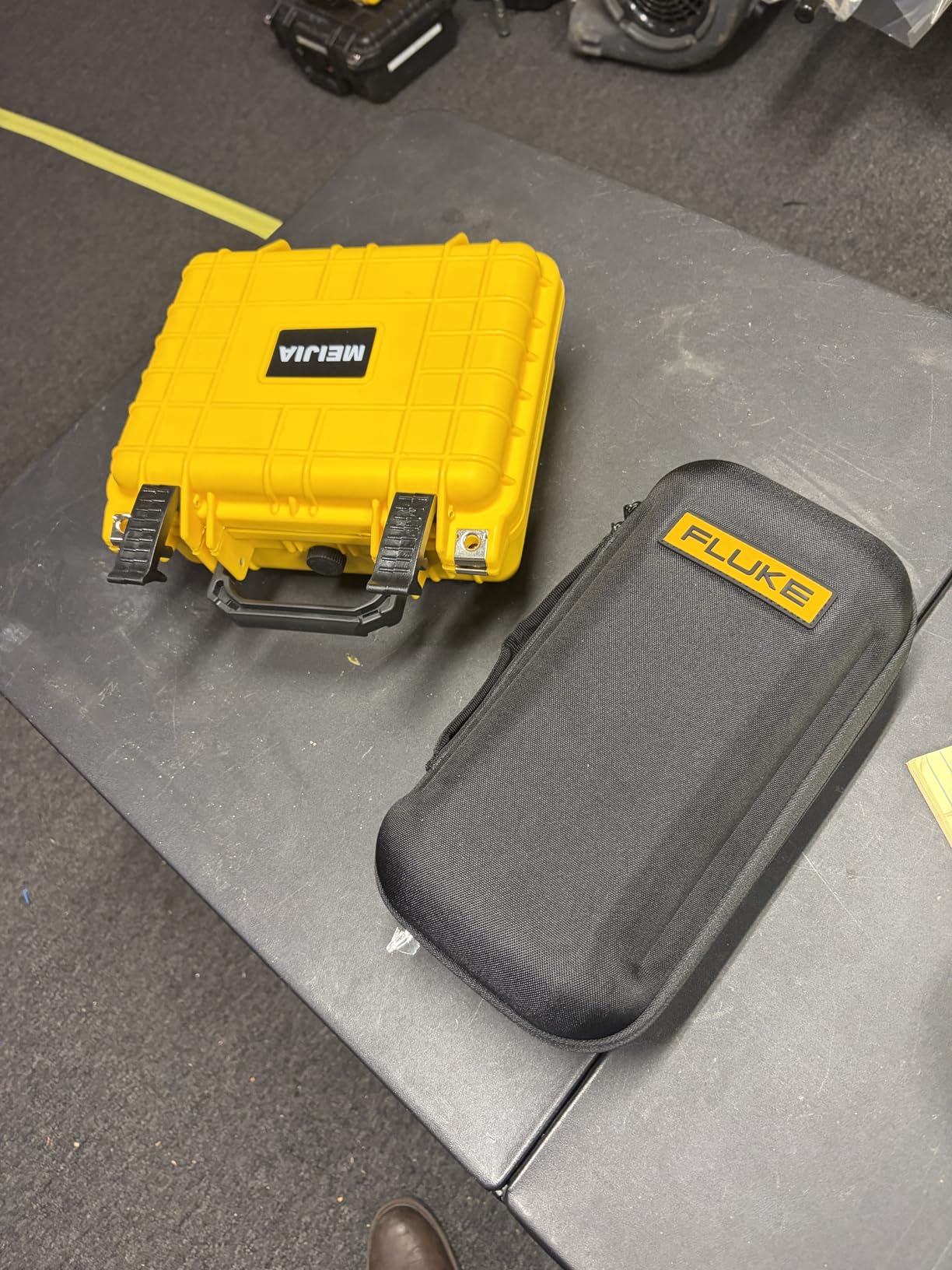

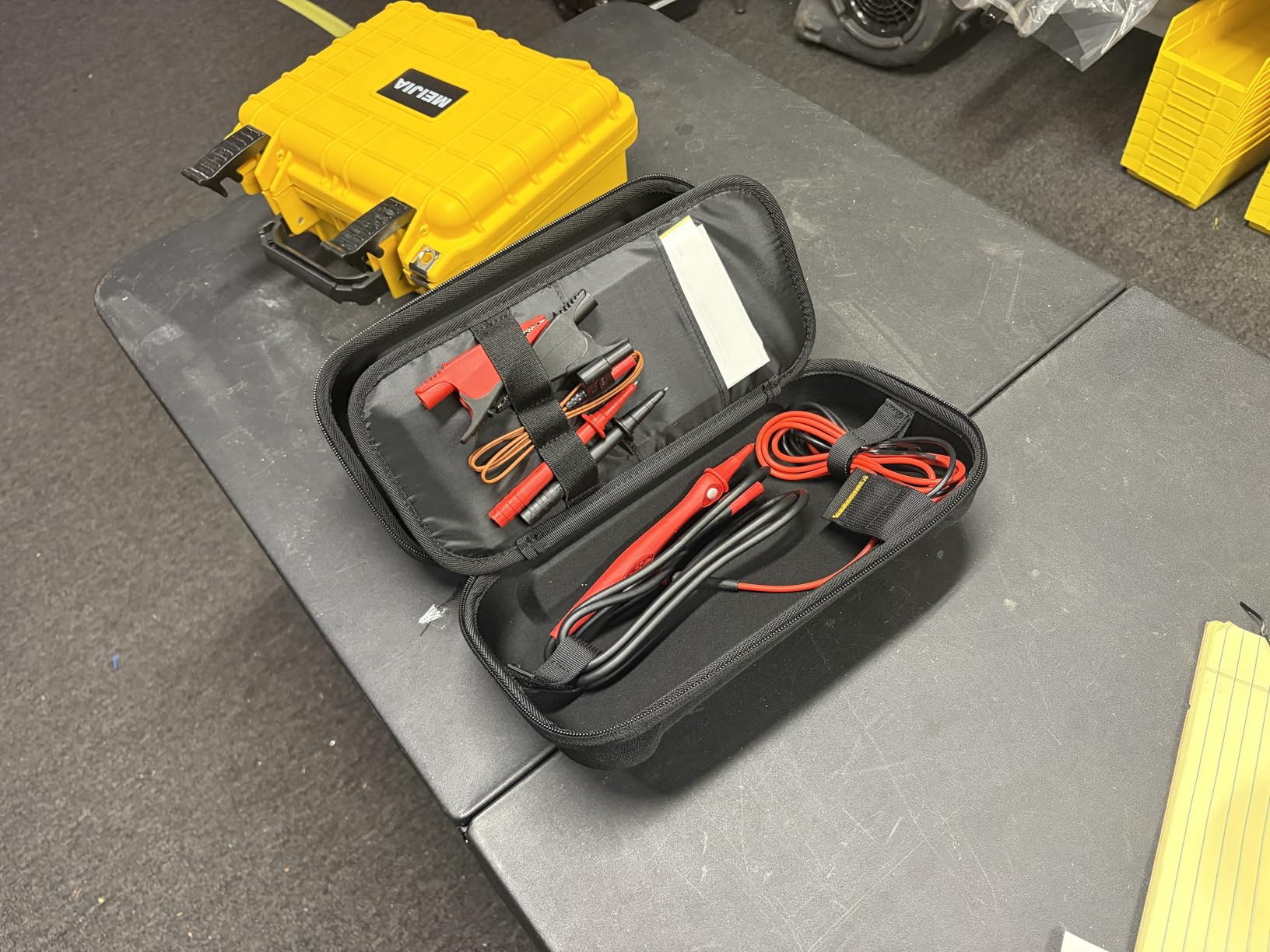

1. Fluke 1587 FC 2-in-1 Insulation Multimeter – EDITOR’S CHOICE
Fluke – FLUKE-1587 FC FLUKE 1587 FC 2-in-1 Insulation Multimeter
2-in-1 DMM and Insulation Tester
PI/DAR with Trend Graphs
Fluke Connect Wireless
50V-1000V Test Voltages
1645 g Weight
Pros
- Combines full-featured DMM and insulation tester in one unit
- PI and DAR features for advanced diagnostics
- Wireless Fluke Connect for remote data logging
- Solid rugged build quality
- Multiple test voltages for different applications
- Temperature compensation for accurate baselines
- Saves space by eliminating need for separate meters
Cons
- Higher price point
- Not a lightweight meter
- Some users wish it had amp clamp functionality
I have used this Fluke 1587 FC for months, and it quickly became my go-to instrument for insulation testing. The combination of a full digital multimeter and insulation tester in one housing means I carry one less tool to job sites. That matters when you are climbing ladders or crawling into tight spaces.
The PI and DAR functions make this tester shine for motor and transformer diagnostics. I can run a polarization index test and watch the trend graph build on the Fluke Connect app on my phone. No more scribbling readings at timed intervals. The app stores everything automatically, which creates documentation that satisfies compliance requirements without extra paperwork.
Test voltage options from 50V to 1000V cover the full range of applications I encounter. Low-voltage tests for control circuits, high-voltage tests for motors and transformers. The temperature compensation feature adjusts baseline readings for ambient conditions, which improves consistency when comparing measurements taken weeks apart.
Build quality matches what you expect from Fluke. The yellow housing takes drops and knocks without complaint. At 1645 grams, it has substance but remains manageable for extended use. The backlit display stays readable in dark switchgear rooms or outdoor installations at dusk.
For whom its good
Professional electricians and maintenance technicians who need both insulation testing and multimeter functions will appreciate the all-in-one design. The PI/DAR capabilities make this ideal for motor shops, industrial maintenance departments, and anyone doing predictive maintenance programs.
Facilities teams managing compliance documentation benefit from the wireless data logging. The Fluke Connect app creates records automatically, eliminating manual data entry errors and providing historical tracking for equipment trending.
For whom its bad
Electricians who need clamp-on current measurements will still need a separate meter. The 1587 FC does not include current clamp capability, which limits its standalone use for full electrical troubleshooting. Budget-conscious buyers may find the price difficult to justify for occasional use.
Users preferring lightweight, pocket-sized testers will find this unit substantial. It trades compactness for feature density, so it works best for technicians who value functionality over minimal bulk.

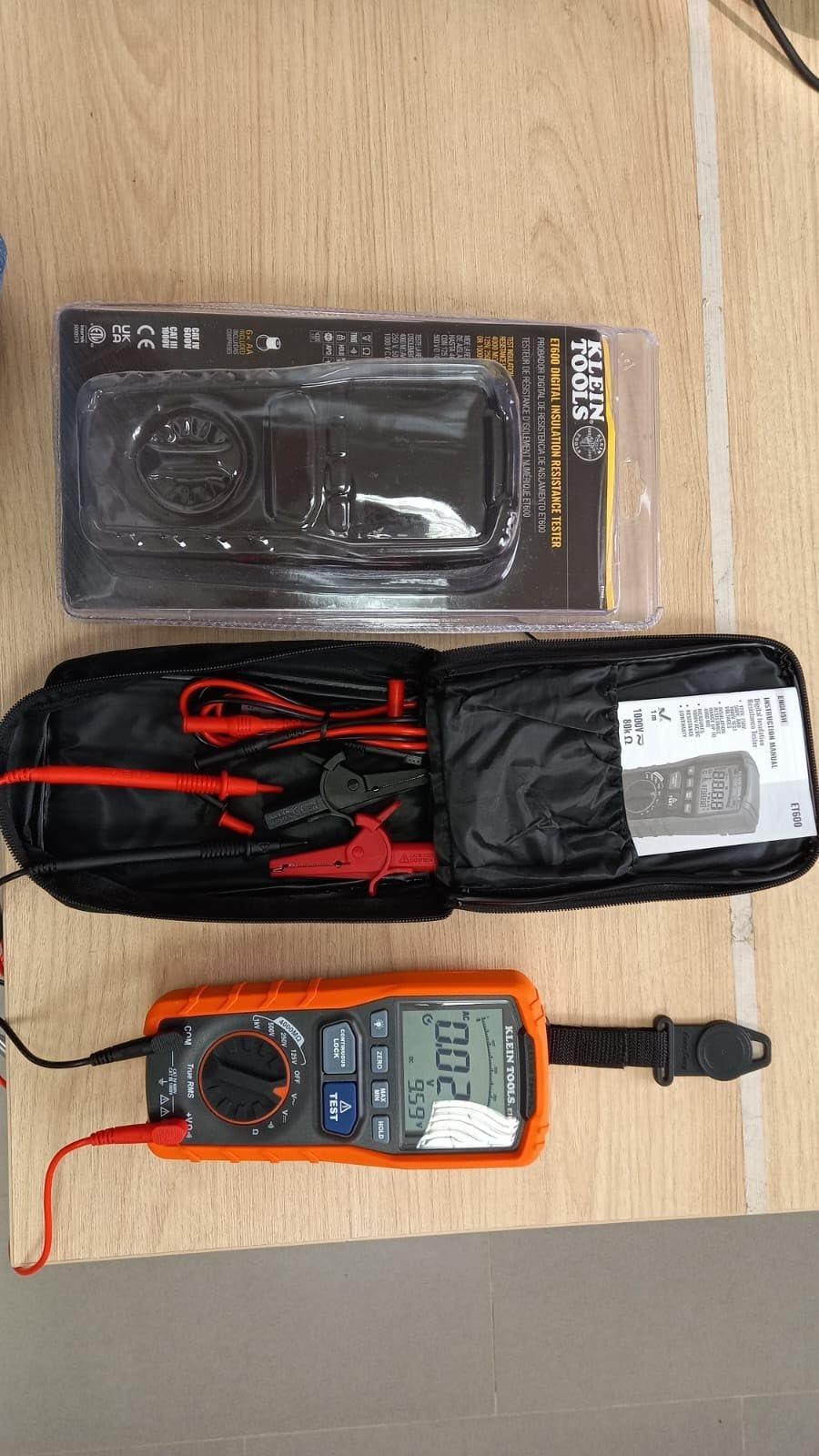

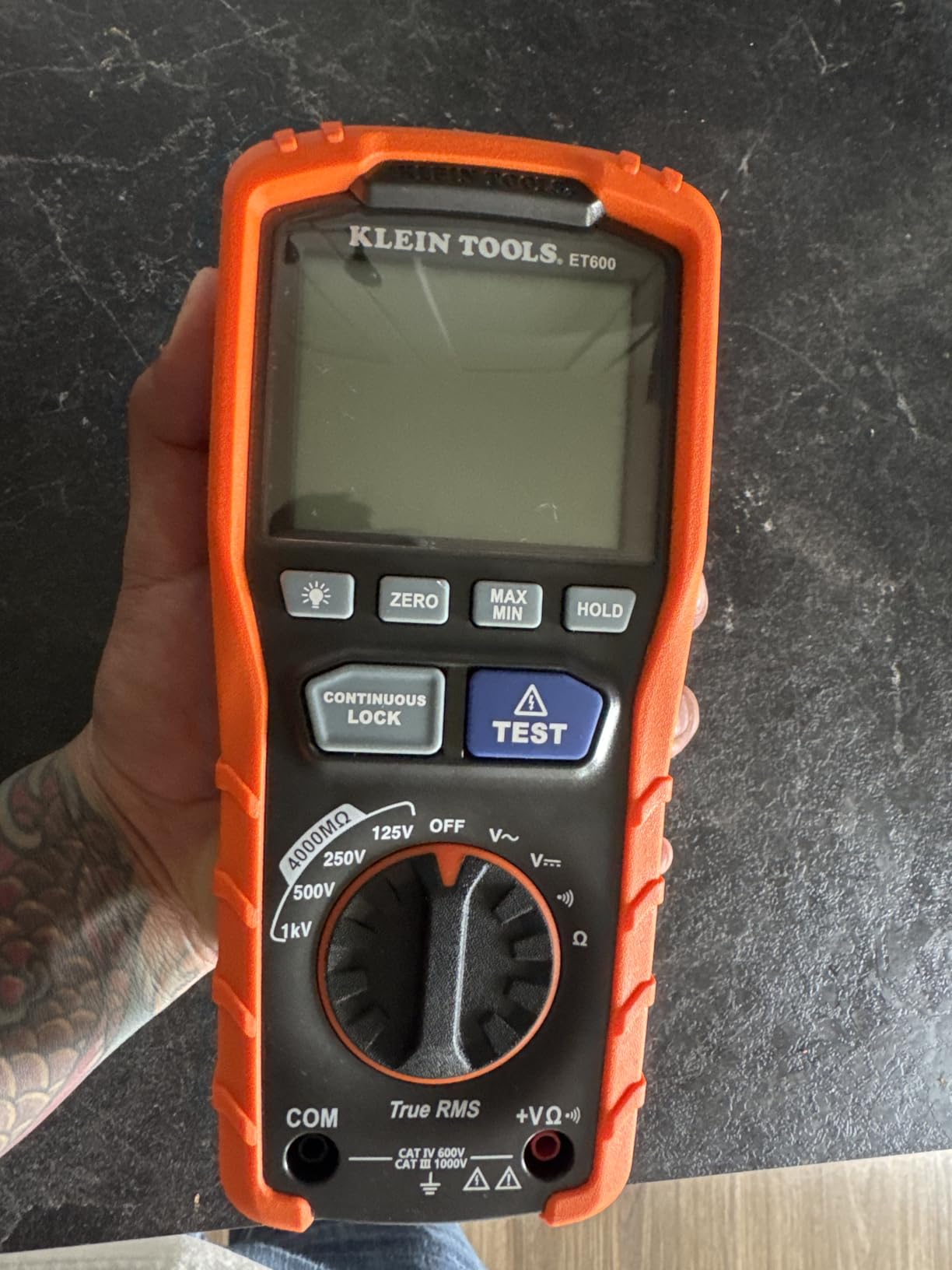

2. Klein Tools ET600 Multimeter Megohmmeter – Top Rated
Klein Tools ET600 Multimeter, Megohmmeter Insulation Tester, 4000 Ohms Resistance, 125V/250V/500V/1000V, Auto-Ranging TRMS Multimeter
Auto-Ranging TRMS
125V/250V/500V/1000V Test Voltages
4000MΩ Max Resistance
1.4 lbs Weight
Backlit Display
Pros
- Excellent value compared to premium brands
- Reliable for testing electric motors and electrical insulation
- User-friendly with clear display and straightforward interface
- Rugged build quality suitable for field work
- Versatile functionality - multimeter and insulation tester in one
- Backlit display for visibility in various lighting
- Safety features including voltage detection
Cons
- 4000-count resolution less granular than lab-grade meters
- Some users note it is chunky for awkward testing positions
The Klein Tools ET600 hits a sweet spot that many electricians look for. It delivers insulation testing capability combined with multimeter functions at a price point significantly lower than the Fluke alternatives. I have recommended this tester to apprentice electricians and HVAC technicians who need reliable equipment without the premium brand premium.
Four test voltage options cover the common range: 125V, 250V, 500V, and 1000V. That flexibility handles everything from control circuit testing to motor insulation verification. The auto-ranging True RMS technology means you get accurate measurements without manually selecting ranges, which speeds up testing when you are working through multiple devices.
The backlit display with bar graph provides clear readings in various lighting conditions. I have used this in dimly lit mechanical rooms and bright outdoor installations without struggling to see values. Safety features like live circuit detection and high voltage warnings help prevent accidents, which matters when you are focused on the test and not watching for hazards.
Build quality matches Klein Tools reputation. The orange and black housing survives job site abuse. At 1.4 pounds, it has enough weight to feel substantial without being burdensome during long testing sessions.
For whom its good
HVAC technicians testing compressor motors and condenser fans find this tester well-suited to their work. The insulation testing range handles typical motor insulation checks, and the built-in multimeter covers general electrical troubleshooting.
Electricians who want one tool that does multiple jobs appreciate the combined functionality. Instead of carrying separate insulation tester and multimeter, they get both in a rugged, familiar Klein Tools package.
For whom its bad
Engineers needing lab-grade accuracy for compliance testing may find the 4000-count resolution limiting. Critical applications that require higher precision measurements need more sophisticated instruments.
Technicians working in extremely tight spaces may find the form factor bulky. Some users report the chunky design makes awkward testing positions more difficult than with slimmer dedicated testers.

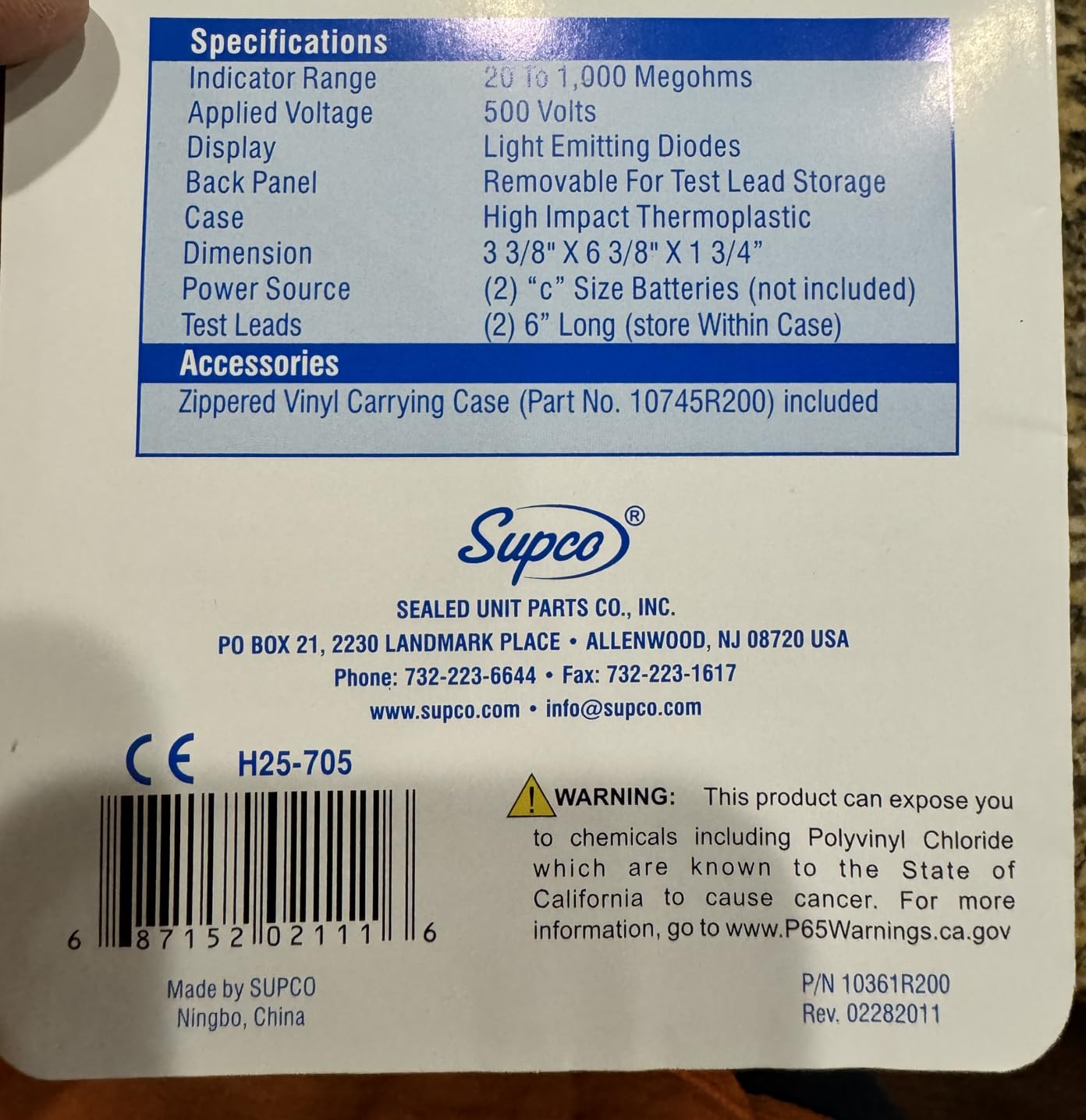

3. Supco M500 Electronic Megohmmeter – BUDGET PICK
Supco M500 Electronic Megohmmeter, 0 to 1000 Megohms
500V Test Voltage
Measures to 1000 Megohms
LED Zone Display
Battery Powered
9.3 x 6 x 1.8 inches
Pros
- High voltage accurate testing up to 1000 megohms
- Ideal for HVAC applications and compressor testing
- Portable battery operated design with carrying case
- Clear LED display for easy reading
- Magnets on terminal leads for convenient hands-free testing
- Consistent field performance for motors and transformers
- Auto-discharge feature for safety
- Rugged rubberized housing
Cons
- Uses C size batteries which are less common
- Shorter leads that may be limiting for some applications

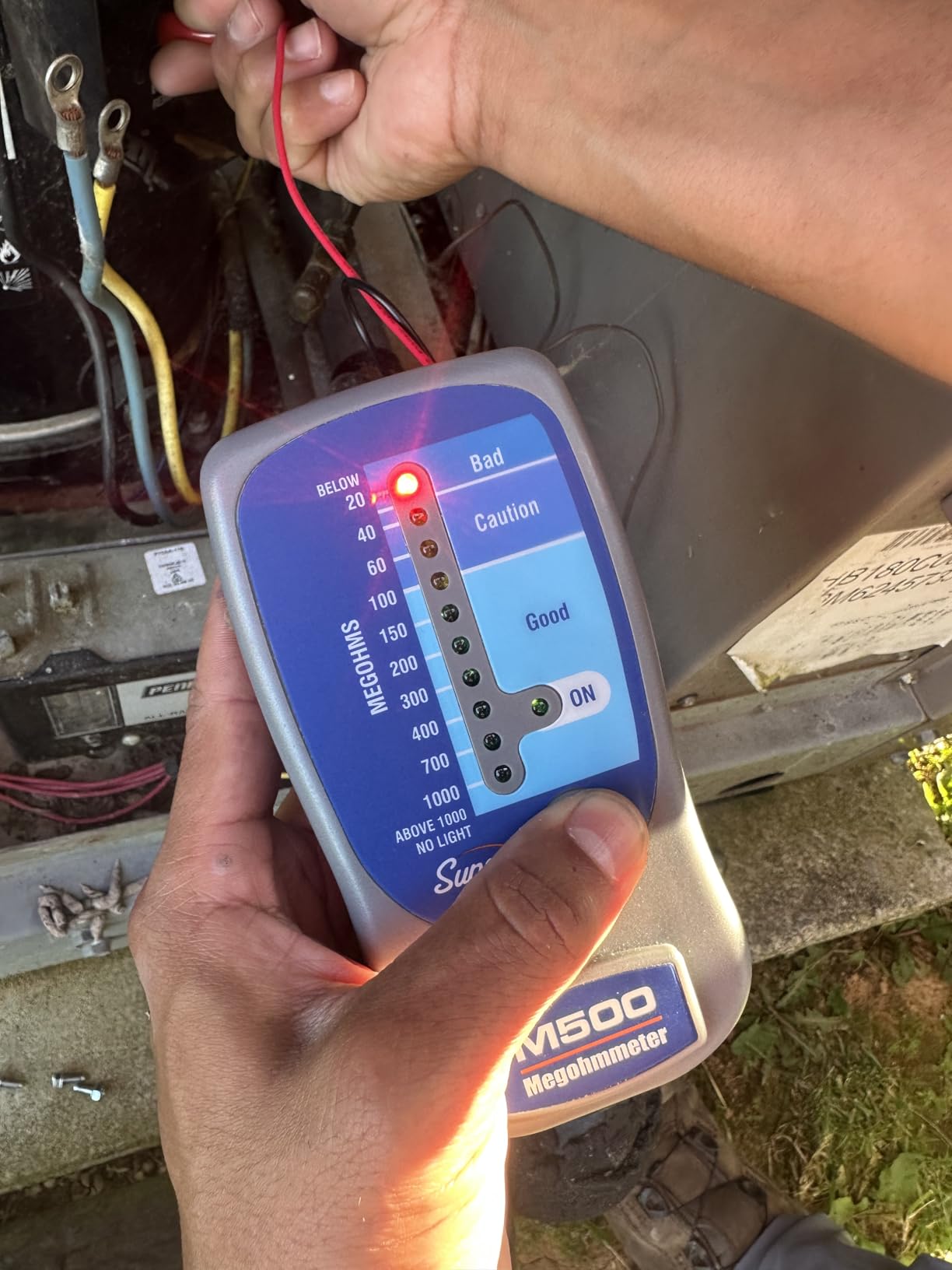

The Supco M500 strips insulation testing to its essentials and does so at a price that makes sense for technicians who need the capability occasionally. I have seen HVAC techs pull this tester from their tool bags for quick compressor checks, and it performs that job reliably.
A single 500V test voltage matches what most motor and compressor testing requires. The zone scale display tells you quickly whether insulation falls into good, caution, or bad territory. That straightforward readout eliminates interpretation confusion when you are troubleshooting in the field.
Magnet-tipped test leads make one-person testing easier. You can attach the leads to motor terminals and operate the tester without needing a third hand to hold probes in place. That practical feature shows Supco designed this for real-world use, not just laboratory specifications.
The rugged rubberized housing survives the knocks that come with field work. At under 10 inches long, it fits in tool bags without dominating space. The included soft carrying case protects the unit between jobs.
For whom its good
HVAC technicians who test compressor motors regularly will find the M500 well-matched to their needs. The 500V test voltage and 1000 megohm range cover typical motor insulation checks without excess complexity.
Electricians who need occasional insulation testing without investing in professional-grade equipment get solid value from this unit. It delivers the core function without features you pay for but never use.
For whom its bad
Engineers requiring multiple test voltages for different applications need a more flexible tester. The single 500V setting limits the M500 to specific use cases.
Technicians who want precise numerical readings instead of zone indicators may find the display lacking. The LED zone scale tells you good versus bad but does not provide detailed resistance values for trending or documentation.
4. Fluke 1507 Digital Megohmmeter – Best Value
Fluke 1507 Digital Megohmmeter Resistance Tester for Advanced Industrial and Electrical Testing, Test Voltages: 50V, 100V, 250V, 500V, 1000V
5 Test Voltages: 50V-1000V
NIST Calibration Included
Remote Test Probe
500g Weight
Live Circuit Detection
Pros
- NIST calibrated for assured accuracy
- Remote test probe for hard-to-reach testing
- Live circuit detection for user protection
- Large backlit display for easy reading
- Reliable Fluke quality and build
- Multiple test voltage options
- Good value for professional-grade equipment
Cons
- Does not include a protective case
- Battery life may be shorter than expected
The Fluke 1507 delivers dedicated insulation testing with the accuracy and reliability professionals expect from the brand. I have used this tester for motor winding verification, cable insulation checks, and transformer testing, and it consistently provides trustworthy readings.
Five test voltages give you application flexibility. Select 50V or 100V for sensitive control circuits. Use 250V, 500V, or 1000V for motor and transformer insulation. That range covers the spectrum from delicate electronics to industrial power equipment.
The NIST-traceable calibration certificate that arrives with the unit means you can use it immediately in environments requiring documented accuracy. Quality systems and compliance programs often mandate calibrated instruments, and the 1507 arrives ready to satisfy those requirements.
I particularly like the remote test probe. When you need to test repeatedly or reach awkward spots, the probe lets you trigger tests away from the main unit. That feature reduces strain during long testing sessions and makes tight-access situations manageable.
For whom its good
Industrial maintenance technicians who test a variety of equipment types benefit from the multiple voltage options. One tester handles motors, transformers, cables, and control circuits.
Electricians working in facilities with quality management systems appreciate the included NIST calibration. The documentation arrives with the tester, ready for record-keeping requirements.
For whom its bad
Technicians expecting a carrying case at this price point will be disappointed. The tester arrives without a protective case, so you need to source your own storage solution.
Users who need multimeter functions alongside insulation testing should consider the 1587 FC instead. The 1507 focuses purely on insulation measurement without additional capabilities.

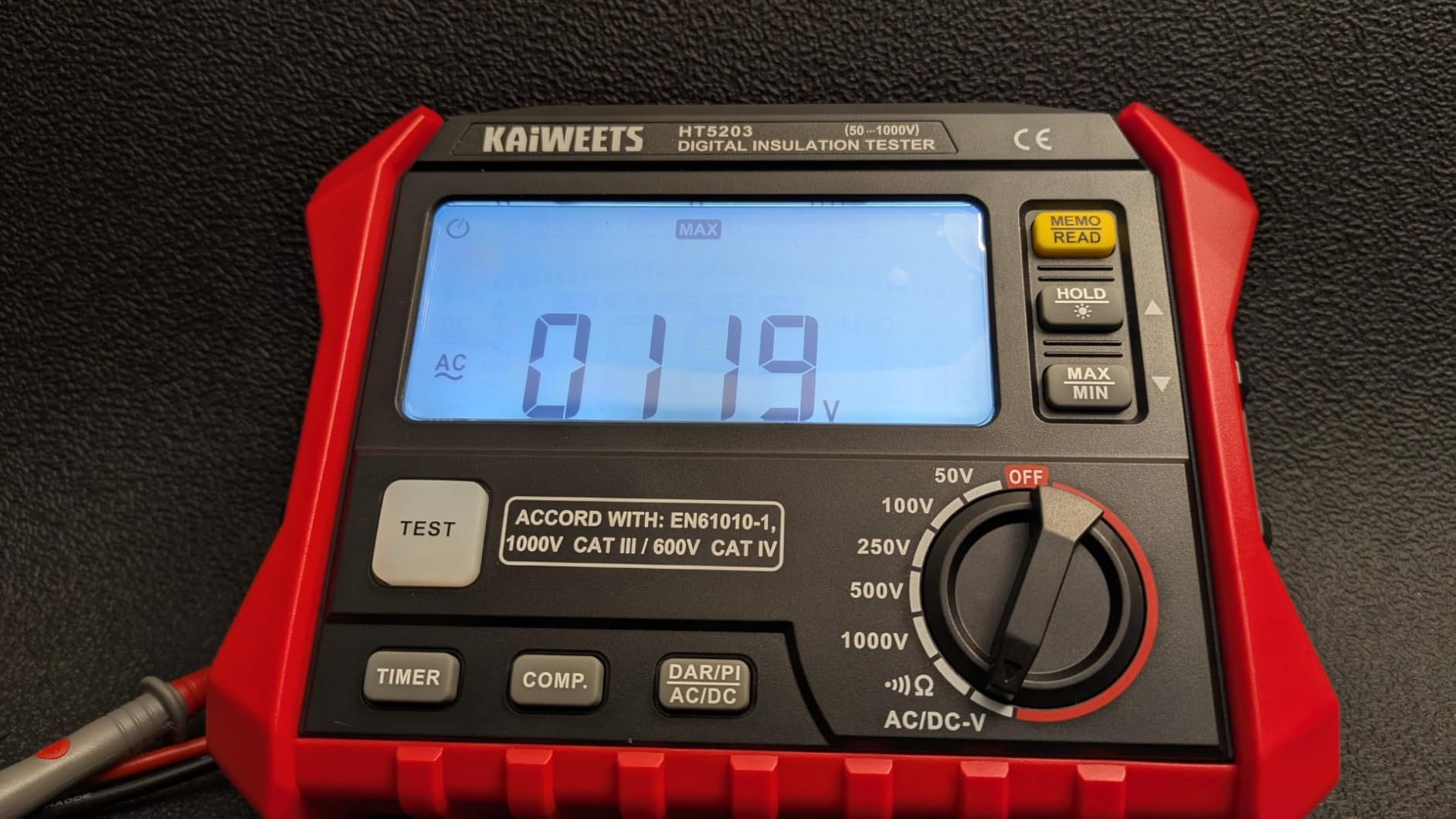

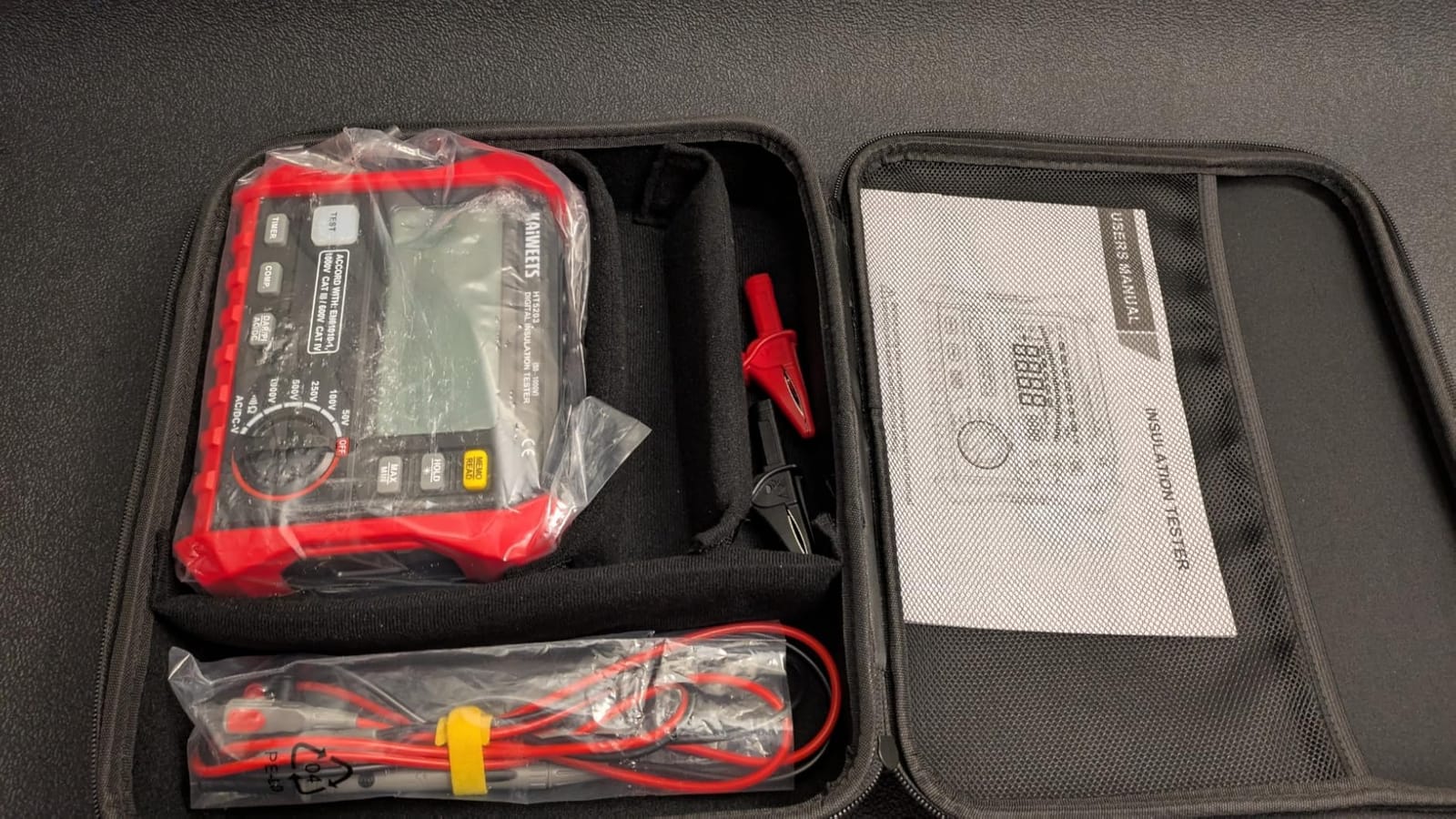

5. KAIWEETS KE1000 Insulation Tester – BEST FOR SOLAR
KAIWEETS Megohmmeter Insulation Tester 3MΩ-100GΩ 1000V DAR/PI Pro Ohm Meter
5 Test Voltages: 50V-1000V
100GΩ Measurement Range
Built-in DAR/PI
3-in-1 Multimeter
1600g Weight
Pros
- Wide measurement range up to 100GΩ
- Built-in DAR/PI calculations
- PASS/FAIL alarm with custom thresholds
- 3-in-1 functionality saves tool bag space
- Good safety certifications
- Large backlit screen
- 36-month warranty and lifetime support
- Includes carrying case and batteries
Cons
- Not as sensitive for low resistance measurements
- Voltage accuracy not as good as dedicated multimeters
- Uses disposable AA batteries
The KAIWEETS KE1000 brings advanced features to a budget-friendly price point. I have recommended this tester to solar installers and technicians who need the DAR and PI functions without paying premium brand prices.
The 100GΩ measurement range handles the high resistance values you encounter with solar panel strings and long cable runs. Five selectable test voltages from 50V to 1000V match the flexibility of more expensive testers.
Built-in DAR and PI calculations eliminate the need for manual timing and calculation. The tester does the math for you, displaying results directly on the large backlit screen. That automation reduces errors and speeds up testing when you are working through multiple devices.
The 3-in-1 design combines insulation testing with AC/DC voltage measurement and continuity testing. One tool covers the basic electrical checks you perform alongside insulation tests, saving space in your tool bag.
For whom its good
Solar installers testing photovoltaic string insulation find the 100GΩ range and 1000V test voltage well-suited to their work. The PASS/FAIL threshold feature speeds up commissioning inspections.
Technicians who need DAR and PI functions without Fluke-level investment get capable features at a fraction of the cost. The 36-month warranty provides peace of mind for the investment.
For whom its bad
Electricians requiring precise low-resistance measurements should not rely on this for those tasks. The voltage measurement accuracy does not match dedicated multimeters.
Technicians who prefer rechargeable batteries will need to supply their own. The KE1000 uses eight AA disposable batteries, which adds ongoing cost and environmental consideration.
6. HIOKI IR4056 Insulation Tester – BEST FOR EV TESTING
HIOKI Insulation Tester IR4056
5 Test Voltages: 50V-1000V
4000MΩ Max Resistance
PASS/FAIL in 0.8 Seconds
Built-in AC/DC Voltage Meter
600g Weight
Pros
- Fast and stable readings with PASS/FAIL in 0.8 seconds
- Built-in AC/DC voltage meter eliminates need for separate device
- Rugged drop-proof design from 1 meter
- Bright LED display for field visibility
- Excellent for EV and HEV vehicle testing
- Made in Japan quality
- Good value for professional-grade equipment
Cons
- Instructions may be in Japanese or Asian languages
- No remote probe included
The HIOKI IR4056 brings Japanese engineering precision to insulation testing. I have seen electric vehicle technicians reach for this tester when checking high-voltage battery pack insulation, and the speed and reliability make it a favorite for that demanding application.
The PASS/FAIL comparator delivers a decision in approximately 0.8 seconds. That speed matters when you are testing multiple points on an EV battery pack or working through a preventive maintenance checklist. You spend less time waiting for readings and more time on actual diagnostics.
Built-in AC/DC voltage measurement means you can check for live circuits without switching tools. That capability streamlines the workflow when you need to verify zero energy before insulation testing, then proceed directly to the insulation check.
The drop-proof design from 1 meter gives confidence for field use. EV technicians work in service bays and sometimes outdoors, and the IR4056 survives the occasional fall. The bright LED display stays visible in various lighting conditions.
For whom its good
Electric vehicle and hybrid vehicle technicians benefit from the fast PASS/FAIL results and voltage checking capability. The 1000V range handles the high-voltage systems found in modern EVs.
Maintenance technicians who value speed appreciate the 0.8-second comparator decision. Time adds up when testing dozens of points, and this tester moves you through the work efficiently.
For whom its bad
Technicians who need English documentation may encounter frustration. Some units ship with instructions in Japanese or other Asian languages, requiring translation or online research.
Users wanting remote probe capability for hard-to-reach testing will need to look elsewhere. The IR4056 does not include this feature.

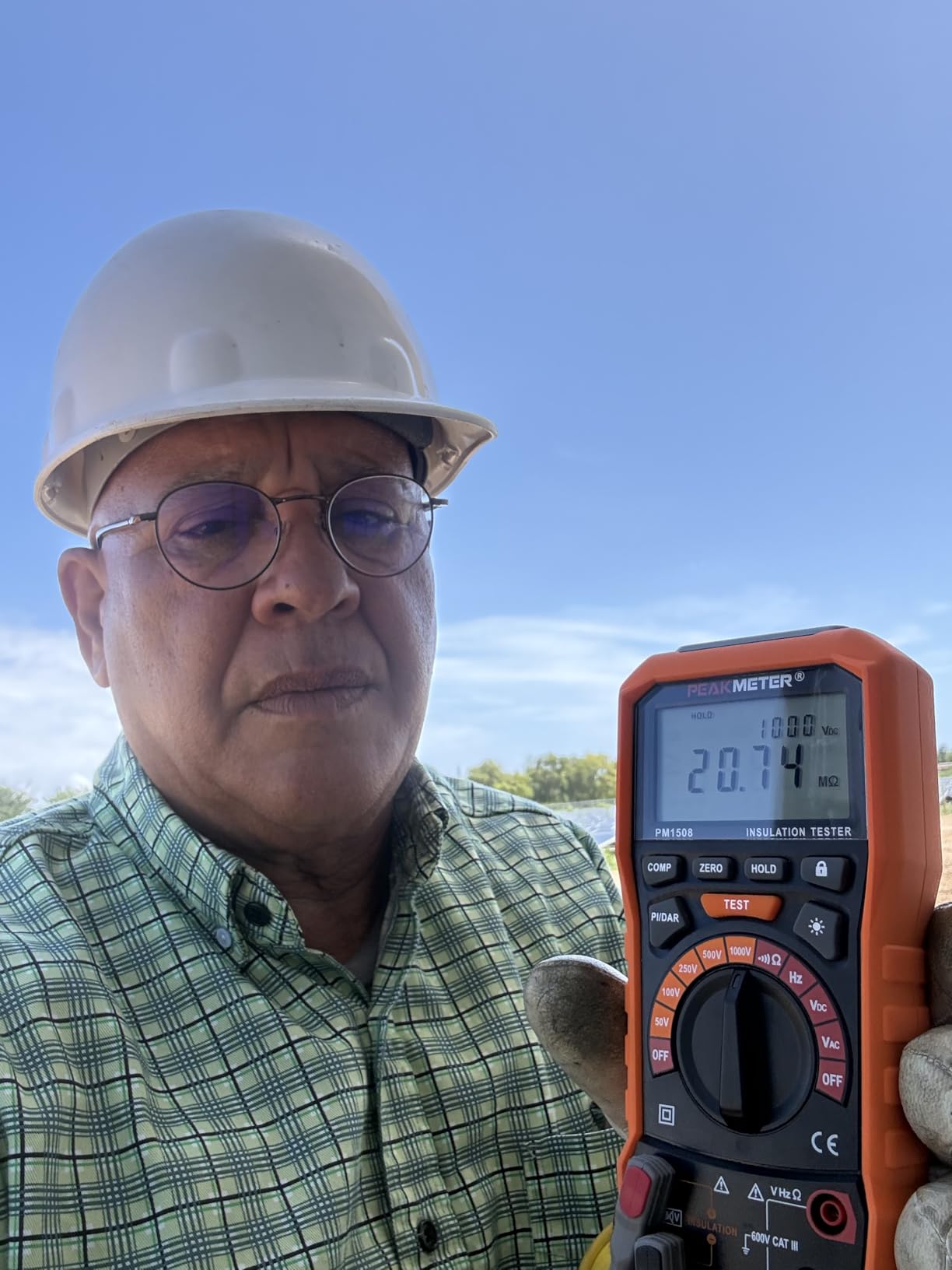

7. Ayitam PM1508 Megohmmeter – COMPACT CHOICE
Megohmmeter, Insulation Resistance Tester, 50V-1000V Up to 100GΩ
5 Test Voltages: 50V-1000V
100GΩ Measurement Range
PI/DAR Functions
CAT III 600V Safety
818g Weight
Pros
- Combined megohmmeter and multimeter functionality
- High measurement range up to 100GΩ
- PI/DAR functions for accurate insulation analysis
- Good safety ratings (EN61010-1
- CAT III 600V)
- Includes all necessary accessories and batteries
- Compact and portable design
- Easy to use interface
Cons
- Limited review volume compared to premium brands
- Some users note instructions could be clearer
The Ayitam PM1508 combines megohmmeter and multimeter functions in a compact package. I have seen this tester appeal to technicians who want the combined functionality without the bulk or price of premium brands.
Five test voltages from 50V to 1000V provide application flexibility. The 100GΩ measurement range handles the high resistance values typical of well-insulated motors and transformers. That range exceeds what basic testers offer.
PI and DAR functions enable trending analysis for motor and transformer insulation. These diagnostic capabilities typically appear on more expensive testers, so having them at this price point represents solid value.
Safety ratings including EN61010-1 compliance and CAT III 600V rating provide protection for field work. The tester includes test leads, alligator clips, batteries, and a user manual, so it arrives ready for use.
For whom its good
Electricians who want combined insulation testing and multimeter capability in a compact form factor find this tester practical. The 818-gram weight makes it easy to carry and use for extended periods.
Technicians testing transformers, motors, and cables appreciate the 100GΩ range and PI/DAR functions. These features support preventive maintenance programs that track insulation health over time.
For whom its bad
Buyers who rely on large review volumes for confidence may hesitate. This tester has fewer reviews than established brands, which makes it harder to gauge long-term reliability.
Users who want extensive English documentation may find the included manual lacking. Some reviews indicate instructions could be clearer and more comprehensive.

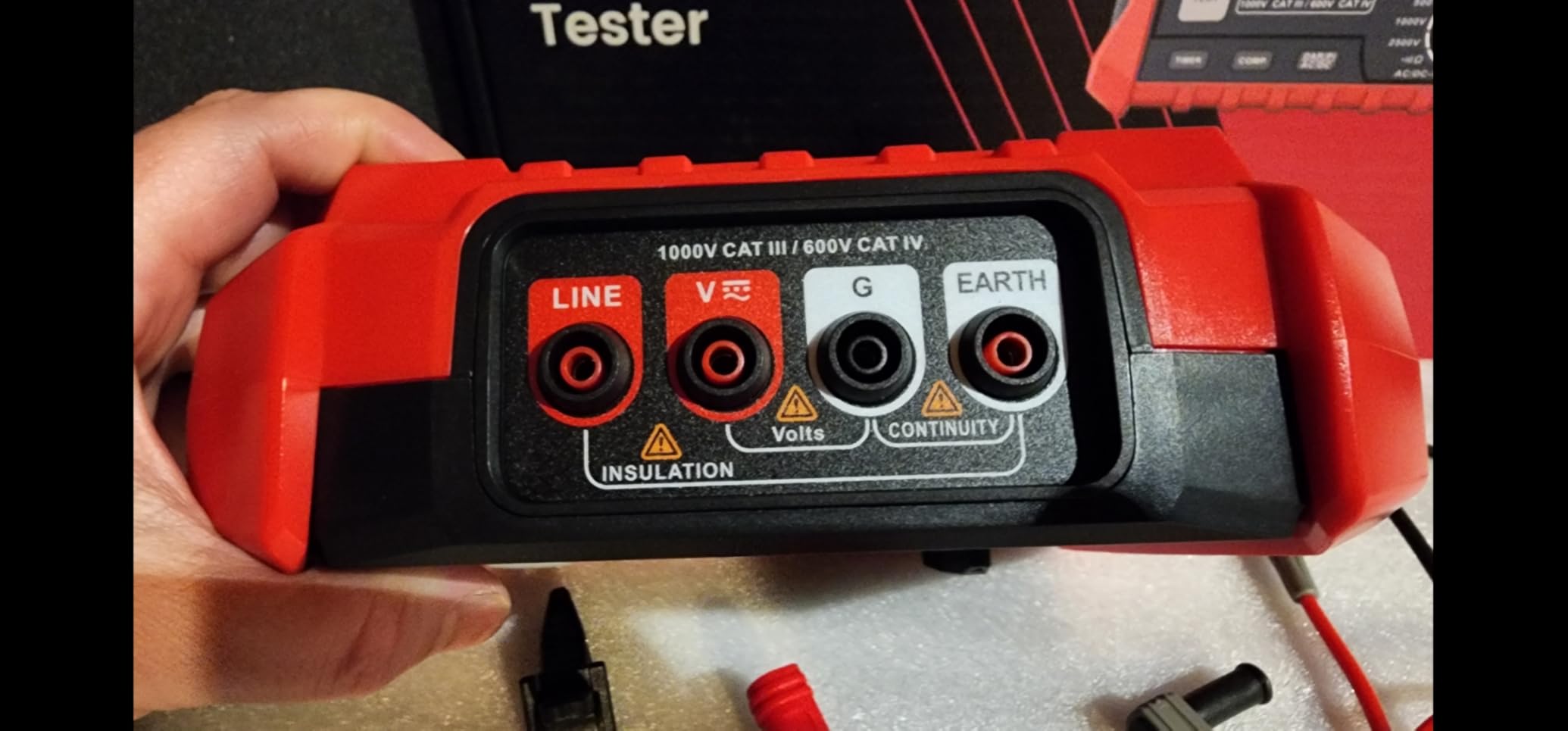

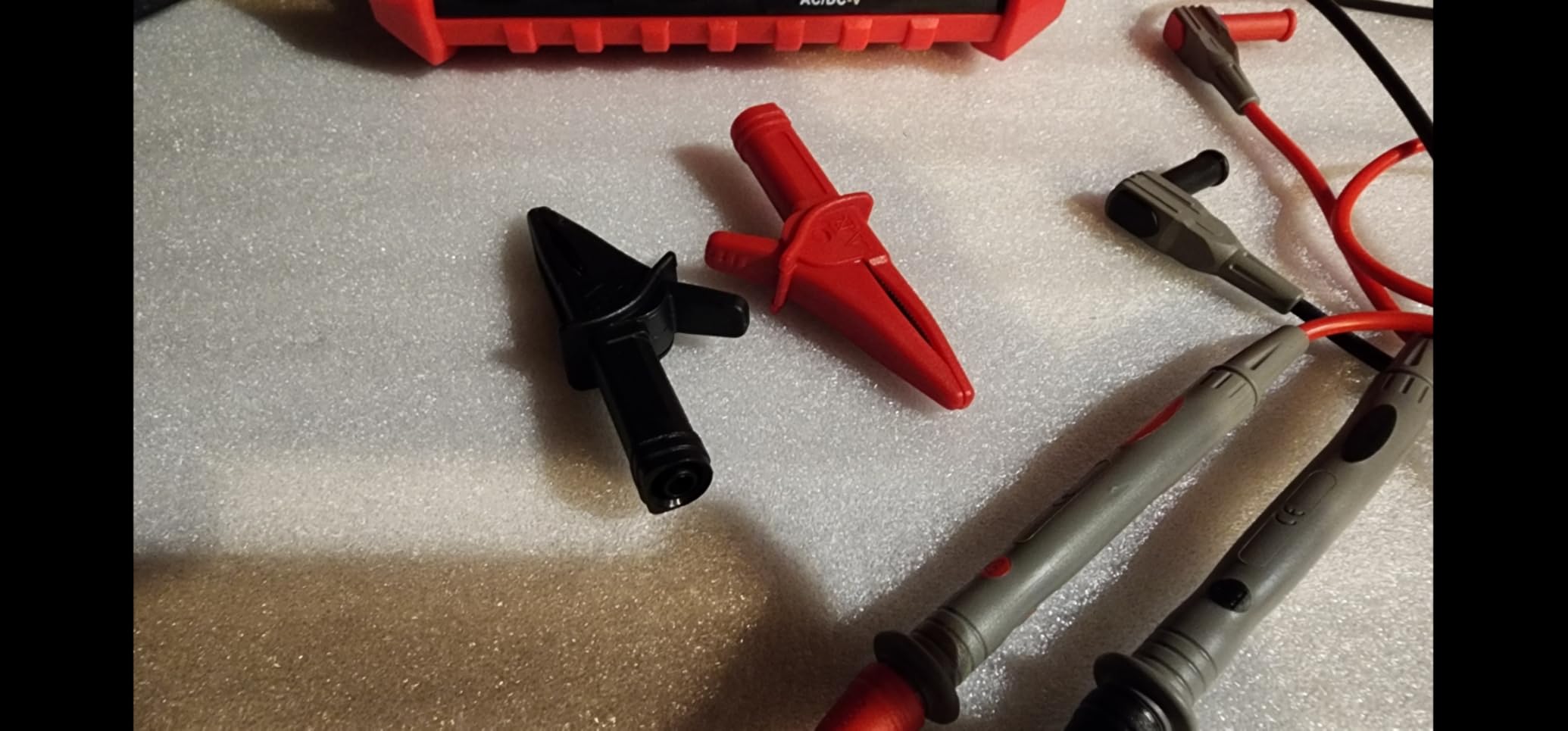

8. KAIWEETS KE2500 High Voltage Insulation Tester – HIGH VOLTAGE PICK
KAIWEETS Megohmmeter Insulation Tester 0.1MΩ-200GΩ 2500V DAR/PI Ohm Meter
200GΩ Measurement Range
5 Test Voltages up to 2500V
Built-in DAR/PI
CAT III 1000V Safety
1600g Weight
Pros
- Wide measurement range up to 200GΩ
- High test voltage options up to 2500V
- Built-in DAR/PI calculations
- PASS/FAIL threshold customization
- Good safety certifications
- Includes carrying case and batteries
- 36-month warranty and lifetime support
Cons
- Some reports of reliability issues after initial use
- Uses disposable batteries rather than rechargeable
- Alligator clip inserts could be more secure
- Higher voltage output may be intimidating for new users
The KAIWEETS KE2500 targets applications requiring higher test voltages than typical insulation testers provide. I have seen this model used for high-voltage cable testing and industrial equipment where 2500V test capability matters.
The 200GΩ measurement range extends well beyond standard testers. Combined with test voltages from 100V up to 2500V, this tester handles applications others cannot reach. Power utility maintenance and substation equipment testing benefit from these higher ranges.
Built-in DAR and PI calculations support trending analysis. The PASS/FAIL threshold customization lets you set criteria relevant to your specific equipment and standards. That flexibility adapts the tester to your maintenance protocols rather than forcing you to adapt to its limitations.
Safety certifications including IEC/EN 61010-1 CAT III 1000V and CAT IV 600V provide appropriate protection for high-voltage testing environments. The included carrying case and eight AA batteries mean you can start work immediately.
For whom its good
Power utility technicians and industrial electricians who test high-voltage equipment benefit from the 2500V test capability. Motors, transformers, and cables rated for higher voltages require correspondingly higher test voltages.
Maintenance engineers who need 200GΩ measurement range for high-quality insulation find this tester suitable. The extended range detects subtle degradation that lower-range testers might miss.
For whom its bad
Technicians new to high-voltage testing may find the 2500V capability intimidating. Proper training and safety protocols are essential when working at these voltages.
Users prioritizing proven long-term reliability may have concerns. Some reviews mention reliability issues after initial use, though the 36-month warranty provides some protection.
9. Extech 380260 Autoranging Insulation Tester – AUTO-RANGING CHOICE
Extech 380260 Autoranging Digital Insulation Tester, 250/500/1000V
Auto-Ranging Digital
3 Test Voltages: 250V/500V/1000V
2000 MΩ Range
Dual Backlit LCD
1 kg Weight
Pros
- Good value compared to more expensive units
- Autoranging functionality for ease of use
- Large dual backlit display
- Multiple measurement functions in one device
- Complete kit with case and batteries included
- Automatic discharge for safety
- Protective holster with stand
Cons
- Some units reported insulation testing function failure after months of use
- Manual could be clearer
- Screws for battery compartment difficult to remove
The Extech 380260 brings autoranging convenience to insulation testing. I have used Extech instruments for years, and the 380260 delivers the straightforward operation you expect from the brand.
Three selectable test voltages cover common applications: 250V, 500V, and 1000V. The autoranging function selects the appropriate resistance range automatically, eliminating guesswork and reducing errors. That simplicity speeds up testing when you are working through multiple devices.
The dual backlit LCD shows both test voltage and resistance simultaneously. That visibility helps you confirm you are applying the right voltage while reading the measurement, reducing the chance of misinterpretation.
The included protective holster with built-in stand makes hands-free viewing possible. Automatic discharge after each test improves safety by ensuring capacitive energy dissipates before you disconnect leads. The complete kit includes test leads, carrying case, and six AA batteries.
For whom its good
Electricians who prefer automatic range selection over manual switching find the autoranging function convenient. The tester handles the range selection, letting you focus on connections and readings.
Technicians who want a complete kit with accessories included appreciate the case, batteries, and leads arriving together. Nothing to source separately before starting work.
For whom its bad
Users requiring long-term reliability for daily professional use should consider alternatives. Some reviews indicate insulation testing function failure after months of use, suggesting durability concerns.
Technicians who need clear documentation may find the manual lacking. The instructions could provide better guidance for complex testing scenarios.
10. UNI-T UT502A Insulation Megger Tester
UNI-T 2500V Insulation Tester Megohmmeter, Ground Resistance Meter
Ground Resistance Testing
PI and DAR Measurement
Auto Discharge
LCD Backlight Display
754g Weight
Pros
- Professional-grade measurement capabilities including PI and DAR measurement
- High accuracy and stable performance
- Multi-functional with automatic measurement and auto discharge
- LCD backlight and alarm indicators
- Widely applicable for transformers
- motors
- cables
- and electrical appliances
- 30-day return and 6-month warranty
Cons
- Poor user manual that describes functions not covered in the product
- Unreliable and non-reproducible PIR/DAR values reported by some users
- Low resistance mode may not function properly according to some reviews
The UNI-T UT502A combines insulation testing with ground resistance measurement capability. I have seen this model used for comprehensive electrical testing where both functions save carrying multiple instruments.
PI and DAR measurement functions support trending analysis for motor and transformer insulation. The automatic measurement and auto discharge features streamline the testing process while improving safety.
The LCD backlight and alarm indicators help you work in varied lighting conditions and receive clear pass/fail feedback. The 754-gram weight makes this one of the lighter professional-grade testers available.
Applications span transformers, electric machines, cables, switches, and electrical appliances. The 30-day return window and 6-month warranty provide reasonable protection for the investment.
For whom its good
Electricians who need both insulation testing and ground resistance measurement find the combined functionality efficient. One instrument handles two common test types.
Technicians working on transformers, motors, and cables in varied environments appreciate the backlight display and alarm system that works across lighting conditions.
For whom its bad
Users who rely on accurate PI and DAR values for critical trending should verify readings carefully. Some reviews report unreliable or non-reproducible results for these functions.
Technicians who want clear, comprehensive documentation may struggle with the included manual. Reviews indicate the manual describes functions not present in the product, creating confusion.
11. Supco M501 Electronic Megohmmeter
Supco M501 Electronic Megohmmeter with Service Case, 1000 Megohms Insulation Resistance, 1,000V Test Voltage
1000V Test Voltage
1000 Megohm Range
Zone-Type Scale
Hard-Shell Case
16 oz Weight
Pros
- Simple to operate and works as stated
- Easy 2-wire hookup with alligator clips
- Tough and sturdy case that locks
- Excellent value compared to expensive name-brand units
- Comes with 2 D batteries
- Saves time on motor and equipment testing
Cons
- Requires 2 D-size batteries (not included)
- Some users reported short product lifespan
The Supco M501 takes the straightforward approach of the M500 and adds a rugged hard-shell case. I have seen technicians in maintenance shops keep this tester on the shelf for quick motor checks, and the integrated case makes storage and transport easy.
The 1000V test voltage measures insulation resistance up to 1000 megohms. The zone-type scale shows bad, caution, or good status at a glance. That simple readout works well for technicians who need quick answers without precise numerical documentation.
The hard-shell case provides protection that soft cases cannot match. When you are tossing tools in a truck or service van, the M501 survives impacts that might damage other testers. The alligator clip test leads make connections straightforward.
At 16 ounces, this tester stays light enough for extended use. The included D batteries mean you can start testing immediately in most cases, though the product description notes batteries may not be included depending on source.
For whom its good
Maintenance technicians who need occasional motor and equipment testing without the complexity of advanced testers find the M501 practical. The zone scale delivers clear answers fast.
Electricians who value rugged tool storage appreciate the built-in hard case. The integrated design eliminates the need to source a separate protective case.
For whom its bad
Users who need multiple test voltages for different applications require a more flexible tester. The single 1000V setting limits application range.
Technicians expecting long product lifespan may be disappointed. Some reviews mention short operational life, suggesting quality control variability.
12. Amprobe AMB-45 Insulation Resistance Tester
Amprobe AMB-45 Insulation Resistance Tester
3 Test Voltages: 250V/500V/1000V
Programmable Timer
PC Software Included
0.99 kg Weight
CE and EN 61010-1 Certified
Pros
- Tests insulation of wires
- cables
- transformers and electrical motors
- Complete kit includes test leads and PC software
- Selectable test voltages: 250V
- 500V and 1000V
- Programmable timer for dielectric absorption ratio test
- Sensitive Ohmmeter for motor winding resistance checking
- Lightweight at 0.99 kg
Cons
- LCD screen has fragile free-floating design that can fail with knocking or humidity
- Some units blow fuses intermittently
- Unit may stall and require resetting
The Amprobe AMB-45 brings professional-grade features including PC software for data management. I have seen this tester used in maintenance departments that need to document test results for compliance and trending.
Three test voltages cover common applications. The programmable timer supports dielectric absorption ratio testing, enabling one of the diagnostic techniques that identify insulation degradation trends.
The included PC software allows you to transfer test results to a computer for analysis and record keeping. That capability matters in facilities that maintain historical testing data for equipment reliability programs.
The sensitive ohmmeter function handles motor winding resistance checks in addition to insulation testing. At 0.99 kg, the weight stays manageable for field work across multiple locations.
For whom its good
Industrial maintenance departments that document test results for compliance programs benefit from the PC software and programmable features. The data management capability supports trending analysis.
Electricians who need both insulation testing and motor winding resistance measurement find the combined functions practical. One instrument covers both common motor diagnostic tasks.
For whom its bad
Technicians working in rough environments may encounter durability issues. Reviews mention LCD screen vulnerability and intermittent fuse problems, suggesting careful handling requirements.
Users who expect flawless operation in all conditions should consider alternatives. Some reports of stalling and required resetting indicate potential reliability concerns.
How to Choose the Right Insulation Resistance Tester
Selecting an insulation tester that matches your work requires matching features to applications. I have learned that the most expensive tester is not always the right one. The right one is the tester that does what you need without paying for capabilities you never use. For other diagnostic tools, check our guides on compression testers, diesel glow plug testers, and diesel compression testers.
Test Voltage Selection
Test voltage determines what equipment you can test properly. Higher voltage ratings require higher test voltages for valid results. IEC standards provide guidance: use test voltages at least half the equipment rated voltage for initial tests, and up to the rated voltage for comprehensive testing.
For motors and transformers rated 400V to 1000V, a 500V to 1000V tester covers the range. Control circuits and low-voltage equipment need 50V to 250V test capability. High-voltage industrial equipment may require 2500V or higher test voltages.
Resistance Measurement Range
The resistance measurement range must match your expected insulation values. Healthy insulation on motors and transformers typically reads in the megaohm to gigaohm range. Degraded insulation produces lower readings that basic testers can capture, but high-quality insulation requires extended range capability.
Testers measuring to 1000 megohms handle most motor and cable applications. Testers reaching 100GΩ or 200GΩ support high-quality insulation trending and utility-grade equipment testing.
Safety Ratings
CAT ratings indicate protection against transient overvoltages. CAT III ratings suit distribution-level wiring and three-phase distribution. CAT IV ratings provide protection for service entrance and outdoor conductors. I recommend CAT III 600V as a minimum for professional use, with CAT IV preferred for utility and outdoor applications.
Live circuit detection prevents attempting insulation tests on energized equipment, which could damage the tester and create safety hazards. Auto-discharge features dissipate stored capacitive energy after testing, reducing shock risk.
Diagnostic Features
PI and DAR functions provide insulation trending capability. These diagnostic tests measure how insulation resistance changes over time during a single test, revealing absorption characteristics that indicate insulation condition beyond a simple spot reading. For predictive maintenance programs, these features add significant value.
Data logging and connectivity options support documentation requirements. Bluetooth or USB connectivity allows result transfer to computers or mobile devices. This capability matters in facilities that maintain testing records for compliance or equipment reliability tracking.
Application-Specific Recommendations
For HVAC and compressor testing, the Supco M500 or M501 provides adequate capability at minimal cost. The 500V test voltage matches typical compressor insulation test requirements.
For electric vehicle and hybrid vehicle testing, the HIOKI IR4056 offers the speed and voltage range suited to high-voltage battery systems. The fast PASS/FAIL comparator accelerates multi-point testing.
For solar PV string testing, the KAIWEETS KE1000 delivers the 100GΩ range and 1000V test voltage needed for photovoltaic installations. The built-in DAR/PI functions support commissioning documentation.
For industrial maintenance requiring documentation, the Fluke 1587 FC or Amprobe AMB-45 provide data logging and connectivity features. These testers support compliance record-keeping requirements.
For high-voltage industrial equipment, the KAIWEETS KE2500 offers 2500V test capability and 200GΩ range. Power utility applications and substation equipment testing benefit from these extended ranges.
Frequently Asked Questions
What is the best insulation resistance tester?
The Fluke 1587 FC stands out as the best insulation resistance tester for professional use. It combines a full digital multimeter with insulation testing capability, includes PI/DAR diagnostic functions, and offers wireless data logging through Fluke Connect. For budget-conscious buyers, the Klein Tools ET600 delivers excellent value with combined multimeter and insulation tester functions at a lower price point.
Which Megger tester is best?
Among megger testers, the Fluke 1587 FC ranks as the best overall choice for its combination of insulation testing, multimeter functions, and advanced diagnostics. For dedicated insulation testing without multimeter features, the Fluke 1507 provides professional-grade reliability with NIST calibration. The Hioki IR4056 offers exceptional speed for high-volume testing applications.
What are the best-rated electrical testers?
The highest-rated electrical testers in this category include the Klein Tools ET600 with a 4.8-star rating from over 1,400 reviews, the Fluke 1587 FC with a 4.8-star rating, and the Supco M500 with a 4.6-star rating from over 1,600 reviews. These testers combine strong user feedback with proven field performance across motors, transformers, and cable testing applications.
Which megohmmeter is the best?
The best megohmmeter depends on your application. The Fluke 1587 FC leads for versatility with its 2-in-1 design. The Fluke 1507 excels for dedicated insulation testing with multiple voltage options and NIST calibration. The HIOKI IR4056 offers the fastest readings for high-volume testing. For high-voltage applications, the KAIWEETS KE2500 provides 2500V test capability unmatched by standard testers.
Conclusion
Finding the best insulation resistance testers requires matching tester capabilities to your specific applications. For professional electricians and maintenance technicians who need comprehensive functionality, the Fluke 1587 FC delivers the complete package with insulation testing, multimeter capability, PI/DAR diagnostics, and wireless data logging.
The Klein Tools ET600 provides outstanding value for technicians who want combined functions without the premium price tag. For HVAC technicians and electricians needing basic insulation testing capability, the Supco M500 offers reliable performance at an accessible price point.
Whatever your application, proper insulation testing prevents electrical failures before they happen. Choose the tester that matches your work, maintain it properly, and use it regularly. Your equipment, your safety, and your bottom line will benefit from the investment in quality diagnostic capability.
