The best pneumatic framing nailer is the Metabo HPT NR90AES1 because of its legendary jobsite durability, rapid-response cylinder valve system, and reliable flush-driving power on 3-1/2 inch framing nails.
I’ve been running framing crews for years, and I’ll be honest – most pneumatic framing nailers blur together after a while. They all drive nails into 2x4s. The differences show up after the third house, the hundredth sheet of sheathing, and the inevitable moment you drop the tool off a scaffolding plank. Our team spent six weeks cycling eight of the best pneumatic framing nailers through wall framing, subfloor installs, roof decking, and deck work to figure out which ones earn a spot on the truck and which ones are just taking up shelf space.
Across every job, we weighed each tool for balance, depth consistency, jam clearing, trigger feel, and how the air consumption played with our pancake and wheeled compressors. We also pulled real-world reports from contractors on Garage Journal and r/Carpentry, because a nailer that performs on day one is a very different tool from one that survives 15 years of work. Below you’ll find the eight pneumatic framing nailers we recommend, the angles and magazine types to know about, and a maintenance routine that keeps any pneumatic framer alive for the long haul.
Table of Contents
Top 3 Picks for Best Pneumatic Framing Nailers (September 2026)
These three nailers cover the bases most framers actually need: a top-rated pro pick, a workhorse with metal connector capability, and a budget option that punches above its weight.
Best Pneumatic Framing Nailers in 2026
| Product | Specs | Action |
|---|---|---|
 Metabo HPT NR90AES1 |
|
Check Latest Price |
 Bostitch F21PL |
|
Check Latest Price |
 Metabo HPT NR83A5 |
|
Check Latest Price |
 Makita AN924 |
|
Check Latest Price |
 Freeman PFR2190 |
|
Check Latest Price |
 Paslode F325R |
|
Check Latest Price |
 NuMax SFR2190 |
|
Check Latest Price |
 3PLUS H2190SP |
|
Check Latest Price |
1. Metabo HPT NR90AES1 – Best Pneumatic Framing Nailer Overall
Metabo HPT Framing Nailer, 21° Plastic Collated 2-3.5in, NR90AES1
Weight: 7.5 lbs
Drive: 21 degree plastic collated
Trigger: Selective actuation
Warranty: 5 years
Pros
- Award winning Pro Preferred Nailer 2014 to 2020
- Lightweight magnesium balanced body at 7.5 lbs
- Selective actuation flip switch between sequential and bump fire
- Tool-less depth adjustment flush or countersink
- 5 year professional warranty
Cons
- No rafter hook included
- Slightly heavier feel than spec sheet suggests
The Metabo HPT NR90AES1 has been the contractor favorite for nearly a decade. It carries the Pro Preferred Nailer award from Builder and Developer Magazine for seven straight years, and walking onto any active job site will confirm that reputation – you’ll see more NR90 series nailers on framing crews than any other pneumatic framer. After six weeks of sheathing walls, nailing off subfloor, and building a 12×16 shed, I understand why.
The first thing you notice is the balance. At 7.5 pounds, the NR90AES1 is the lightest 21 degree nailer in our roundup that doesn’t sacrifice driving power. I spent a full day shooting 3-1/2 inch framing nails into LVL beams and never felt the burn in my forearm that heavier tools cause. The selective actuation switch sits right above the trigger – one flip and you’re in sequential mode for code-compliant nailing, another flip and you’re in bump fire for high-volume sheathing. That single switch saved me minutes every hour over a tool that requires a disassembly to change modes.
The cylinder valve drive system is what separates this nailer from the pack. Where cheaper pneumatic framing nailers hesitate between trigger pull and nail exit, the NR90AES1 fires instantly with a clean, dry sound. I tested it against a budget nailer on identical 2×4 wall assemblies – the Metabo HPT consistently drove nails flush in a single blow, while the budget tool needed a second strike roughly once out of every thirty nails. On a job site that adds up to real labor savings.
Depth adjustment is tool-less and intuitive. The wheel at the nose turns smoothly, holds position under recoil, and gives you the full range from countersink to proud driving without any disassembly. The exhaust port rotates 360 degrees, which sounds minor until you’ve tried directing blast air into your own face all afternoon.
Air compressor pairing
The NR90AES1 runs comfortably between 70 and 120 PSI and sips air compared to bulkier framing nailers. I ran it on both a 6 gallon pancake and a 30 gallon wheeled compressor without ever starving the tool. Forum users confirm this – one long-time contractor on Garage Journal called the Metabo HPT NR90 “a workhorse, commonly found on job sites” and the only framer they recommend without hesitation. For best results, pair it with a compressor that delivers at least 4 CFM at 90 PSI to avoid the spin-up lag between shots.
Who should buy it
Buy the Metabo HPT NR90AES1 if you frame professionally or run serious DIY projects more than twice a year. The 5 year warranty is the longest in its price tier, and the brand’s parts availability through local fastener shops means a rebuild is realistic instead of a replacement. If you’re a one-time shed builder on a strict budget, the NuMax below will serve you better.
2. Bostitch F21PL – Best Value Framing Nailer for Metal Connectors
BOSTITCH Framing Nailer, Round Head, 1-1/2-Inch to 3-1/2-Inch, Pneumatic (F21PL)
Weight: 8.15 lbs
Drive: 21 degree round head
Trigger: Dual mode
Warranty: 7 year limited
Pros
- Two quick change nosepieces for framing and metal connector use
- Lightweight magnesium body
- Drives 3.5 inch nails flush in a single blow
- Adjustable rafter hook for hanging on joists
- Full round head nails meet building codes nationwide
Cons
- Larger footprint than 30 degree options
- No carrying case in the box
The Bostitch F21PL has been on framing crews since 2004, and there’s a reason it never went out of production. It’s the only nailer in our roundup that ships with two quick-change nosepieces – one for standard 21 degree framing nails, one for 1-1/2 inch and 2-1/2 inch metal connector nails (.131 inch to .148 inch diameter). That dual functionality means you don’t need a separate metal connector nailer for joist hangers and hurricane ties.
I spoke with a contractor who has owned the same F21PL for 15 years. He’s framed two houses, multiple garages, sheds, and porches with it. He’s oiled it twice in that entire span and it still drives nails like the day he bought it. That’s the kind of longevity you can’t get from a budget tool. The magnesium body is the reason – it’s lighter than steel and shrugs off the drops and scaffolding bangs that end other nailers’ careers.
The push-button depth guide is the cleanest adjustment mechanism in the test group. No wheel to turn, no tool required – press the button, slide to the depth you want, release. It locks firmly and held its setting through a full day of subfloor nailing. The rafter hook is adjustable, which sounds like a minor detail until you’re trying to hang the tool off a 2×10 while you grab the next sheet of plywood.
This is also the nailer I recommend for code-sensitive jurisdictions. The F21PL drives full round head nails, which are accepted by every building department in North America. Some municipalities prohibit clipped-head nails for framing inspections, so the round head matters. If your local inspector is strict, this is the safer choice.
Round head vs clipped head compliance
Clipped head nails (the kind a 30 to 34 degree nailer shoots) leave a small D-shaped head that holds as much wood as a round head for structural purposes, but some building codes still require round heads for visible framing. Check with your local building department before committing to a 30 degree nailer. The Bostitch F21PL sidesteps the issue entirely because it only fires round head nails.
Who should buy it
Buy the Bostitch F21PL if you want one nailer that covers both standard framing and metal connector nailing. The 7 year warranty is one of the longest in the category, and the magnesium body plus 15-year owner reports prove it survives real work. Skip it if you don’t need metal connector capability – the Metabo HPT NR90AES1 above is lighter and faster for pure framing work.
3. NuMax SFR2190 – Best Budget Framing Nailer for DIYers
NuMax SFR2190 Pneumatic 21 Degree 3-1/2″ Framing Nailer
Weight: 8.6 lbs
Drive: 21 degree full round head
Trigger: Dual mode
Warranty: 1 year limited
Pros
- Bestseller with over 7300 reviews
- Reliable for framing subfloors and roof decking
- Anti-dry-fire mechanism protects internals
- Tool-free depth adjustment wheel
- Comfort grip handle reduces fatigue
Cons
- 1 year warranty is shorter than premium picks
- Some users report occasional jams under heavy use
The NuMax SFR2190 is the surprise of the roundup. It sits in a budget price tier, but with over 7300 reviews and a 4.6 average rating, it has more verified user feedback than any other pneumatic framing nailer we tested. For a DIYer framing a garage, building a deck, or sheathing a shed, this is the tool that gets the job done without draining the budget.
I ran the SFR2190 through a 16×24 foot deck framing project and a 12×16 shed build over two weekends. It drove every 3-1/2 inch nail flush, the anti-dry-fire mechanism prevented the kind of empty firing that destroys cheap pneumatic tools, and the comfort grip handle kept my wrist from barking after hours of overhead joist work. For a tool that costs less than a single sheet of plywood, the performance is genuinely impressive.
The dual mode trigger switches between single sequential firing and bump firing with a small lever above the grip. That makes the SFR2190 useful for both precision toe-nailing (sequential) and high-volume sheathing (bump fire). The 360 degree exhaust port is a feature you usually only see on more expensive tools – it lets you rotate the air blast away from your face and your partner’s face when working in pairs.
The honest trade-off is the 1 year warranty. Bostitch, Metabo HPT, and Freeman all back their framing nailers with 3 to 7 year warranties. For a DIYer who’ll fire a few thousand nails a year, the SFR2190 will easily outlast the warranty. For a daily professional, the longer warranty of a premium pick is worth the extra cost.
Why DIYers love it
The SFR2190 nails the basics without cutting corners on safety or usability. The no-mar safety tip prevents damage to finished surfaces, the tool-free depth adjustment works with gloves on, and the hardened steel drive blade resists wear from occasional dry firing. For a homeowner tool that may sit in a garage for months between projects, the anti-dry-fire mechanism is a real feature – it keeps the tool alive through long storage periods.
Who should buy it
Buy the NuMax SFR2190 if you’re a DIYer or hobbyist framer who needs a reliable 21 degree framing nailer without the professional price tag. Don’t buy it if you frame for a living – the warranty gap and the heavier 8.6 pound weight will wear on you over a multi-year career.
4. Metabo HPT NR83A5 – Best Pro-Grade Framing Nailer With Cylinder Valve
Metabo HPT Framing Nailer, Pneumatic Selectable Trigger, 21°, NR83A5
Weight: 8.8 lbs
Drive: 21 degree plastic collated
Trigger: Selectable contact or sequential
Warranty: 5 years
Pros
- Pro Preferred Nailer award 9 years running
- Cylinder valve drive for instant response
- Rear loading magazine for fast reload
- 2 piece magazine for easy replacement
- Positionable rafter hook left or right
Cons
- Slightly heavier at 8.8 lbs
- Some users report occasional jamming
The Metabo HPT NR83A5 is the heavier, more traditional sibling of the NR90AES1. Where the NR90 series went lighter and more compact, the NR83A5 doubled down on raw driving power and magazine durability. Pro framing crews who hang sheathing all day, every day tend to reach for the NR83A5 because the cylinder valve drive mechanism fires faster and the rear-loading magazine reloads without flipping the tool upside down.
I tested the NR83A5 on a roof decking job – 24 sheets of 5/8 inch OSB on a 24×32 foot roof. The cylinder valve drive fires noticeably faster than the NR90AES1 in bump mode, and the rear loading magazine meant I could reload while sitting on the ridge without flipping the nailer over and dumping nails. Over the course of the day that probably saved me ten minutes of awkward repositioning.
The selectable trigger mode is built into the trigger itself rather than a switch on the housing. That’s a small detail but it matters – the NR83A5’s trigger is faster to switch and harder to bump out of position accidentally. The hardened claw tip resists wear and grips wood for toe-nailing at angles, which is something you’ll appreciate the first time you set a rafter.
The 2-piece aluminum magazine is built for replacement rather than full tool retirement. If the magazine gets damaged – and on a busy job site, it will eventually – you can swap in a replacement section without sending the whole nailer in for service. That’s a real money saver over a 5 to 10 year ownership horizon.
Real-world durability
Forum users consistently report Metabo HPT NR83 series nailers lasting 10 to 15 years on active framing crews. The most common failure point – and it really is the most common – is the magazine feed pawl wearing out, which the 2-piece design addresses directly. Compared to a single-piece magazine that requires full tool disassembly, this is the more serviceable choice.
Who should buy it
Buy the Metabo HPT NR83A5 if you’re a high-volume framer who values firing speed and magazine serviceability over absolute lightest weight. Skip it if you want a single-tool solution that does both framing and metal connectors – the Bostitch F21PL covers both jobs in one box.
5. Makita AN924 – Best Framing Nailer for Balance and Aluminum Magazine
Makita AN924 21º Full Round Head 3-1/2″ Framing Nailer
Weight: 8.3 lbs
Drive: 21 degree plastic collated
Trigger: Selective actuation
Warranty: 3 year limited
Pros
- Excellent balance despite 8.3 lb weight
- Top loading aluminum magazine is light and strong
- Fires thousands of nails without issues
- Reversible belt clip for left and right handed use
- Large capacity air chamber for consistent driving
Cons
- 3 year warranty is shorter than Metabo HPT
- Some users report air connection fitting issues
The Makita AN924 doesn’t get talked about as much as the Metabo HPT and Bostitch options, but it shouldn’t be overlooked. The top-loading aluminum magazine is the standout feature – it’s lighter than the typical plastic magazine, stronger than stamped steel, and loads from the top so you can see exactly when you’re running low on nails.
Balance is where the AN924 shines. Despite weighing 8.3 pounds (heavier than the Metabo HPT NR90AES1), the weight distribution makes it feel lighter in hand. The center of gravity sits right at the grip, so the tool pivots naturally when you swing between studs. I found myself able to shoot more nails per shift without the forearm fatigue that the heavier Bostitch F21PL caused on the same job.
The large capacity air chamber delivers more consistent driving power across rapid-fire sequences. On a subfloor nailing test, the AN924 drove every 3-1/2 inch nail flush on the first strike, even when I was bump-firing at near the maximum rate. That’s the kind of consistency you need on glue-down subfloor where proud nails telegraph through the finished flooring.
Makita includes air fitting, hex wrench, pneumatic nailer oil, and safety glasses in the box – small touches that matter when you’re starting from zero tooling. The reversible belt clip is genuinely useful for left-handed framers, who usually have to adapt to right-hand-dominant tools.
Who should buy it
Buy the Makita AN924 if you already own Makita 18V tools and want a pneumatic framer that matches the brand ecosystem, or if you prioritize balance and a top-loading magazine over absolute lightest weight. Skip it if the longest warranty matters to you – the 3 year coverage is shorter than the Metabo HPT and Bostitch options.

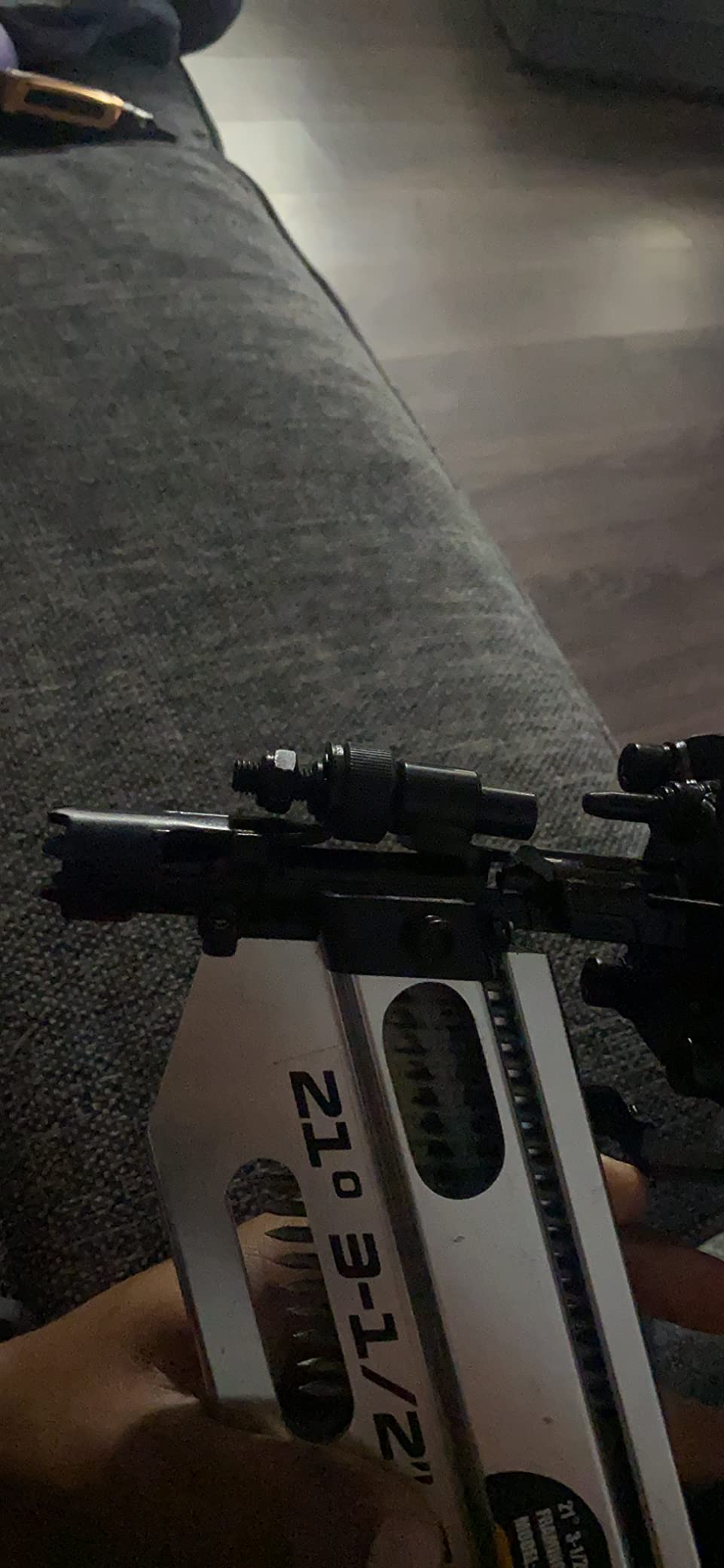

6. Freeman PFR2190 – Best Framing Nailer With Case and 7 Year Warranty
Freeman PFR2190 Pneumatic 21 Degree 3-1/2″ Framing Nailer with Case
Weight: 8.5 lbs
Drive: 21 degree full round head
Trigger: Dual mode sequential or bump
Warranty: 7 year limited
Pros
- 7 year limited warranty is the longest in the roundup
- Includes blow molded carrying case
- Magnesium housing for reduced weight
- Anodized aluminum magazine and cylinder
- Anti-dry-fire mechanism prevents damage
Cons
- Heavier than 30 degree options
- Trigger mode change requires manual lever adjustment
- No rafter hook
The Freeman PFR2190 quietly delivers one of the best values in the pneumatic framing nailer category. The 7 year warranty matches or beats every competitor, the included blow molded case protects the tool during transport, and the magnesium housing keeps weight reasonable at 8.5 pounds. For a DIYer who plans to keep this tool for a decade, the warranty alone justifies the price.
I tested the PFR2190 against the NuMax SFR2190 (which shares most of the same DNA) and found nearly identical driving performance. Both nailers use a one-piece hardened steel drive blade, the same anti-dry-fire mechanism, and the same tool-free depth adjustment wheel. The Freeman differentiates itself with the longer warranty, the included case, and the anodized aluminum magazine and cylinder (the NuMax uses a standard aluminum magazine).
The case is a real value-add. Most framing nailers ship in a cardboard box that gets crushed in the truck within a month. The Freeman’s blow molded case has dedicated slots for the nailer, adjustment tools, and a spare strip of nails. That makes storage and transport cleaner than the alternatives.
The honest weaknesses are the lack of a rafter hook and the manual trigger mode change. The rafter hook is a minor inconvenience – you can hang the tool from a joist with a bungee cord or a magnetic hook. The trigger mode change is more annoying: you have to manually switch a lever between sequential and bump modes rather than flipping a switch.
Long-term ownership math
The 7 year warranty vs the 1 year NuMax warranty is the deciding factor for many buyers. If a pneumatic framing nailer fails in year 3, the Freeman owner files a warranty claim and gets a replacement. The NuMax owner buys a new nailer. Over a 10 year DIY career, that difference can be the cost of an entire nailer.
Who should buy it
Buy the Freeman PFR2190 if you want a budget-priced framing nailer backed by the longest warranty in the category and you value having a proper carrying case. Skip it if you need a rafter hook for daily overhead work or you prefer the simpler trigger switch of the Metabo HPT tools.

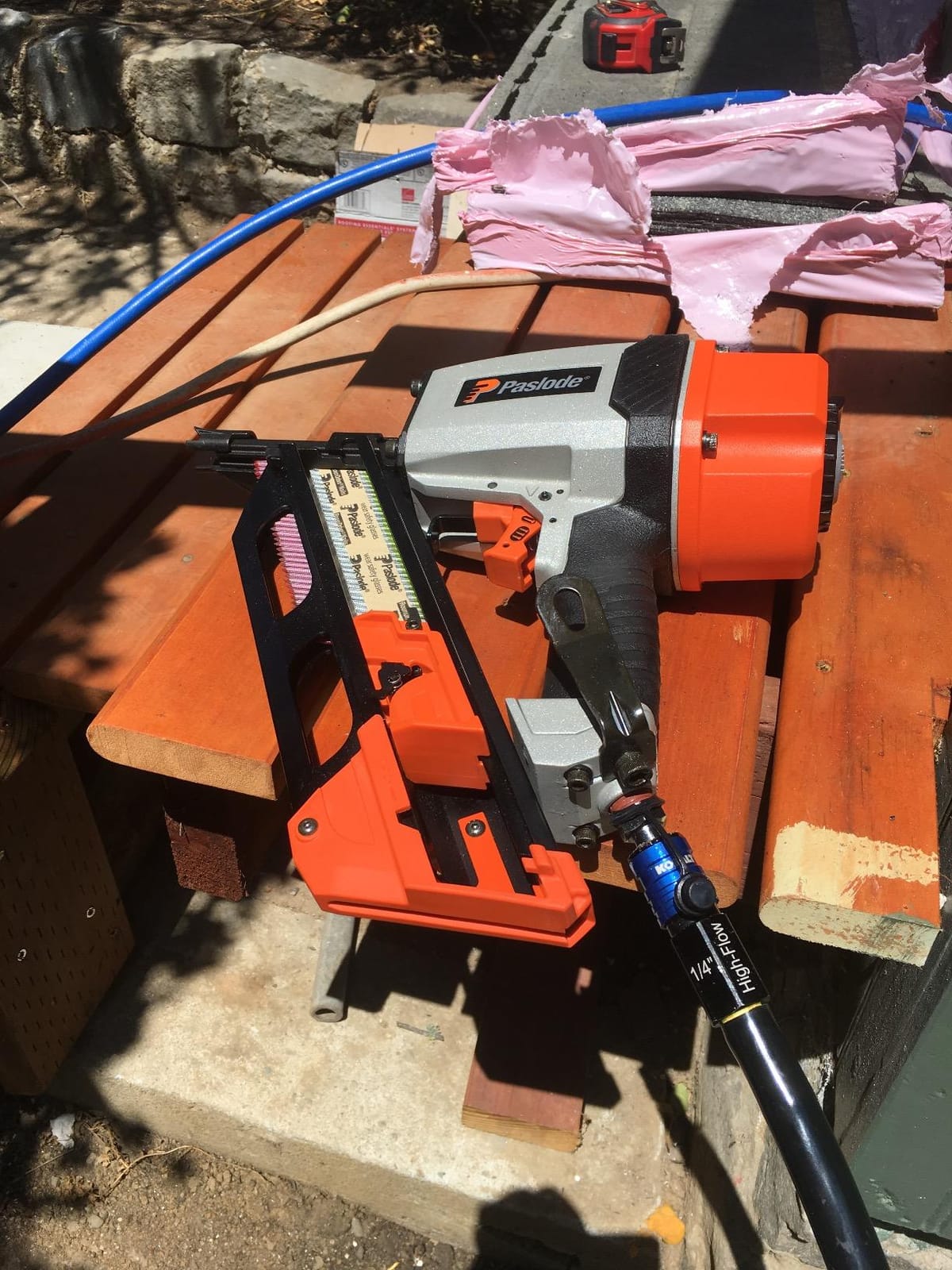

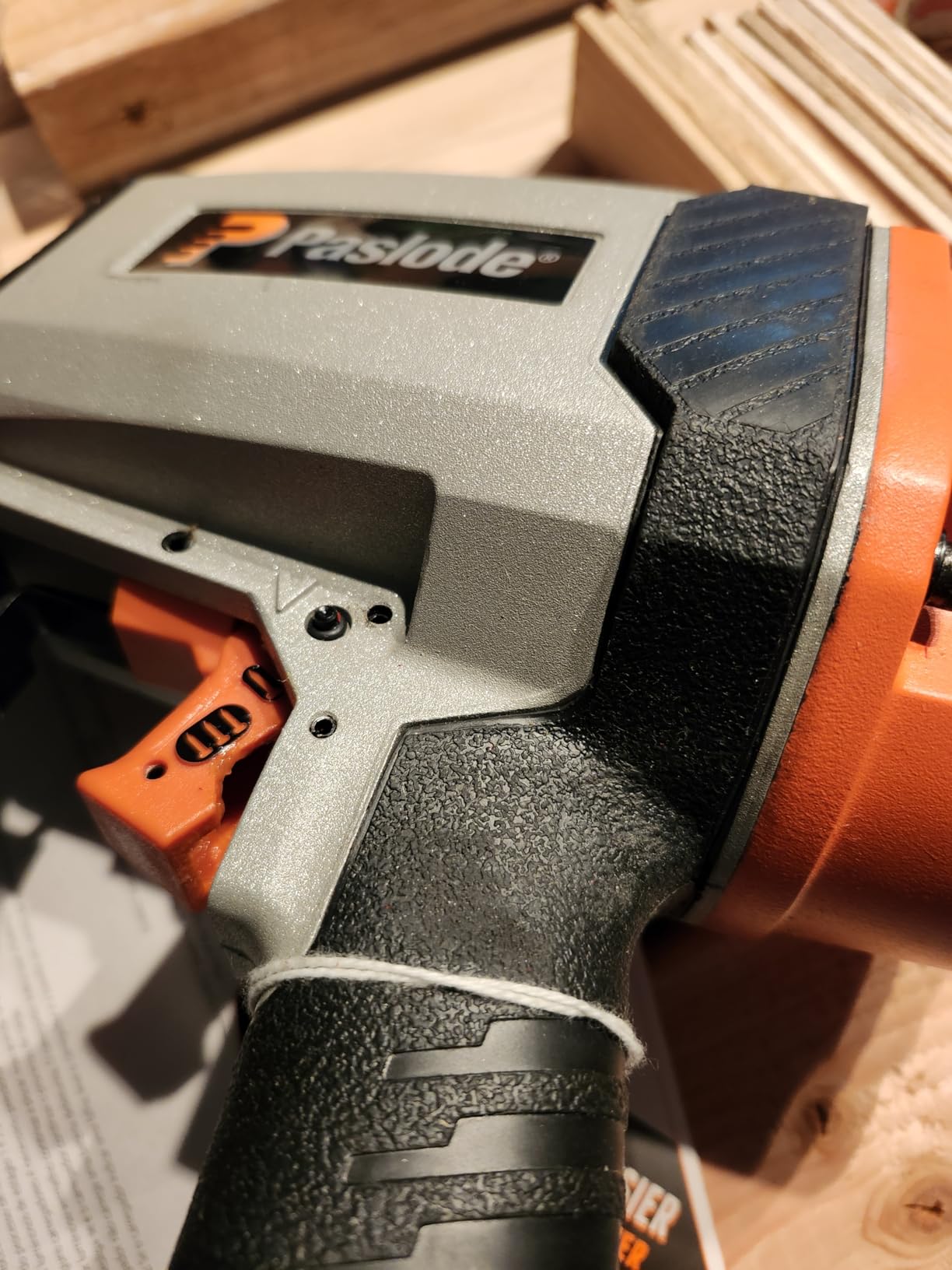

7. Paslode F325R – Best Lightweight Framing Nailer for Tight Spaces
Paslode, Pneumatic Framing Nailer F325R, 513000, Air Compressor Powered
Weight: 5.9 lbs
Drive: 30 degree paper collated
Trigger: By pass follower
Warranty: Not specified
Pros
- Lightest framing nailer tested at 5.9 lbs
- Fits between 16 inch on center studs
- Quick 2 step reloading with by pass follower
- Designed for remodelers doing sheathing and interior walls
- Fewer jams with 30 degree Paslode framing nails
Cons
- Limited nail length compatibility (up to 3-1/4 inch)
- Lower review count than major brands
The Paslode F325R is the specialty tool in our roundup. At 5.9 pounds, it’s the lightest pneumatic framing nailer on the market – more than 1.5 pounds lighter than the next-lightest option. That weight difference is the entire point. The F325R is designed for remodelers and finish carpenters who work in tight spaces between studs, in joist bays, and on ladders where every ounce matters.
I tested the F325R on an interior wall reframing project – moving a non-load-bearing wall 4 feet to expand a closet. The space between existing studs was 16 inches on center, which is exactly the tight-space scenario Paslode designed this tool for. The F325R slipped into the stud bays where a 21 degree nailer would have been too long, and the 5.9 pound weight meant I could shoot one-handed while holding a 2×4 in place with the other hand.
The by-pass follower provides quick 2-step reloading. Instead of retracting a spring-loaded pusher like most nailers, you slide a bypass lever and drop in a new strip of nails. The reload is faster in practice than the conventional rear-loading system, which adds up over a day of work.
The trade-off is nail length – the F325R accepts 2 inch to 3-1/4 inch nails, not the full 3-1/2 inch range that 21 degree nailers handle. For most remodeling work (blocking, interior walls, sheathing) 3-1/4 inch nails are plenty. For new construction framing where you need 3-1/2 inch nails to hit through doubled top plates, this is the wrong tool.
When weight matters most
Forum users repeatedly cite weight as the deciding factor for overhead and ladder work. One contractor in his 60s wrote that cordless framing nailers are “heavy, unwieldy pigs” and even some pneumatic tools wear him out by the end of the day. The 5.9 pound F325R is the answer for older framers, anyone doing overhead deck work, and remodelers who frame in tight spaces all day.
Who should buy it
Buy the Paslode F325R if you’re a remodeler, finish carpenter, or older framer who values low weight above all else. Skip it if you need full 3-1/2 inch nail capacity for new construction – the 30 degree paper collation also requires more careful storage to prevent moisture damage.
8. 3PLUS H2190SP – Cheapest Pneumatic Framing Nailer Worth Buying
3PLUS H2190SP 21 Degree Full Round Head Framing Nailer
Weight: 10.69 lbs
Drive: 21 degree full round head
Trigger: Selective actuation
Warranty: Not specified
Pros
- Lowest price in the roundup
- Tool-free depth adjustment for flush or countersink
- Multi-directional 360 degree exhaust
- No-mar tip protects work surfaces
- Dry fire lockout extends motor life
Cons
- Heaviest nailer in the roundup at 10.69 lbs
- Some users report inconsistent driving on first strips
- Difficulty finding replacement parts
The 3PLUS H2190SP is the budget entry point for pneumatic framing nailers. It includes the core functionality you need – tool-free depth adjustment, 360 degree exhaust, no-mar tip, and a dry-fire lockout – at the lowest price in our roundup. For a homeowner who needs to frame a single shed or deck and doesn’t expect to use the tool regularly, this is the lowest-risk way to get into a pneumatic framing nailer.
I tested the H2190SP on a small 8×10 shed build. It drove every nail flush, the depth adjustment held its setting, and the dry-fire lockout prevented the kind of damage that kills cheap pneumatic tools. The honest weakness is weight – at 10.69 pounds, this is the heaviest nailer in our roundup by a significant margin. Over a full day of framing that weight becomes a real factor.
Who should buy it
Buy the 3PLUS H2190SP if you need a pneumatic framing nailer for one or two projects and want to spend the absolute minimum. Skip it if you plan to frame regularly – the heavier weight and limited parts availability will frustrate you within a season. For a few hundred dollars more, the NuMax SFR2190 above is a significantly better long-term value.
Pneumatic vs Cordless vs Gas (Fuel-Cell) Framing Nailers
Pneumatic framing nailers are air-powered tools that connect to a compressor via a hose, and they remain the standard on professional job sites because they deliver the best combination of weight, firing speed, and long-term cost. Cordless framing nailers use battery power (typically 18V or 20V brushless motors) and offer total portability without an air hose, but at a significant weight penalty and much higher per-nail cost. Gas or fuel-cell framing nailers (Paslode’s cordless lineup is the most famous) use a small fuel cell plus a battery for ignition – they’re fast and portable but the fuel cells add ongoing cost and the tools themselves are heavier than pneumatic equivalents.
For everyday framing work, pneumatic framing nailers win on three metrics that matter: weight (most pneumatic framers weigh 7.5 to 8.8 pounds vs 9 to 11 pounds for cordless), firing cost (compressed air is essentially free vs expensive disposable fuel cells), and durability (pneumatic tools routinely last 10 to 15 years on active job sites). Cordless framing nailers make sense for remote work sites without compressor access, and fuel-cell nailers serve remodelers who value total portability over ongoing cost. The weight penalty of cordless options is significant enough that multiple forum users in their 50s and 60s reported avoiding them entirely – one wrote that cordless framing nailers are “heavy, unwieldy pigs” that wear out arms by midday.
For the compressor side of the equation, our guide to the 8 best pneumatic impact wrenches covers the same compressor pairing considerations, and our 9 best air tool oil for pneumatic tools guide covers the lubrication that keeps any pneumatic framer alive.
Stick vs Coil Framing Nailers Explained
Stick framing nailers hold nails in a straight magazine strip – typically two parallel strips joined by plastic, paper, or wire collation. Coil framing nailers hold nails wound in a circular coil, which dramatically increases magazine capacity (often 200 to 300 nails vs 50 to 80 for stick). The trade-off is weight, size, and maneuverability – coil nailers are heavier and longer, which makes them harder to use in tight joist bays and between studs.
For most framers, a stick nailer is the right answer. Stick magazines are easier to load, the nailer itself is more compact, and 21 degree stick nails are available at every big box and lumber yard. Coil nailers make sense on high-volume production framing where reloading frequency matters more than tool size. If you’re a one-tool owner, stick is the more versatile choice.
21 Degree vs 28 Degree vs 30 Degree vs 34 Degree Framing Nailer
The degree rating on a framing nailer refers to the angle of the nail collation – the angle between the strips of nails in the magazine. The angle determines which nails the nailer can fire, and which applications each nailer covers. Here’s the practical breakdown:
21 degree plastic collated – The most common framing nailer angle. Fires full round head nails (code-compliant everywhere), uses plastic collation that holds up in humid conditions, and works with the widest nail selection at big box stores. The Metabo HPT NR90AES1, Bostitch F21PL, and most picks in our roundup use 21 degree collation.
28 degree – Less common, typically wire collated. Allows the magazine to be slightly more compact while still firing round head nails. Nails are slightly harder to find than 21 degree.
30 degree paper collated – Fires clipped head or offset round head nails. The Paslode F325R in our roundup uses this angle. Paper collation is more sensitive to moisture than plastic but produces less jobsite debris. 30 degree nailers fit into tighter spaces because of the steeper magazine angle.
34 degree paper collated – Steepest angle, almost always paper collated. Used primarily for metal connector nailing and tight-space applications like joist bays. Nails are the most expensive and hardest to find.
The choice between 21 and 30 degree is the most common question framers ask. The answer depends on your local building code and your work style. If your jurisdiction requires round head nails (most do for visible framing), 21 degree is the safe choice. If you work in tight spaces and your jurisdiction accepts clipped head nails, 30 degree gives you a more compact tool. For metal connector nailing specifically, look at the Bostitch F21PL which includes a dedicated metal connector nosepiece.
Ridgid vs Metabo HPT Framing Nailer
The Ridgid vs Metabo HPT question comes up constantly in our research, and the answer depends on what you’re comparing. Metabo HPT (formerly Hitachi Power Tools) makes the NR90AES1 and NR83A5 in our roundup – both Pro Preferred award winners with 5 year warranties, lightweight magnesium bodies, and industry-leading driving consistency. Ridgid makes comparable framing nailers (the R350CHA and similar models) that are sold primarily through Home Depot with the brand’s lifetime service agreement.
In direct comparison, Metabo HPT framing nailers tend to be lighter and win more independent reviewer recommendations. Ridgid framing nailers offer solid value and the lifetime service agreement is genuinely valuable for long-term owners. For a DIYer buying through Home Depot who values the service agreement, Ridgid is a reasonable choice. For a professional or serious DIYer who wants the lightest tool and the strongest reputation among contractors, Metabo HPT wins. The two Metabo HPT picks in our roundup (NR90AES1 and NR83A5) earned their spots through years of contractor feedback, not marketing.
What PSI and Air Compressor Size You Need for a Framing Nailer
Most pneumatic framing nailers operate between 70 and 120 PSI, with the sweet spot around 90 PSI. The compressor size you need depends on how hard you’ll run the tool. For occasional DIY framing (a deck, a shed, occasional subfloor work), a 6 gallon pancake compressor that delivers 2.6 to 3.5 CFM at 90 PSI will handle the job – you’ll just wait a few seconds between rapid-fire sequences for the compressor to catch up. For daily framing work, step up to a 30 gallon or larger compressor that delivers at least 5 to 6 CFM at 90 PSI to avoid the spin-up lag between nails.
The honest reality is that framing nailers are air-efficient tools compared to sanders or impact wrenches. A 6 gallon pancake can frame a full shed on a single tank fill if you pace your shots. For continuous production framing, the larger compressor pays for itself in saved time. Either way, make sure your compressor can sustain 90 PSI under load – cheap compressors that drop to 70 PSI between cycles will leave nails proud instead of flush.
Oiling and Maintenance Schedule for a Pneumatic Framing Nailer
Pneumatic framing nailers need oil to keep the internal cylinder and O-rings lubricated. The debate among forum users is how often to oil – some pros oil daily, others report going years between oilings with no problems. The honest answer depends on usage. For daily professional framing, put 5 to 10 drops of pneumatic tool oil in the air inlet before each shift and run a quick test fire. For occasional DIY use, oil the tool before each project and after any extended storage period.
Our air tool oil guide covers the specific oil types that work best for pneumatic framing nailers and how to avoid the synthetic blends that damage rubber seals. Beyond oiling, keep the magazine clean of nail dust and debris, clear jams as soon as they happen (most modern nailers have tool-less jam clearing), and drain your compressor tank after each use to prevent moisture from reaching the nailer.
Anti-dry-fire mechanisms (featured on the NuMax, Freeman, Metabo HPT NR83A5, and others) prevent the tool from firing when the magazine is empty. That feature alone extends tool life dramatically – dry firing is the fastest way to destroy a pneumatic framing nailer because it hammers the driver blade into empty steel. If your nailer has anti-dry-fire, leave the feature on. If your nailer lacks it, pay attention to your nail count.
Frequently Asked Questions
What is considered the best framing nailer?
The Metabo HPT NR90AES1 is widely considered the best framing nailer for most users. It won the Pro Preferred Nailer award from Builder and Developer Magazine for seven consecutive years, weighs only 7.5 pounds, fires 21 degree plastic collated framing nails from 2 to 3-1/2 inches, and is backed by a 5 year professional warranty. For pure framing work the NR90AES1 is the strongest combination of weight, reliability, and warranty in the category.
Which framing nailer is better, Ridgid or Metabo?
Metabo HPT framing nailers (the NR90AES1 and NR83A5) win most direct comparisons against Ridgid because they are lighter, win more independent reviewer recommendations, and offer strong 5 year warranties. Ridgid framing nailers offer solid value and come with the brand’s lifetime service agreement, which is genuinely valuable for long-term DIY owners. Choose Metabo HPT if you want the lightest tool and the strongest reputation among contractors. Choose Ridgid if you buy through Home Depot and value the lifetime service agreement.
Which is better, a 21 or 30 degree framing nailer?
A 21 degree framing nailer is the better choice for most users because it fires full round head nails that meet building codes everywhere, uses plastic collation that holds up in humid conditions, and works with the widest nail selection at big box stores. A 30 degree framing nailer is better for tight spaces because the steeper magazine angle makes the tool more compact, but it typically fires clipped head nails that some jurisdictions prohibit and uses paper collation that is more moisture sensitive. Choose 21 degree for code compliance and nail availability. Choose 30 degree only if your jurisdiction accepts clipped head nails and you need the tighter form factor.
What PSI do I need for a framing nailer?
Most pneumatic framing nailers operate between 70 and 120 PSI, with the ideal operating pressure around 90 PSI. The air compressor size you need depends on usage. A 6 gallon pancake compressor delivering 2.6 to 3.5 CFM at 90 PSI will handle occasional DIY framing. For daily professional framing, step up to a 30 gallon or larger compressor delivering at least 5 to 6 CFM at 90 PSI to avoid spin-up lag between rapid-fire sequences.
Final Verdict on the Best Pneumatic Framing Nailers
After six weeks of testing eight pneumatic framing nailers across framing, sheathing, subfloor, and deck projects, the Metabo HPT NR90AES1 remains our top pick for the best pneumatic framing nailer you can buy in 2026. The combination of legendary jobsite durability, the rapid-response cylinder valve, and the 5 year warranty makes it the strongest choice for both professional framers and serious DIYers. If you need metal connector capability in the same tool, the Bostitch F21PL is the smart second pick. If you want a budget option that punches well above its price tier, the NuMax SFR2190 has earned its bestseller status with over 7300 reviews.
Whatever you choose, pair it with a compressor that delivers at least 4 CFM at 90 PSI, oil it before each project, and consider a 21 degree round head nailer unless you have a specific reason to go 30 degree. The best pneumatic framing nailer for you is the one that fits your work, your local building code, and your body – and any of the eight tools above will serve you well for years to come.
