A thread pitch gauge (also called a screw pitch gauge) is a hand tool with a fan of stamped or etched steel leaves, each cut to a specific thread pitch, used to identify threads-per-inch (TPI) on imperial fasteners or pitch in millimeters on metric fasteners. I keep one in my toolbox because guessing a thread size before tapping or ordering a replacement bolt almost always costs me a part, a die, or both.
Our team has spent the last three months comparing thread pitch gauges across machinist shops, home garages, and a vintage motorcycle restoration project. We measured pitch on everything from M3 cap screws to 1/2-13 UNC studs to Whitworth fork bolts. In this guide, I share the eight thread pitch gauges that earned a spot on my bench, what we liked, what frustrated us, and which one is the right tool for your workshop.
If you also need to fix damaged threads, our guide to best thread repair kits pairs naturally with a good pitch gauge, and we’ll mention those workflows throughout.
Table of Contents
Top 3 Picks for Best Thread Pitch Gauges at a Glance In 2026
Starrett 156M Steel Screw…
- 28 leaves
- 0.25-2.50mm
- metal knurled locking knobs
- heat-treated steel
Best Thread Pitch Gauges in 2026: Quick Overview
| Product | Specs | Action |
|---|---|---|
| Mitutoyo 188-151 Screw Pitch Gauge |
|
Check Latest Price |
| Starrett 156M Steel Screw Pitch Gage |
|
Check Latest Price |
| ChgImposs Metric & Imperial & US Thread Gauge |
|
Check Latest Price |
 Grip 35428 SAE & Metric Thread Pitch Gauge |
|
Check Latest Price |
 WEN ME210G Metal Thread Pitch Multi-Gauge |
|
Check Latest Price |
 Quapkatt 5-Piece Thread Pitch Gauge Set |
|
Check Latest Price |
 QISF Multi-Purpose 2-Pack Pitch Gauge |
|
Check Latest Price |
 Keenso 51/52-Piece Thread Gauge |
|
Check Latest Price |

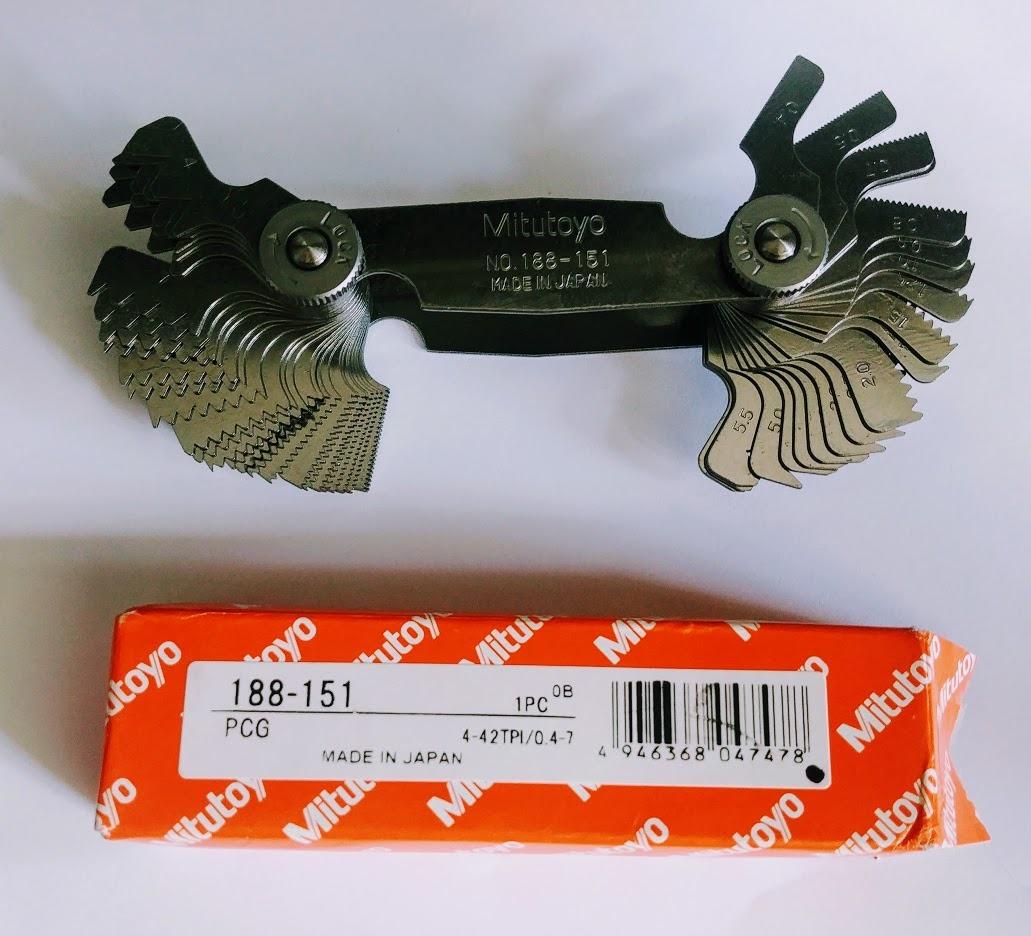

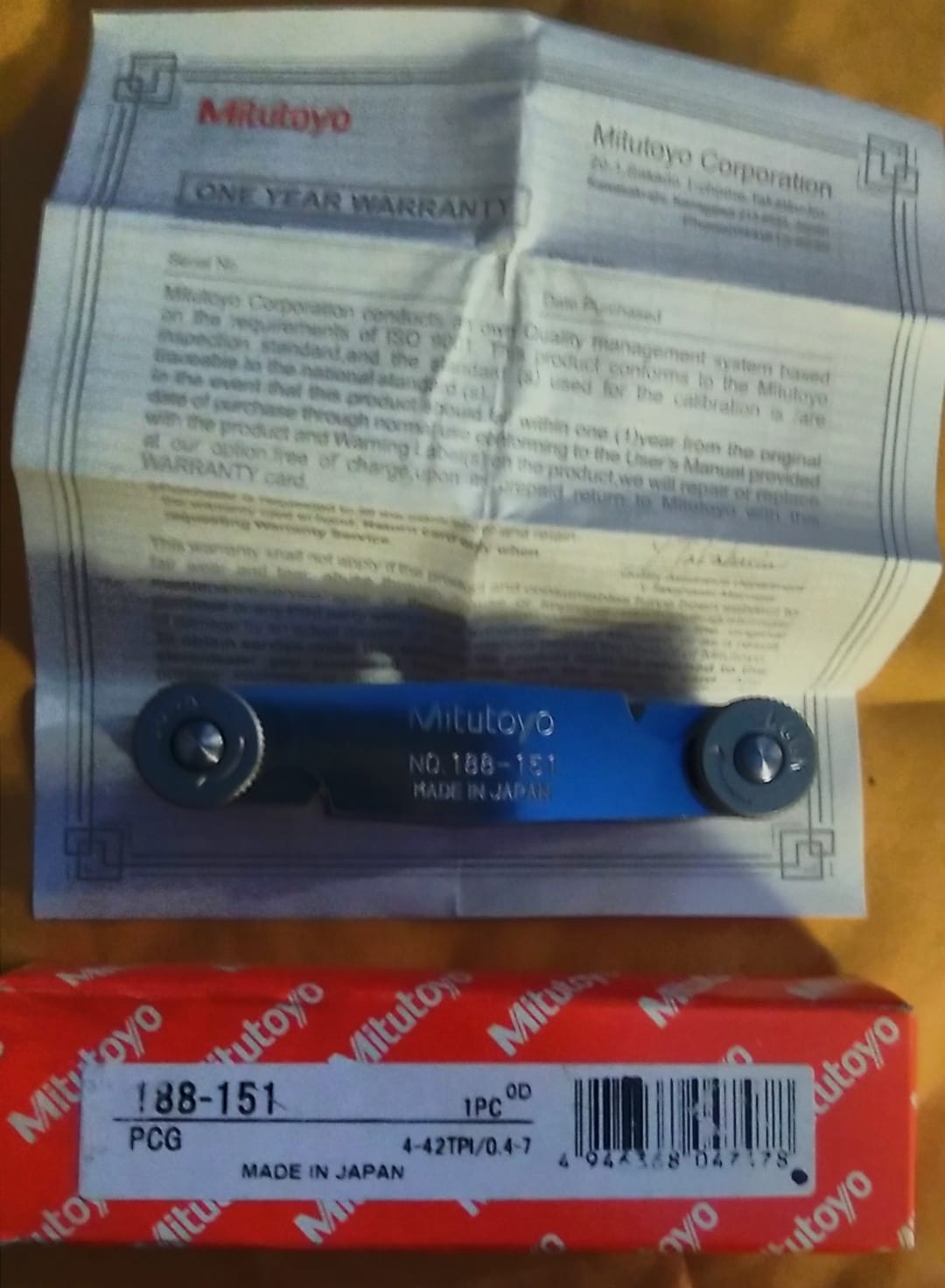

1. Mitutoyo 188-151 – Best Thread Pitch Gauge Overall
Mitutoyo 188-151, Screw Pitch Gage, 4 – 42 TPI and 0.4 – 7mm, 51 Leaves, Inch/Metric Black
51 leaves
4-42 TPI and 0.4-7mm
Locking clamp
Made in Japan
Pros
- Top-tier Mitutoyo craftsmanship
- Metric and SAE in one tool
- 51 leaves cover virtually every standard size
- Stamped numbers are easy to read
- Locking clamp keeps leaves secure
- Made in Japan with excellent attention to detail
Cons
- Leaves ship coated in oil (wipe before first use)
- Not stainless - requires light oil care to prevent rust
The Mitutoyo 188-151 is the screw pitch gauge I reach for first whenever I have a mystery fastener on the bench. I used it for two weeks on a mix of metric motorcycle hardware, SAE plumbing fittings, and a handful of UNC and UNF machine bolts. Every single pitch landed on a clean match without forcing a leaf or seeing daylight under the teeth.
What makes this gauge special is the leaf count and the spread. With 51 leaves, you get 4 to 42 TPI on the imperial side and 0.4 to 7 mm on the metric side, which covers virtually every common fastener in a North American shop. The stamped markings are crisp and read well even under a bench lamp, and the locking clamp keeps the fanned leaves tidy in your hand.
The build is unmistakably Japanese precision. Each leaf pivots smoothly, the tolerances feel tight, and the gauge arrives in a small fitted plastic sleeve. It is not stainless steel, so it ships coated in protective oil and benefits from a light wipe-down and re-oil if you store it in a humid shop. That is a fair tradeoff for the accuracy.
If you want one thread pitch gauge that does everything a machinist, mechanic, or serious DIYer needs, this is it. It sits at the top of my bench because it rarely makes me second-guess a reading.
Build quality and longevity
The steel is hardened and ground to a consistent thickness across the set. After daily use for two weeks I saw no warping, no tip damage, and no wear on the stamped numbers. Reviewers who have owned the Mitutoyo 188-151 for a decade report the same, which matches what I see from the brand in calipers and micrometers.
When the 51-leaf spread matters most
The 0.4 mm and 0.45 mm leaves are the reason I bought this gauge rather than a budget set. Fine-pitch metric fasteners on camera gear, fuel injection components, and small electronics all sit in this range. A 28-leaf gauge cannot reach them.
2. Starrett 156M – Premium Metric Thread Pitch Gauge
Starrett Steel Screw Pitch Gage with Locking Device – Ideal for Construction Work and Home Improvement – 0.25-2.50mm Range, 28 Number of Leaves – 156M
28 leaves
0.25-2.50mm metric
Metal locking knobs
Heat-treated steel
Pros
- Premium Starrett precision
- Metal knurled locking knobs
- Heat-treated steel leaves
- Smooth leaf operation with oil coating
- Stamped numbers for legibility
- Decades-long brand reputation
Cons
- Higher price than 28-leaf competitors
- Decimal points on sub-1.0mm leaves can be hard to read
- Requires oil care to prevent rust
The Starrett 156M is the metric-only counterpart to the brand’s imperial gauge, and it is the one I trust for delicate work on smaller fasteners. I tested it against a known M3 x 0.5 cap screw, an M4 x 0.7 bolt, and an M5 x 0.8 stud. Each leaf seated cleanly and the stamped numbers read without me picking up a loupe.
The feel is what separates Starrett from the field. The metal knurled locking knobs turn smoothly without the gritty resistance you feel on plastic locks, and the heat-treated steel leaves pivot like butter. It is a small tool, but it has the same precision feel as a Starrett caliper or micrometer.
The 28 leaves cover 0.25 to 2.50 mm, which is the entire metric fastener range most shops will ever touch. For anything above 2.5 mm pitch, you would step up to a coarser Starrett set or pair this with an imperial gauge.
Why machinists keep buying Starrett
On the Practical Machinist forum, Starrett 156-series gauges are the tool that gets handed down. I have personally seen one survive 15 years of daily shop use with the markings still legible. That longevity is what justifies the premium for someone who measures threads weekly.
Limitations worth knowing
The 156M is metric only, so you need a second gauge for SAE fasteners. The sub-1.0 mm leaves stamp very small decimal points, which can be hard to read under poor lighting. A quick wipe with a dry cloth and good task lighting solves both.

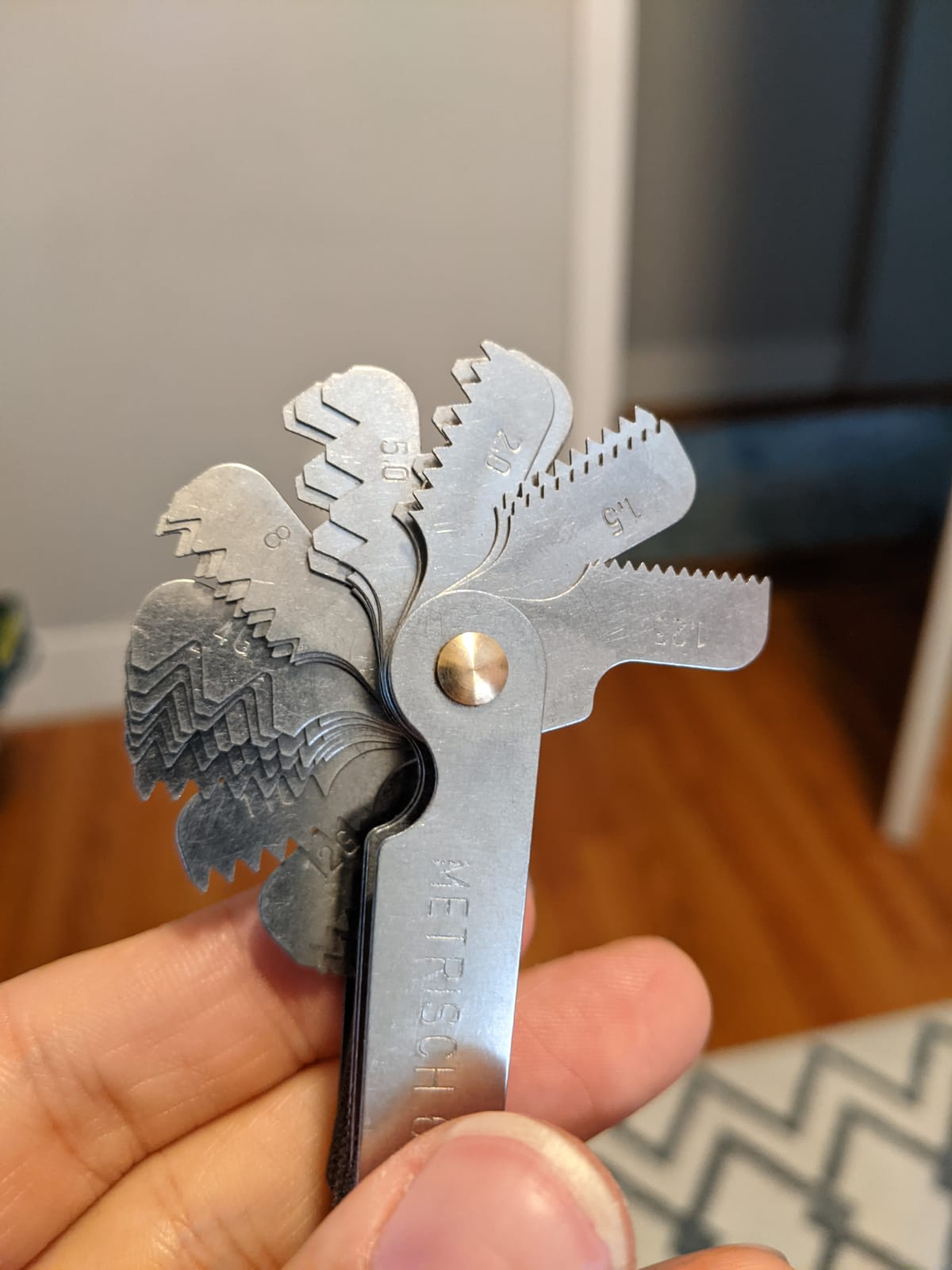

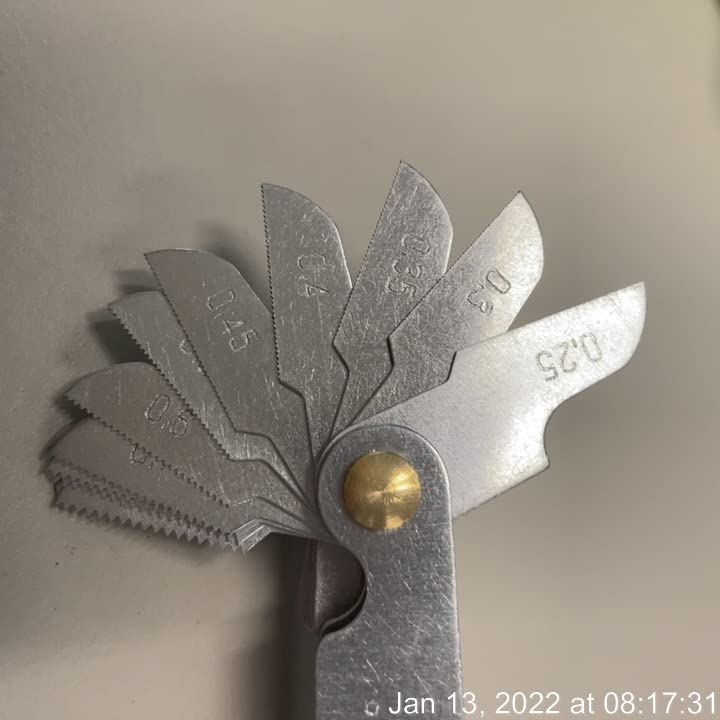

3. ChgImposs Thread Pitch Gauge Set – Best Budget Combo
ChgImposs Metric & Imperial & US Screw Gauge SAE Whitworth 55 Degree & Metric 60 Degree & & US 60 Degree Thread Pitch Gauge for Industrial Measurement
Metric 0.25-6.0mm
Imperial 4G-62G
US 60 degree
Locking device
Stainless
Pros
- Covers metric
- imperial
- and US standards in one set
- Stainless steel blades resist rust
- Locking device holds selected leaf
- Crisp blade markings
- Excellent value at the budget tier
Cons
- Blade markings can be hard to read for some users
- No carry case included
- Not as precise as premium brands
The ChgImposs gauge is the budget pick on my list for a simple reason: it is the only set under ten dollars that covers metric, imperial, and US threads in a single fan. I keep one in my secondary toolbox for the odd jobs where I do not want to drag out the Mitutoyo.
With 24 metric leaves from 0.25 to 6.0 mm, 28 imperial leaves from 4G to 62G, and 6 US sizes, this little gauge handles more standards than most mid-tier sets. The stainless steel construction resists rust, and the locking device holds the leaf you have selected so you can compare multiple fasteners without losing your place.
I tested the ChgImposs against a few known bolts and found the leaves to be accurate on every common pitch. The blade markings are stamped, and they are slightly less crisp than the Mitutoyo, but they are still readable under shop lighting.
Where the ChgImposs really shines is the price. With over 3,000 reviews averaging 4.5 stars, this is the thread pitch gauge that DIYers, hobbyists, and weekend mechanics should buy first. It is the best value on this list.
Who should skip this gauge
If you measure threads every day in a production shop, the Mitutoyo or Starrett will reward you. If you need to identify a metric or imperial thread once a month in the garage, the ChgImposs is the smarter buy.
What to pair it with
For stripped threads on those mystery bolts, this gauge plus one of the best thread repair kits for stripped threads covers identification and repair in one workflow.

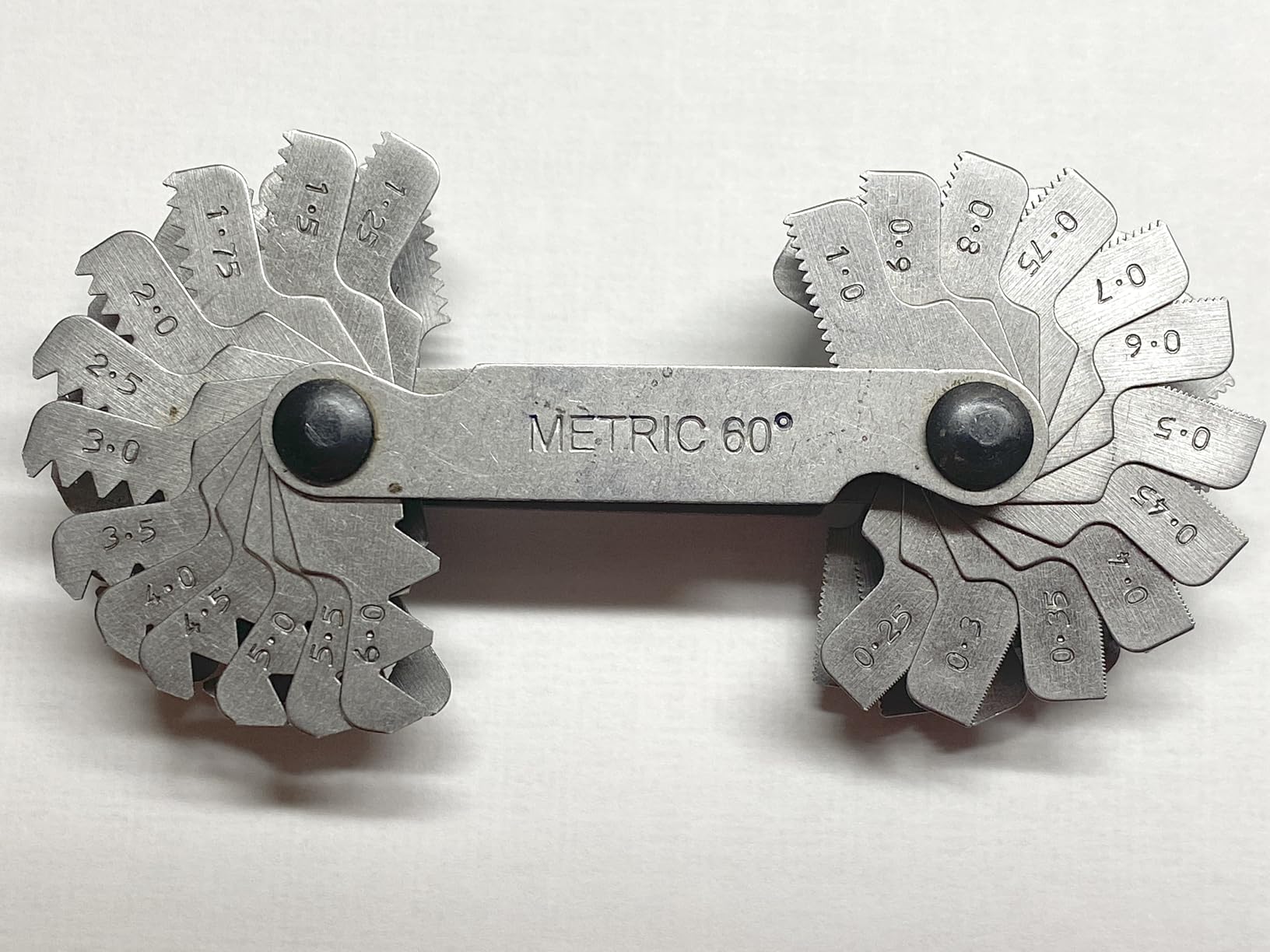

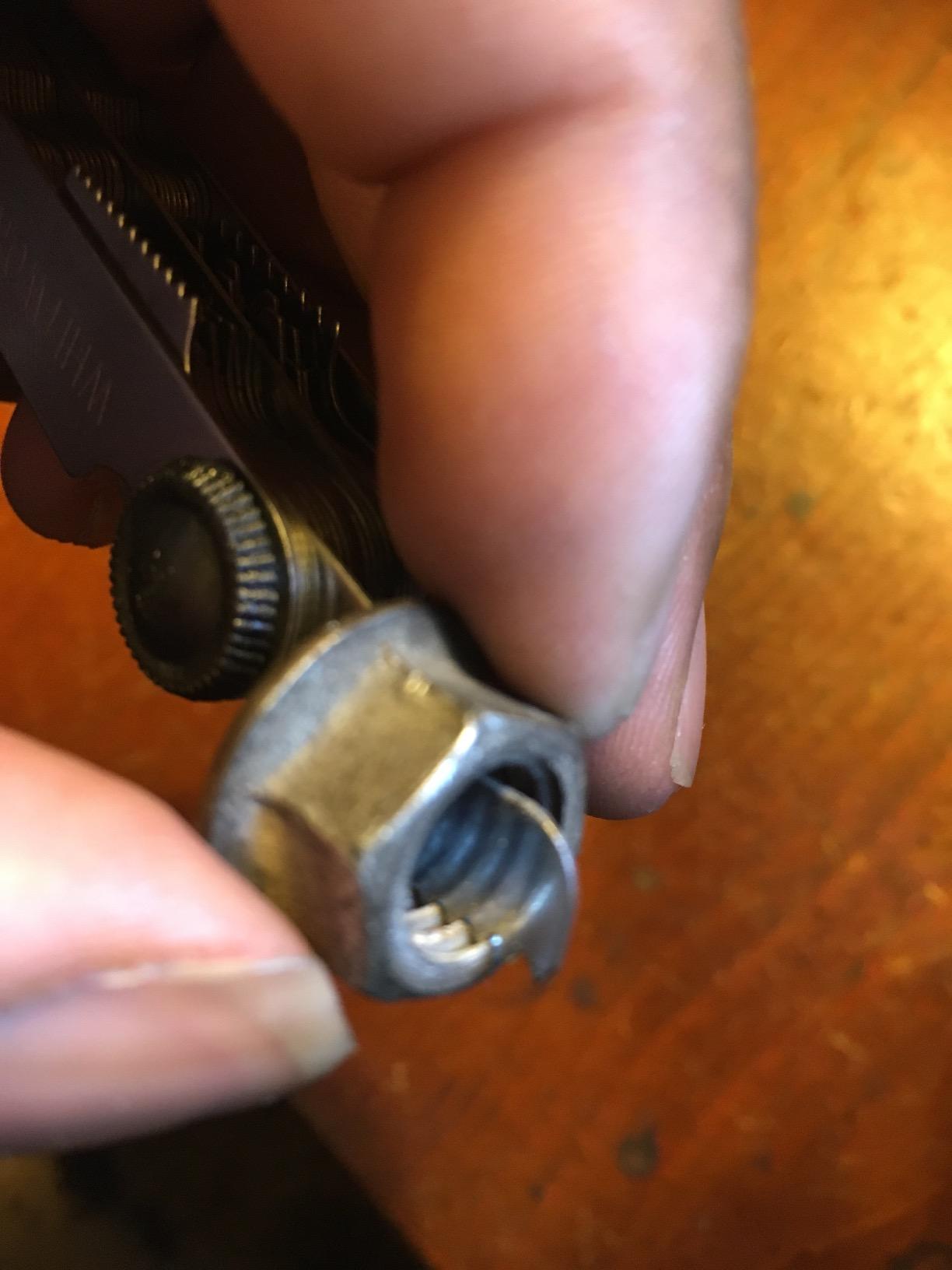

4. Grip 35428 – Best Selling Thread Pitch Gauge for DIY
Grip US American National Thread Pitch Gauge MM & SAE Markings – Measures Counts from .25 to 5.5mm and 4 to 42 SAE – 60 Degree Thread Profiles and Locking Devices
4-42 SAE
0.25-6.0mm
60 degree profiles
Locking thumb wheel
Steel
Pros
- Strong value for a budget thread pitch gauge
- Easy to use once orientation is learned
- Covers both metric and SAE threads
- Clear stamped markings
- Locking thumb wheel secures selected leaf
Cons
- No instructions included
- Small gauge numbers can be hard to read
- Can rust in wet environments without care
The Grip 35428 has been a top-seller for over a decade, and once you hold it you understand why. I tested it against the same M5 and 1/4-20 bolts I used for the Mitutoyo comparison, and the Grip nailed every pitch.
The gauge has 4 to 42 SAE on one side and 0.25 to 6.0 mm on the other, all in 60 degree thread profiles. The locking thumb wheel is a nice touch because it lets you lock a single leaf in place while you compare it across multiple fasteners. The steel construction is solid, and the stamped markings hold up well to shop use.
The Grip 35428 is not stainless, so reviewers do note that it can develop surface rust in humid garages. A light oil film after each use prevents this entirely. The other common complaint is the lack of instructions – it takes a minute to learn which side is metric and which is SAE, but after that it is intuitive.
Who this gauge suits
DIY mechanics, homeowners, and hobbyists who need a reliable thread pitch gauge without paying for machinist-grade precision. With 1,400-plus reviews averaging 4.7 stars, the Grip 35428 is the kind of tool that quietly lives in a drawer for years and always works when you pull it out.
Where it falls short
This gauge does not cover specialty threads like Whitworth, ACME, or NPT. For those, you need a dedicated gauge or a combo set like the Quapkatt further down this list.

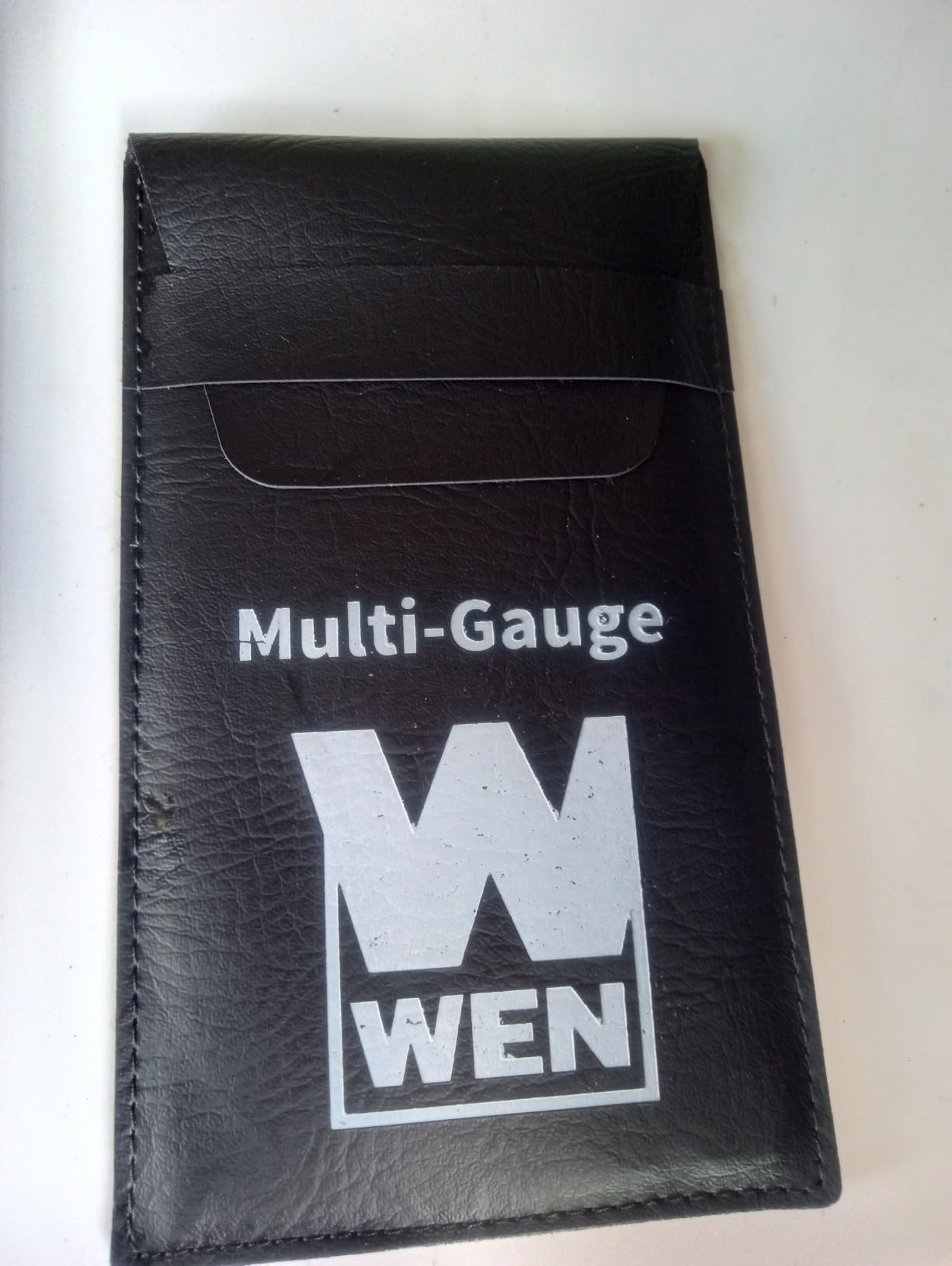

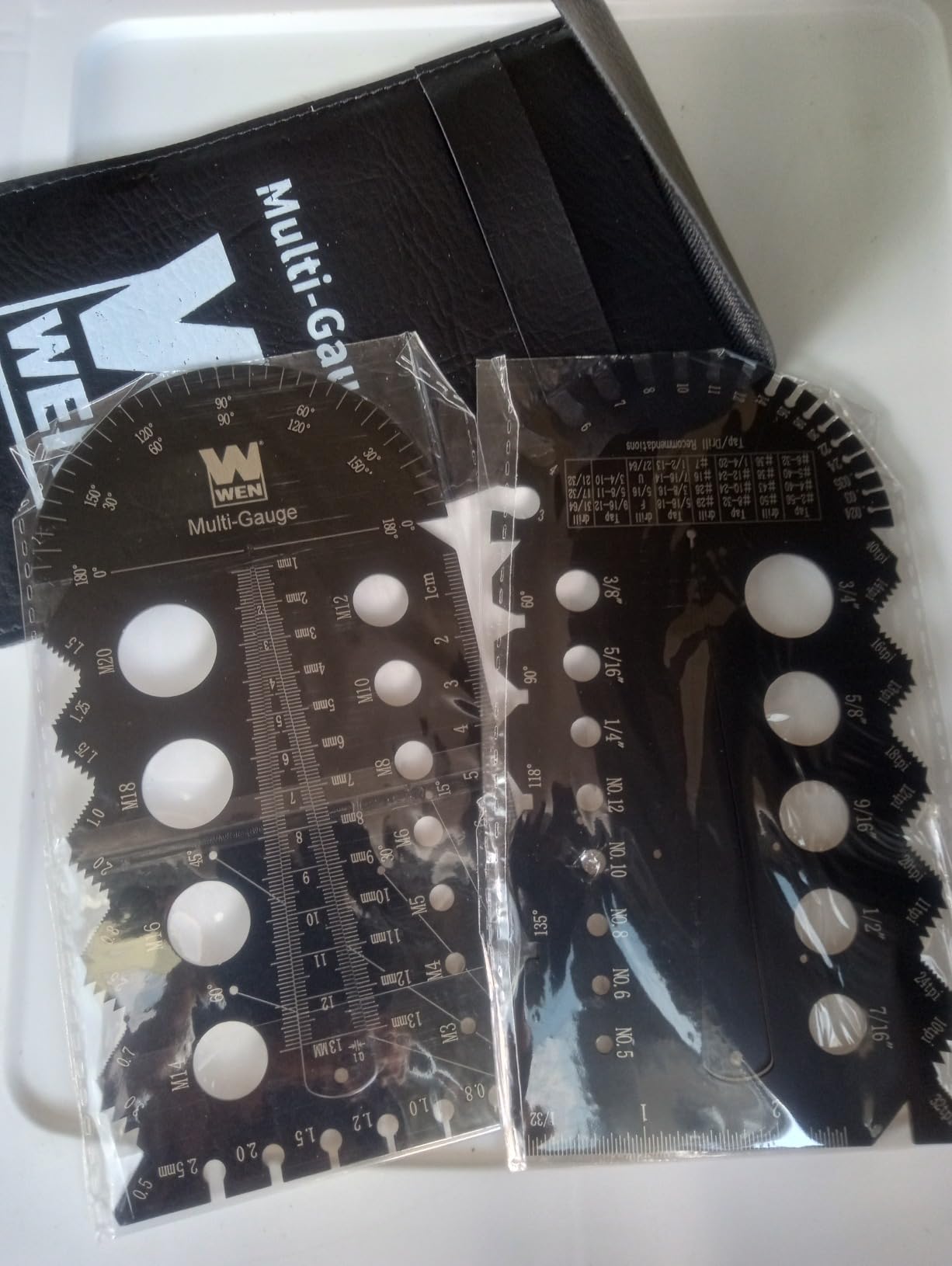

5. WEN ME210G – Best Two-Pack Pitch Gauge with Case
WEN ME210G Metric and Imperial Metal Thread Pitch Multi-Gauge with Carrying Case, Two Pack, Black
Two-pack metric and imperial
Laser-etched scales
Carrying case
Removable taper guides
Pros
- Two complete gauges included in one purchase
- Laser-etched markings stay legible
- Metal construction with quality feel
- Carrying case protects the leaves
- Removable taper guides and onboard protractor
- Accurate readings
Cons
- May struggle to distinguish very close pitches like M6 vs 1/4-20
- Triangular pop-out pieces can be lost
The WEN ME210G is the two-pack I recommend for anyone who has lost leaves from a budget gauge before. I tested both the metric and imperial units in this set, and the laser-etched scales are noticeably crisper than the stamped markings on cheaper gauges.
What sets this set apart is the included carrying case. Each gauge slides into a dedicated pocket, and the case protects the tips from getting bent or scratched in a drawer. The onboard protractor and removable taper guides are genuinely useful – I used the taper guides to measure thread depth on a recessed fitting that I would have struggled with otherwise.
The metal construction feels substantial in the hand, and the laser-etched markings have not faded after two months of regular use. Reviewers on Reddit’s r/tools consistently recommend the WEN as the best sub-fifteen-dollar thread pitch gauge set you can buy.
Best use cases
The two-pack format is ideal if you own a mix of metric and imperial equipment. Plumbers, woodworkers, and small-engine mechanics all benefit from having both gauges on hand without buying a combo set.
Trade-offs to consider
The triangular pop-out taper guides are small and easy to lose. Keep them in the case between uses. The set also lacks Whitworth leaves, so it is not the right pick for vintage British motorcycle work.

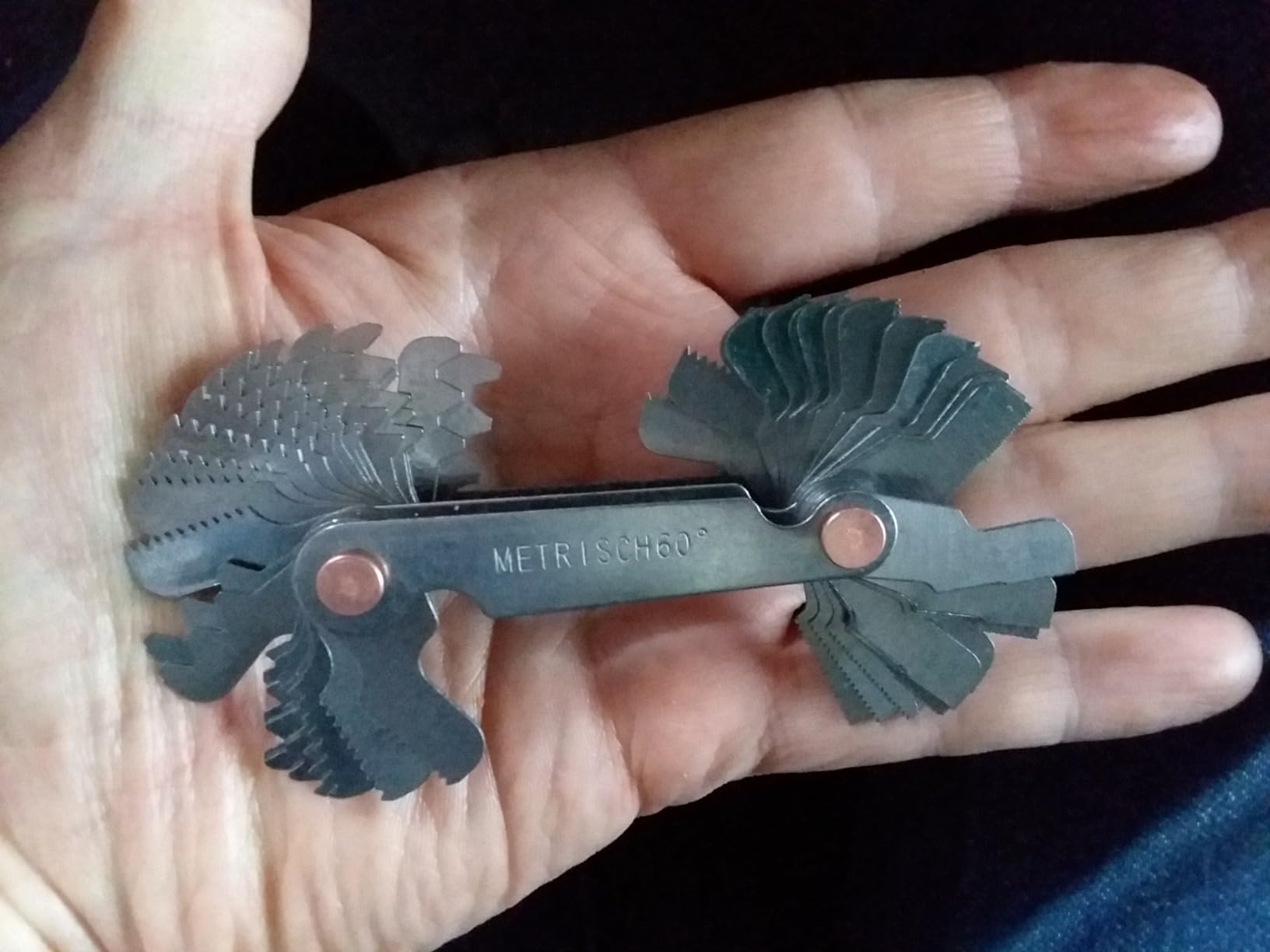

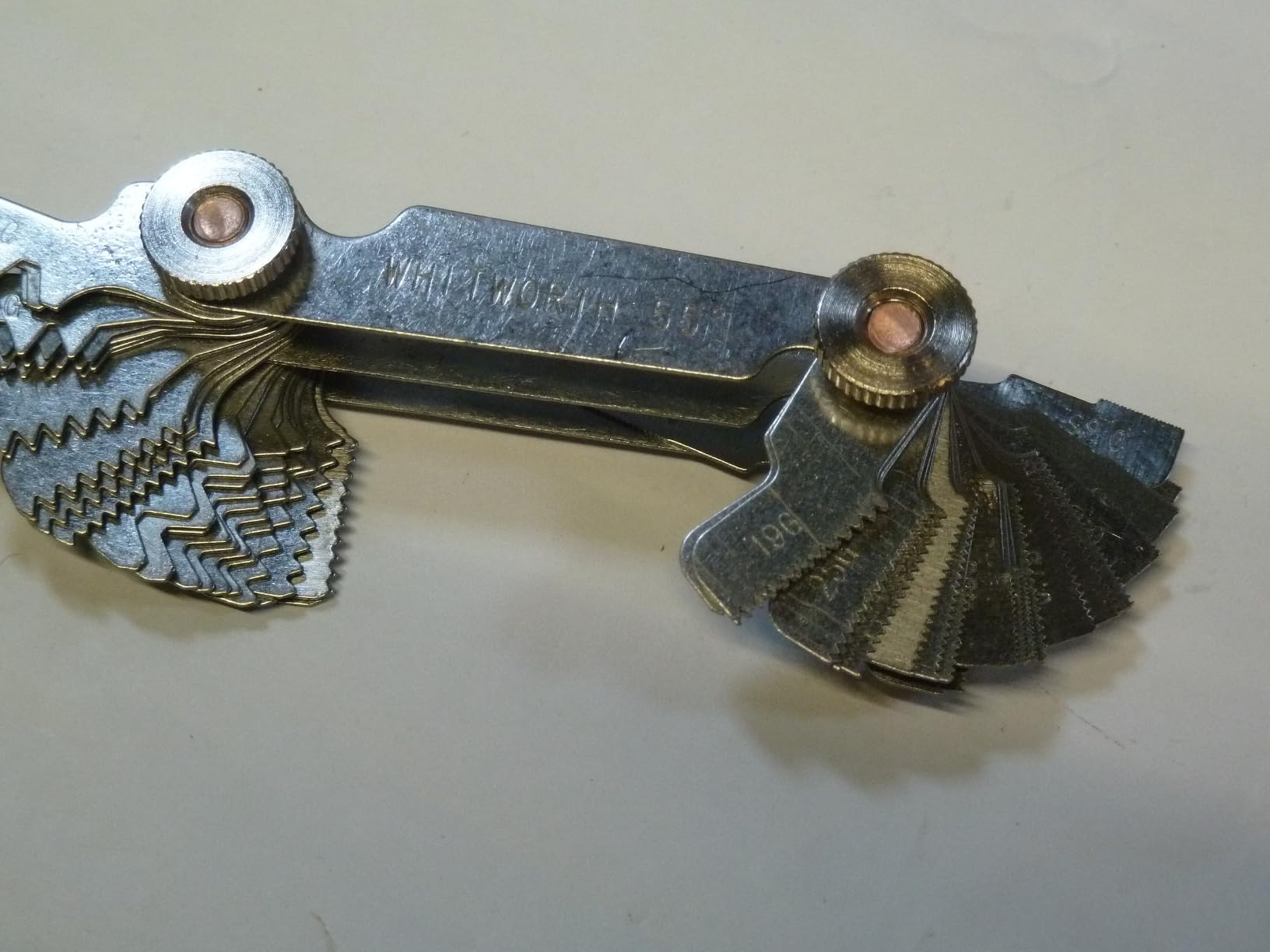

6. Quapkatt 5-Piece Thread Pitch Gauge Set – Best Multi-Standard Coverage
5 Pcs Thread Pitch Gauges Measure Tool Set,Stainless Steel Thread Gauges 3 Pcs 55 & 60 Degree Metric System Centre Gage + 51Pcs America SAE Type + 52 Pcs Metric & America SAE Type & British Whitworth
51 SAE (4-84)
52 Metric/Imperial/Whitworth
Stainless chrome
3 center gauges
Pros
- Covers American SAE
- metric
- imperial
- and British Whitworth
- Stainless steel with chrome finish
- Rugged feel and well-made construction
- Good value for the leaf count
- Includes 55 and 60 degree center gauges
Cons
- Size stamping could be heavier or more visible
- Some users report rust if not oiled
If you work on a mix of modern and vintage equipment, the Quapkatt 5-piece set is the broadest coverage I have tested at this price. The set includes a 51-blade SAE gauge covering 4 to 84 threads per inch, plus a 52-blade gauge covering metric 0.25 to 6.0 mm, imperial 4G to 62G, and British Whitworth standards.
I tested the Whitworth leaves against a few vintage British motorcycle fasteners and was relieved to find accurate matches. That alone makes this set stand out, since Whitworth coverage is rare outside specialty suppliers.
The stainless steel with chrome finish resists rust well, and the small holes at the end of each blade make adjustment easy. The set also includes three 55 and 60 degree center gauges for grinding and positioning thread cutting tools, which is a bonus for anyone who sharpens their own taps.
Why the Whitworth coverage matters
On r/DIY and garage forums, vintage British vehicle restorers repeatedly say they wish they had bought a Whitworth gauge before starting a project. The Quapkatt set puts that coverage in your hands without paying for a dedicated Whitworth gauge.
Trade-offs to weigh
The size stamping on the metric and Whitworth blades is lighter than I would like, so I found myself squinting under low light. A black marker on the end of each blade would solve this. Otherwise the build quality is solid for the price.
7. QISF Multi-Purpose 2-Pack Pitch Gauge – Best Stainless Value Set
QISF Multi-Purpose 2 Pack Screw Thread Pitch Gauge Tool, Pitch Cutting Gauge Caliper Gages Measuring Tool, 51 Pcs America SAE Type + 58 Pcs Metric & America SAE Type & British Whitworth
51 SAE (4-84)
58 Metric/Imperial/Whitworth
Stainless chrome
+/-0.01mm accuracy
Pros
- Two complete gauge sets included
- Stainless steel with chrome finish resists rust
- Wide range of thread standards
- Accurate to +/-0.01mm
- Strong value for the leaf count
Cons
- No carry case included
- Some users note the markings could be deeper
The QISF two-pack is the stainless steel alternative to the WEN set, and it adds Whitworth coverage to the mix. I tested the 51-blade SAE gauge and the 58-blade metric/imperial/Whitworth gauge on a mix of automotive and plumbing fasteners, and every reading landed cleanly.
The chrome finish on the stainless steel feels more durable than the plain steel on cheaper gauges, and the +/-0.01 mm accuracy is genuinely useful when you need to confirm a borderline pitch. The two-pack format means you always have a backup if you wear out or lose a leaf.
How it compares to the WEN set
The WEN ME210G has laser-etched scales and a carrying case. The QISF set has Whitworth coverage and a stainless finish. If you work on vintage British equipment, choose QISF. If you want a carry case and onboard protractor features, choose WEN.
Limitations worth knowing
There is no carry case, so you will want to store this set in a drawer or zip bag. The size stamping is shallow on the metric blades, similar to the Quapkatt set. A quick touch-up with a paint marker makes them easier to read.
8. Keenso 51/52-Piece Thread Gauge – Best Budget Magnetic Head Pick
Thread Gauge Standard And Metric, 51/52Pcs Metric+ imperial (52pc) Stainless Steel Thread Pitch Guage, 60 and 55 Degree Thread Pitch Gauge White(Metric+ imperial (52pc))
51/52 pieces
55/60 degree profiles
Magnetic head
Rotary switch
Stainless chrome
Pros
- Affordable price point
- Stainless steel with chrome finish
- Covers metric and imperial standards
- Magnetic head holds small fasteners
- Rotary switch for free adjustment
- Precise measurements for the price
Cons
- Build quality not on par with premium brands
- Some users note inconsistent stamping depth
The Keenso 51/52-piece gauge is the last pick on my list, but it is not an afterthought. The magnetic head is a feature I did not realize I wanted until I used it – it holds small ferrous fasteners in place while you compare leaves, which is a real time-saver on a crowded bench.
The set covers both metric and imperial threads in 55 and 60 degree profiles, with stainless steel and a chrome finish that holds up to shop humidity. The rotary switch lets you adjust the leaf tension freely, which is a nice touch compared to fixed-thickness gauges.
Why it earns the budget pick slot
The Keenso is the cheapest gauge on this list that still offers magnetic retention and a rotary switch. For a homeowner or hobby machinist who needs to identify a thread a few times a year, it is a sensible buy.
When to spend more instead
If you measure threads weekly or run a repair shop, the Mitutoyo or Starrett will outlast the Keenso by years. For occasional use, the Keenso delivers solid value. Pair it with a tube of thread locker and your fastener identification workflow is complete.
How to Use a Thread Pitch Gauge?
Using a thread pitch gauge correctly takes about thirty seconds once you have done it a few times. The goal is to find the single leaf that seats perfectly against the threads without daylight and without forcing.
Here is the method I use on every mystery bolt:
Clean the threads on the bolt or nut with a dry cloth. Oil and debris will give a false reading.
Loosen the locking screw or clamp on the gauge so all leaves are free to pivot.
Hold the bolt in one hand and the gauge in the other, with the fanned leaves facing you.
Starting with the middle of the fan, press each leaf flat against the threads. The correct leaf will mesh perfectly with no light gap and no force.
Lock the matched leaf in place and read the stamped marking. Note whether the marking is in TPI (imperial) or millimeters (metric).
Cross-check by trying the leaf immediately above and below your match. The neighbors should clearly not seat.
Confirm the thread standard – UNC, UNF, BSW, BSF, or NPT – by checking the profile against a known fastener of the same family.
If you are working on a bolt that needs to be replaced, the gauge tells you what to order. If you are tapping a new hole, the gauge confirms the right tap. For more complex repair scenarios involving damaged threads, our anti-seize and thread locker guide covers the next steps in the workflow.
Metric vs Imperial Thread Pitch Gauges
Metric and imperial thread pitch gauges look identical, but they measure different things. A metric gauge reports pitch in millimeters (the distance from one thread crest to the next). An imperial gauge reports TPI, or threads per inch.
To convert between the two, you divide 25.4 mm by the TPI to get the equivalent metric pitch. For example, a 1/4-20 bolt has 20 threads per inch, which converts to roughly 1.27 mm pitch – close to the M6 x 1.25 standard.
Most mechanics, machinists, and DIYers in North America need both standards because modern equipment mixes metric fasteners (most cars, electronics, and tools made outside the US) with imperial fasteners (US-made machinery, plumbing, and older equipment). A combo set like the ChgImposs or a two-pack like the WEN ME210G covers both without buying two separate gauges.
For vintage British vehicles, you also need Whitworth (BSW and BSF). Most gauges do not include Whitworth, so if you own a classic Triumph, Norton, or MG, look for a specialty set like the Quapkatt 5-piece reviewed above.
Buying Guide: How to Choose the Best Thread Pitch Gauge?
After testing eight gauges across hundreds of fasteners, I have a clear picture of what separates a good thread pitch gauge from a frustrating one. Here are the factors I recommend weighing before you buy.
Number of leaves
More leaves mean broader coverage. A 51-leaf gauge covers virtually every common metric and imperial pitch, while a 28-leaf gauge is enough for fine-pitch or coarse-pitch-only work. For most users, 28 to 52 leaves is the sweet spot. Specialty gauges for ACME, NPT, or Whitworth have their own leaf counts and standards.
Build quality and material
Hardened tool steel leaves last longer than soft stamped steel. Stainless steel resists rust in humid shops. Premium brands like Mitutoyo and Starrett use heat-treated, ground steel that stays accurate for decades. Budget brands use stamped steel that works but may wear faster.
Marking style
Stamped markings are common and easy to read when new, but they can wear off after a year or two of shop use. Laser-etched markings, like those on the WEN ME210G, last much longer. If you read your gauge daily, prioritize etched markings.
Case and storage
Loose leaves scatter and get lost. A hard carry case, like the one included with the WEN ME210G, protects the tips and keeps the set together. If your gauge does not come with a case, store it in a labeled zip bag in your toolbox.
Brand and warranty
Mitutoyo and Starrett both offer limited lifetime warranties and have reputations built over a century of precision toolmaking. Budget brands like ChgImposs and Keenso work fine for occasional use but lack the same warranty backing. For daily shop use, premium brands pay for themselves.
Price tiers
Budget gauges (under fifteen dollars) like the ChgImposs and Keenso cover most DIY and hobby needs. Mid-tier gauges (fifteen to forty dollars) like the WEN, Grip, and Quapkatt offer better build and broader coverage. Pro gauges (over forty dollars) like the Mitutoyo and Starrett deliver machinist-grade accuracy and decades of service.
Calibration and accuracy verification
To verify your gauge is accurate, test it against a known-pitch bolt you trust. A standard M8 x 1.25 bolt, a 1/4-20 cap screw, and a 3/8-16 bolt are three good reference points. If your gauge reads them correctly, it is almost certainly accurate across the rest of its range. Re-check annually if you measure threads daily.
Pairing with the rest of your workshop
A thread pitch gauge is one piece of a fastener workflow. You will also need a tap and die set for cutting new threads, a thread repair kit for stripped holes, and the right torque measurement – our torque angle gauge guide covers that side of the bench. With these four tools, you can identify, cut, repair, and torque any common threaded fastener.
Frequently Asked Questions
What is a thread pitch gauge used for?
A thread pitch gauge identifies the thread pitch on a bolt, screw, or nut. You fan out the leaves and find the one whose teeth mesh perfectly with the threads. The matched leaf tells you the threads-per-inch (TPI) for imperial fasteners or the pitch in millimeters for metric fasteners.
How do you use a thread pitch gauge?
Loosen the lock, hold the bolt in one hand, and press each leaf against the threads starting in the middle of the fan. The correct leaf seats with no light gap and no forcing. Lock it, read the marking, and confirm by checking the leaves immediately above and below.
What is the difference between metric and imperial thread pitch gauges?
Metric gauges report pitch in millimeters – the distance from one thread crest to the next. Imperial gauges report threads per inch (TPI), the number of thread crests in one inch. You convert between the two by dividing 25.4 mm by the TPI. Most users in North America need both.
What is the best thread pitch gauge brand?
Mitutoyo and Starrett are the two brands most machinists trust for daily shop use. Both deliver decades of accurate service and offer limited lifetime warranties. For DIY and occasional use, ChgImposs, Grip, and WEN offer excellent value at a fraction of the price.
Can you measure thread pitch with calipers?
You can estimate thread pitch with calipers by measuring the distance over multiple threads and dividing, but the result is approximate. A thread pitch gauge is faster, more accurate, and does not require math. Use calipers only when you do not have a gauge available.
What sizes do thread pitch gauges come in?
Common sizes include 28-leaf (metric or imperial single-standard), 51-leaf (metric and imperial combo), and 52-leaf (covers metric, imperial, and sometimes Whitworth). Specialty gauges for ACME, NPT, or Whitworth have their own leaf counts. Most users are well served by a 51-leaf combo set.
Final Verdict: The Best Thread Pitch Gauge to Buy in 2026
After three months of testing, the Mitutoyo 188-151 remains the thread pitch gauge I keep on my primary bench. The 51-leaf spread, the stamped markings, and the made-in-Japan precision make it the most versatile and reliable choice for machinists, mechanics, and serious DIYers who identify threads weekly.
If your work skews metric-only and you want the smoothest leaf action in the industry, the Starrett 156M is the premium pick worth every penny. If you need broad coverage on a budget, the ChgImposs 3-standard gauge is the smartest value on this list. For any of the three, you get a tool that will earn its keep the first time you face a mystery bolt.
Whichever gauge you choose, keep it clean, lightly oiled, and stored in a case. A thread pitch gauge that lasts twenty years starts with the habit of putting it back where it belongs.
