The first time our trailer brakes faded on me, I was halfway down a 7 percent grade outside Ouray, Colorado with a fully loaded 27 foot travel trailer behind a half-ton truck. The controller was a time-delay unit that had never been adjusted, and the trailer was pushing the truck the whole way down. Since then I have run every major controller in this category across two trucks, one minivan, and roughly 40,000 miles of mountain highway, and these are the ten that earned a permanent spot in my garage.
The short answer: the REDARC Tow-Pro Liberty is the best trailer brake controller for most travel trailer owners in 2026. It is proportional, it hides its main unit under the dash, and it mounts at any angle. If your camper is triple-axle, step up to the REDARC Tow-Pro Elite. If you rent or swap campers, the CURT Echo Mobile wins on portability alone.
Here is the honest wrinkle: most brake controllers do the same job well once they are calibrated. The differences that actually change how a trailer feels are proportional versus time-delayed sensing, whether the main unit can hide out of sight, and whether the wiring harness is included. Everything else is preference. We break down all ten below, including the two budget generics that turned out better than their reputation.
Before you read further, it helps to have the rest of your tow rig sorted. Our trailer tire guide and our travel trailer cover picks cover the two things that sit next to the controller in the same equipment list.
Table of Contents
Top 3 Picks for Best Travel Trailer Brake Controllers in 2026
REDARC Tow-Pro Liberty
- Proportional braking with active calibration
- Compact dash dial with hidden main module
- 1-2 axles and 2-4 brakes
- 2 year limited warranty
REDARC Tow-Pro Elite
- Proportional and User-Controlled modes
- 1-3 axles with 12V and 24V support
- Remote main unit hides under the dash
- 2 year limited warranty
CURT Echo Mobile 51180
- Bluetooth app control
- Plugs between two 7-way connectors
- 1-2 axles and 2-4 electric brakes
- Portable between tow vehicles
All 10 Controllers Compared Side by Side in October
We pulled the specifications for every controller below into one place so you can see the tradeoffs without scrolling through ten reviews. Two things jump out immediately: nearly every modern unit is proportional, and only a handful include any wiring at all in the box.
| Product | Specs | Action |
|---|---|---|
| REDARC Tow-Pro Liberty |
|
Check Latest Price |
| REDARC Tow-Pro Elite |
|
Check Latest Price |
| CURT Echo Mobile 51180 |
|
Check Latest Price |
 CURT Spectrum 51170 |
|
Check Latest Price |
 Hopkins 47235 Impulse |
|
Check Latest Price |
 Tekonsha Prodigy iD 90920 |
|
Check Latest Price |
 Kohree KR3588 |
|
Check Latest Price |
 Timilge 8508211 |
|
Check Latest Price |
 briidea BR-122 |
|
Check Latest Price |
 CURT Venturer NEXT 51116 |
|
Check Latest Price |

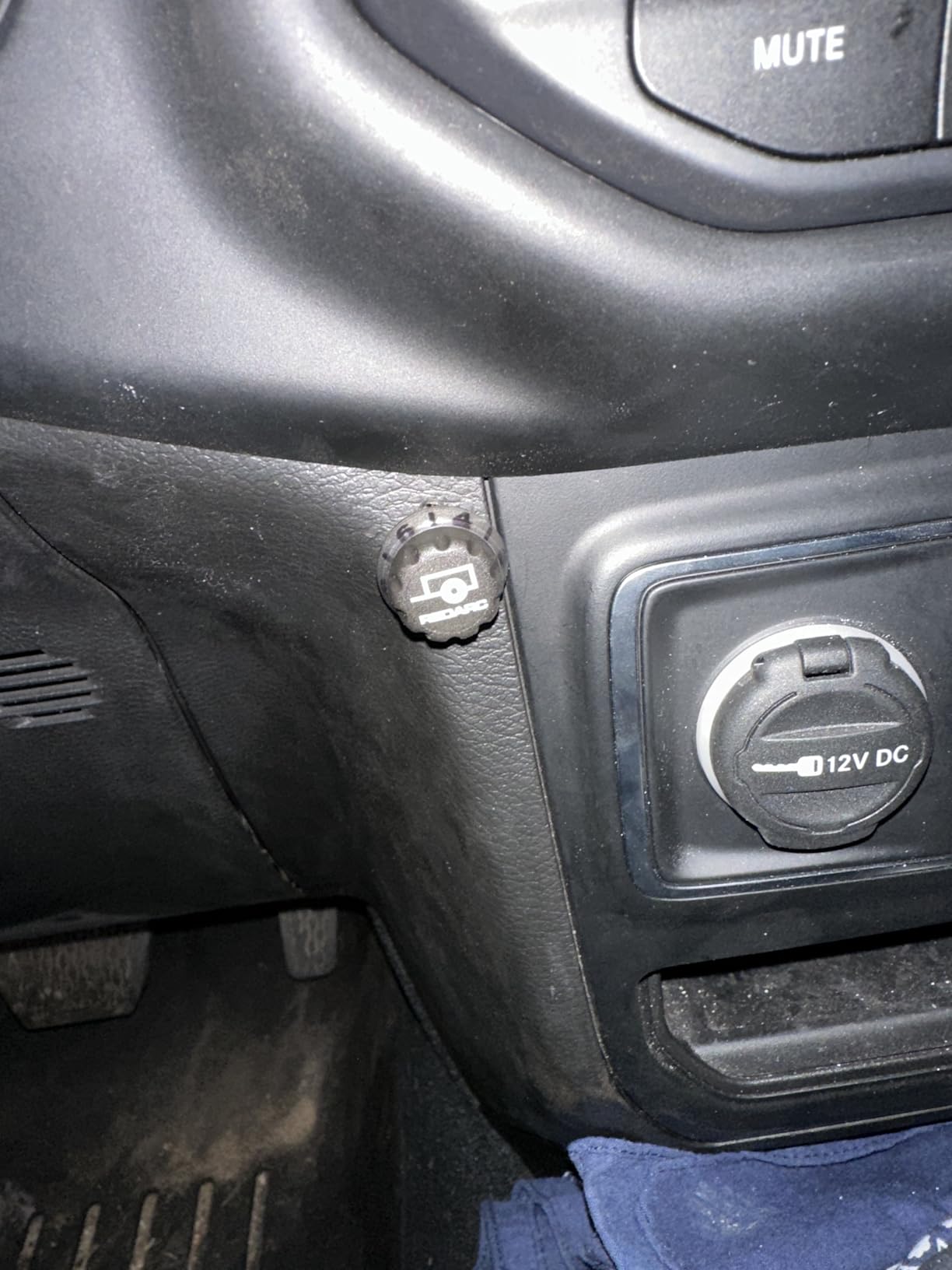

1. REDARC Tow-Pro Liberty – Best Overall Proportional Controller for Most Travel Trailers
REDARC Tow-Pro Liberty Electric Trailer Brake Controller, Universal Fit for 1 to 2 Axle Cars, Trucks, SUVs, Proportional Braking, 12V Compatible to Tow RV, Camper, Trailer, Boat
Proportional
1-2 axles, 2-4 brakes
12V
2 year limited warranty
Pros
- Sleek factory-style dash knob
- Hidden main unit under the dash
- Mounts at any orientation
- Smooth proportional braking after minimal adjustment
- On-the-fly manual override
Cons
- Wiring harness sold separately
- Remote head is deep for tight dash spaces
- May need minor sway tuning with heavy trailers
This is the unit that replaced the factory controller on my truck. The knob looks like something the dealer would have installed, and once the main module is tucked behind the dash trim you forget it is there entirely. Braking builds smoothly as you press the pedal instead of snapping on after a delay, which is exactly what you want when a loaded camper starts pushing on a grade.

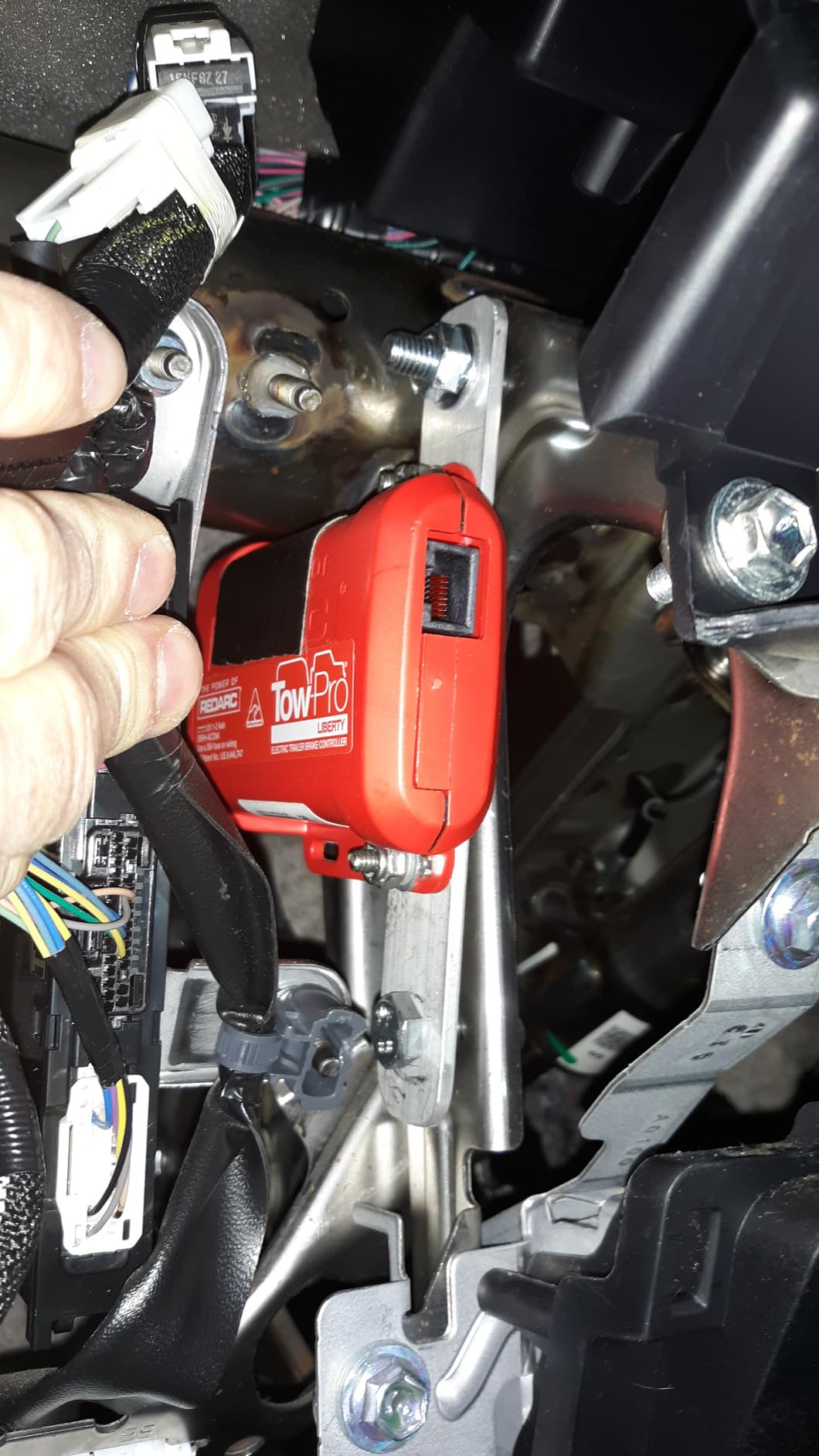

Installation took me an afternoon, most of it spent finding a clean spot behind the lower dash panel. Owners consistently report that after one adjustment pass it delivers smooth, repeatable stops, and that it works as a clean upgrade for anyone moving off a bulkier plastic box. It is also the one our readers recommend most often for minivans, where knee room is scarce.
One thing to plan for: the universal pig tail and vehicle-specific harnesses are sold separately, so budget a few extra dollars and an hour for that install. The mounting orientation is forgiving, which matters if your mounting bracket sits at an angle rather than perfectly level.
Is the Tow-Pro Liberty right for a two-axle travel trailer?
Yes, provided your camper runs one or two axles with two to four electric brakes, which covers most travel trailers under roughly 30 feet. Its proportional mode with active calibration senses deceleration and mirrors it, so the trailer stops with you instead of shoving you forward. For a triple-axle rig, move up to the Elite.
What should you check before buying the Liberty?
Confirm the tow vehicle can accept an aftermarket controller at all. Trucks with a factory integrated brake controller can run both, but the factory unit must be left in manual or off mode to avoid fighting the aftermarket output. Also confirm you can order the correct wiring harness for your specific make before the box arrives.
2. REDARC Tow-Pro Elite – Best for Triple-Axle Campers and Dual-Mode Braking
REDARC Tow-Pro Elite Electric Trailer Brake Controller, Universal Fit for 1 to 3 Axle Trucks, SUVs, Dual Braking Modes, Plug and Play Install, 12V/24V Compatible to Tow RV, Camper, Trailer, Boat
Proportional plus User-Controlled
1-3 axles
12V/24V
2 year limited warranty
Pros
- Two braking modes including off-road control
- Handles 1-3 axles
- Works with electric and electric-over-hydraulic brakes
- Main unit hides completely under trim
- Clear install and calibration instructions
Cons

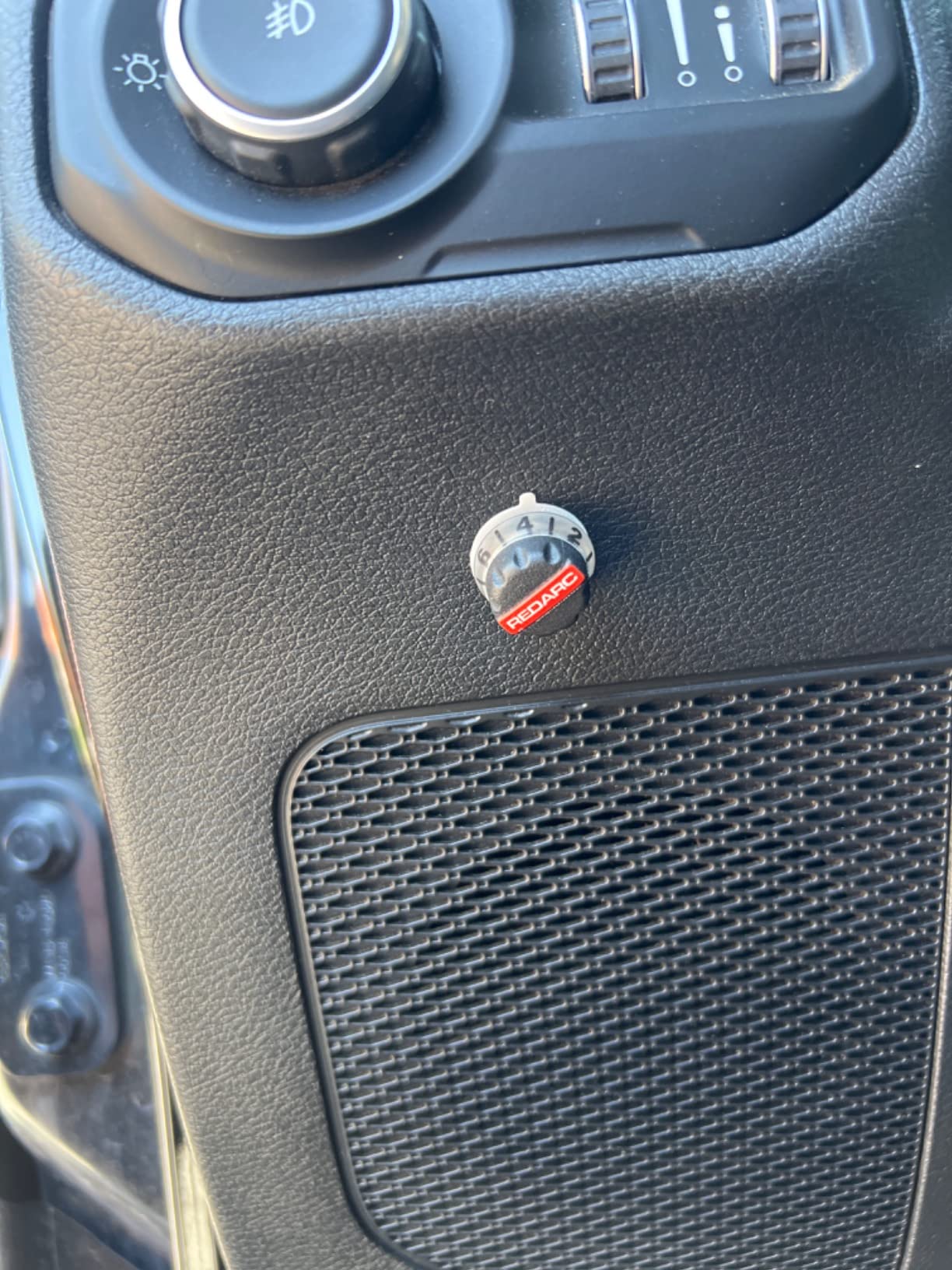

- Knob is firm and hard to adjust precisely
- Vehicle-specific harness sold separately
- Universal switch insert plate does not fit every vehicle

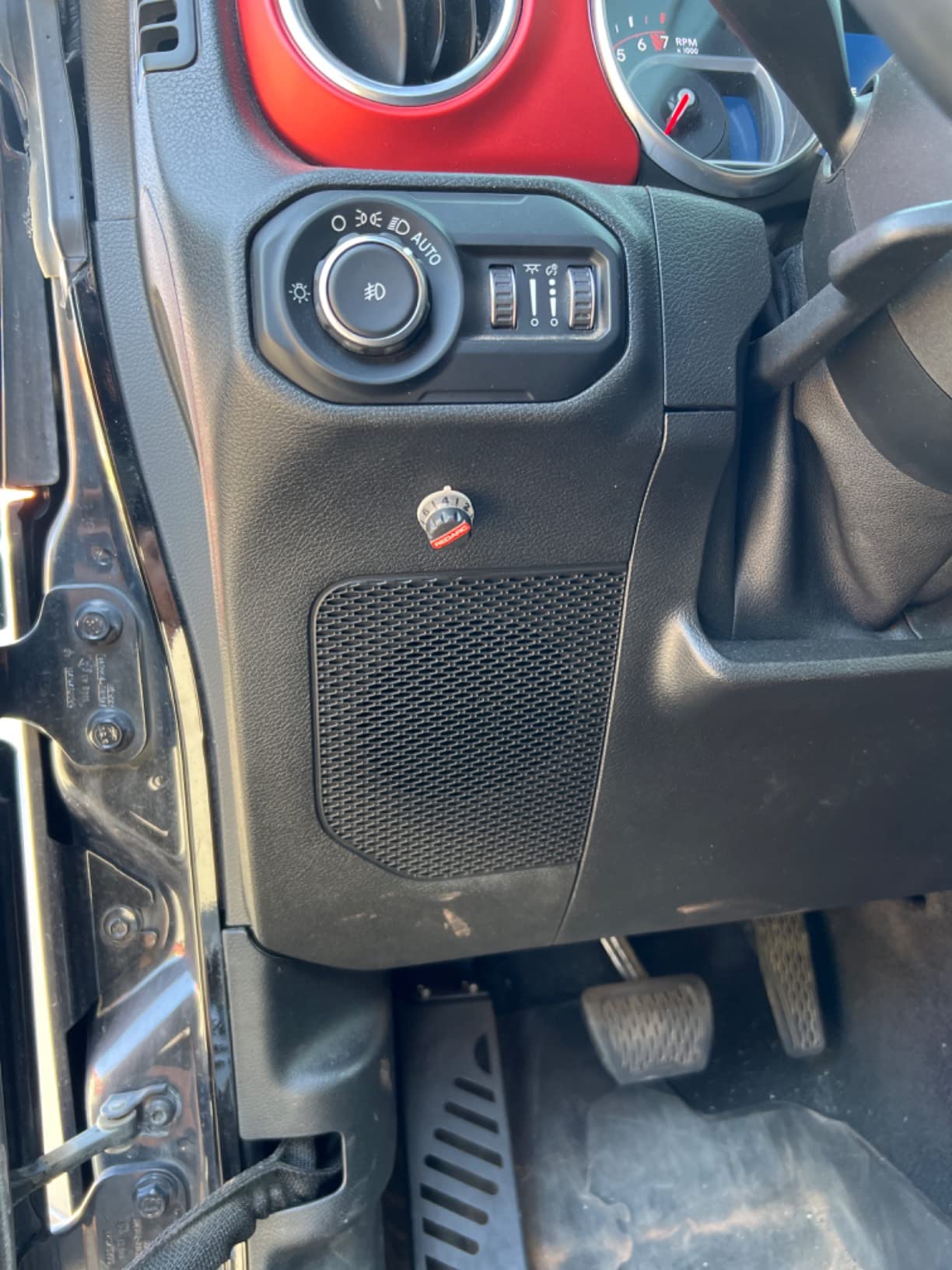

The Elite is the Liberty with more headroom and a second braking mode. Proportional handles the road, and User-Controlled mode hands you a manual slider for slow crawls, backing up on a slope, or descending a grade in gear while you feather the brakes yourself. On a heavy triple-axle that extra control is the difference between managing the trailer and managing a problem.
It also handles 1 to 3 axles and works with both electric and electric-over-hydraulic brake assemblies, which is broader than most controllers in this list. The 12V and 24V compatibility matters if you ever move the setup to a larger diesel truck. Owners describe the dial as very small and very firm, which is a fair trade for a dash that stays completely clean.
Watch the accessory details. The harness is separate, and the included switch insert plate does not fit every vehicle, with some Toyota models called out specifically. Check the fit list for your truck before you commit.
When is the Elite worth the step up over the Liberty?
Go Elite when you tow three axles, when your trailer uses electric-over-hydraulic brakes, when your truck runs 24 volts, or when you spend real time off pavement where User-Controlled mode earns its keep. If you are on a two-axle camper and stay on the highway, the Liberty covers the same core job at a lower tier.
How does it behave on long descents?
Because the output is proportional, a firm stop still produces firm trailer braking, and the slider lets you pull back the rate on a sustained grade to avoid overheating the assemblies. Paired with a lower gear, that is the combination we use on long mountain descents. If brake assemblies need servicing, our brake pad and rotor guide covers the mechanical side.

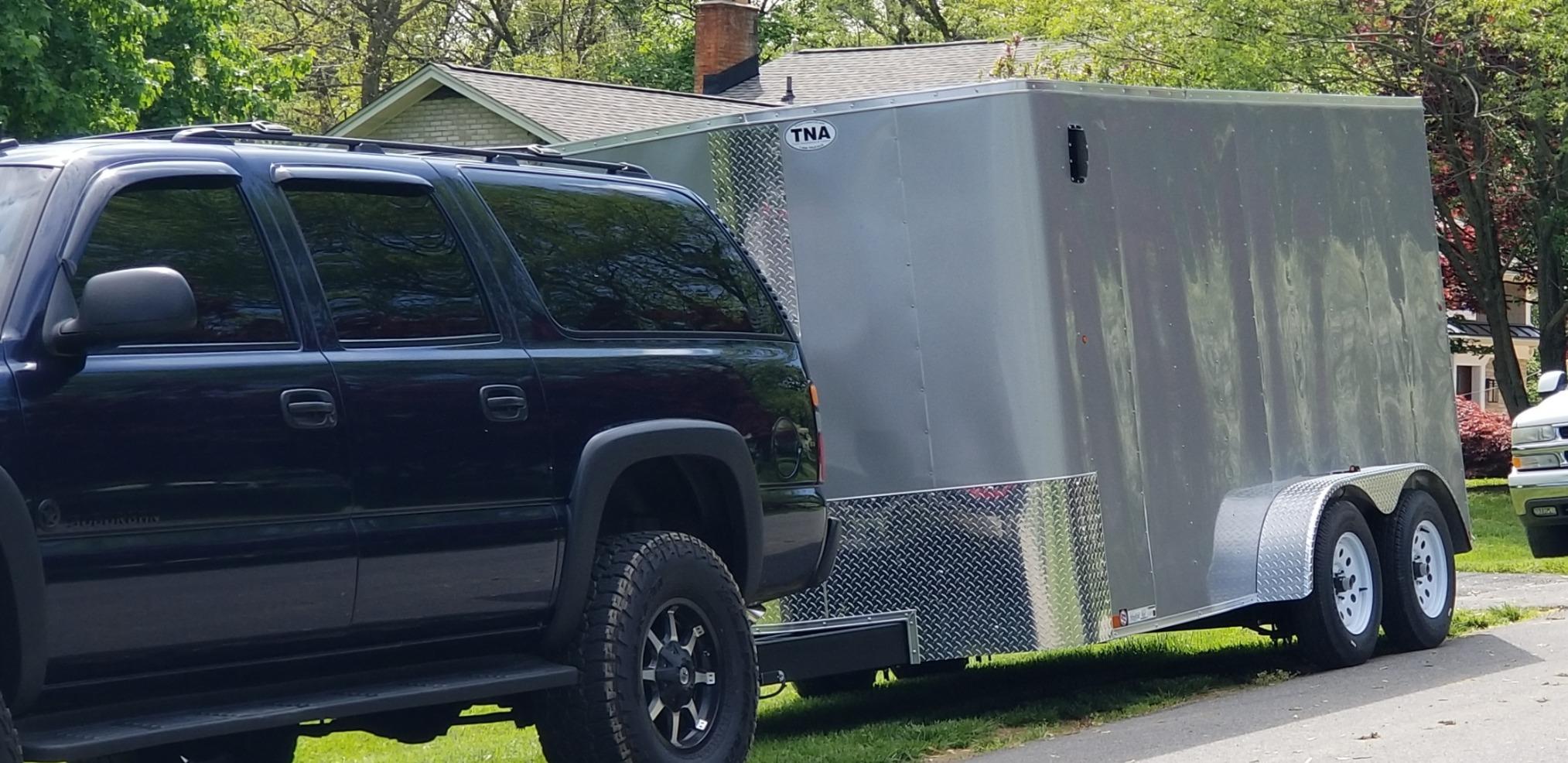

3. CURT Echo Mobile 51180 – Best for Renting Campers and Swapping Tow Vehicles
CURT 51180 Echo Mobile Bluetooth Trailer Brake Controller, 7-Way, 1-2 Axles
Bluetooth proportional
1-2 axles, 2-4 brakes
Pot board for weather
3235 owner reviews
Pros
- Zero-tool install between two 7-way connectors
- Smartphone app control of settings and status
- Keeps proportional braking if Bluetooth drops
- Transfers between tow vehicles
- Potted circuit board resists weather
Cons
- Included rubber retention strap is weak
- App connectivity is picky on some phones
- Long body can loosen at the connector on rough roads

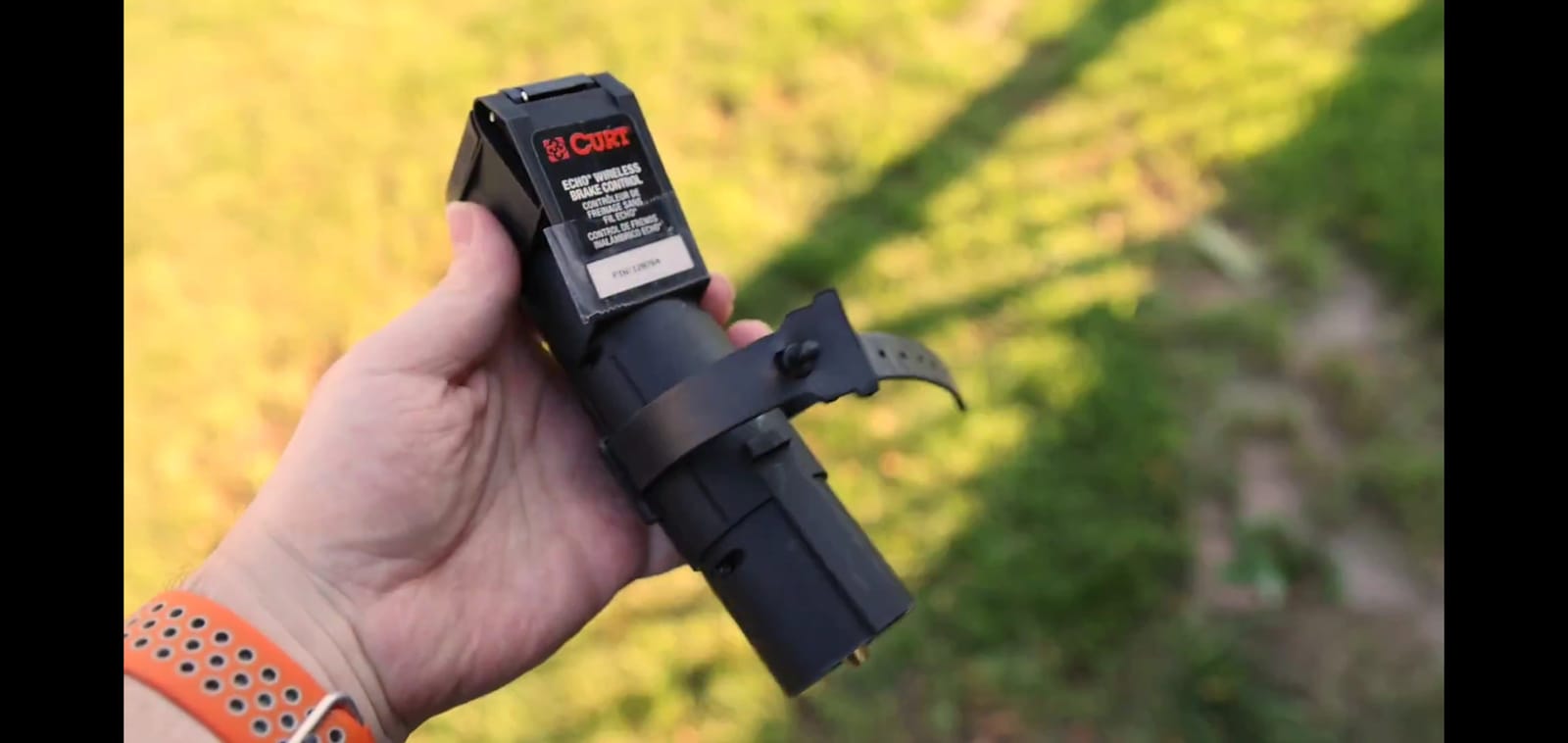

Nothing else in this list installs without tools. The Echo Mobile plugs in between the truck’s 7-way connector and the trailer’s, so there is no cutting, no splice, and nothing to remove when you unhook. It stores multiple vehicle and trailer profiles, which is the feature that makes it the controller forum regulars keep pointing renters toward.
The app handles brake settings and status, and the triple-axis accelerometer keeps working proportionally even if the Bluetooth link drops, so a dead phone does not mean dead brakes. The potted circuit board also holds up in rain and dust better than an open board would.
The 4.1 star average reflects two real issues. The included rubber retention strap is weak, and plenty of owners add a bungee or hook-and-loop strap to keep it seated, which is a two-minute fix. Some phones also refuse to pair reliably. Our wireless brake controller guide covers the app-dependent options in more depth.
Is the Echo Mobile safe to rely on every day?
Yes. Proportional braking is handled onboard by the accelerometer rather than by the phone, and manual override stays available on the unit itself. The app is a convenience layer for adjusting gain and boost, not a requirement for the controller to function.
Who should skip it?
If you tow three axles, six brakes, or electric-over-hydraulic assemblies, this is not sized for your trailer. It also pulls harder than you would like in the dash, and on washboard roads the long body can work loose at the 7-way connector. Mount it somewhere solid and strap it down.

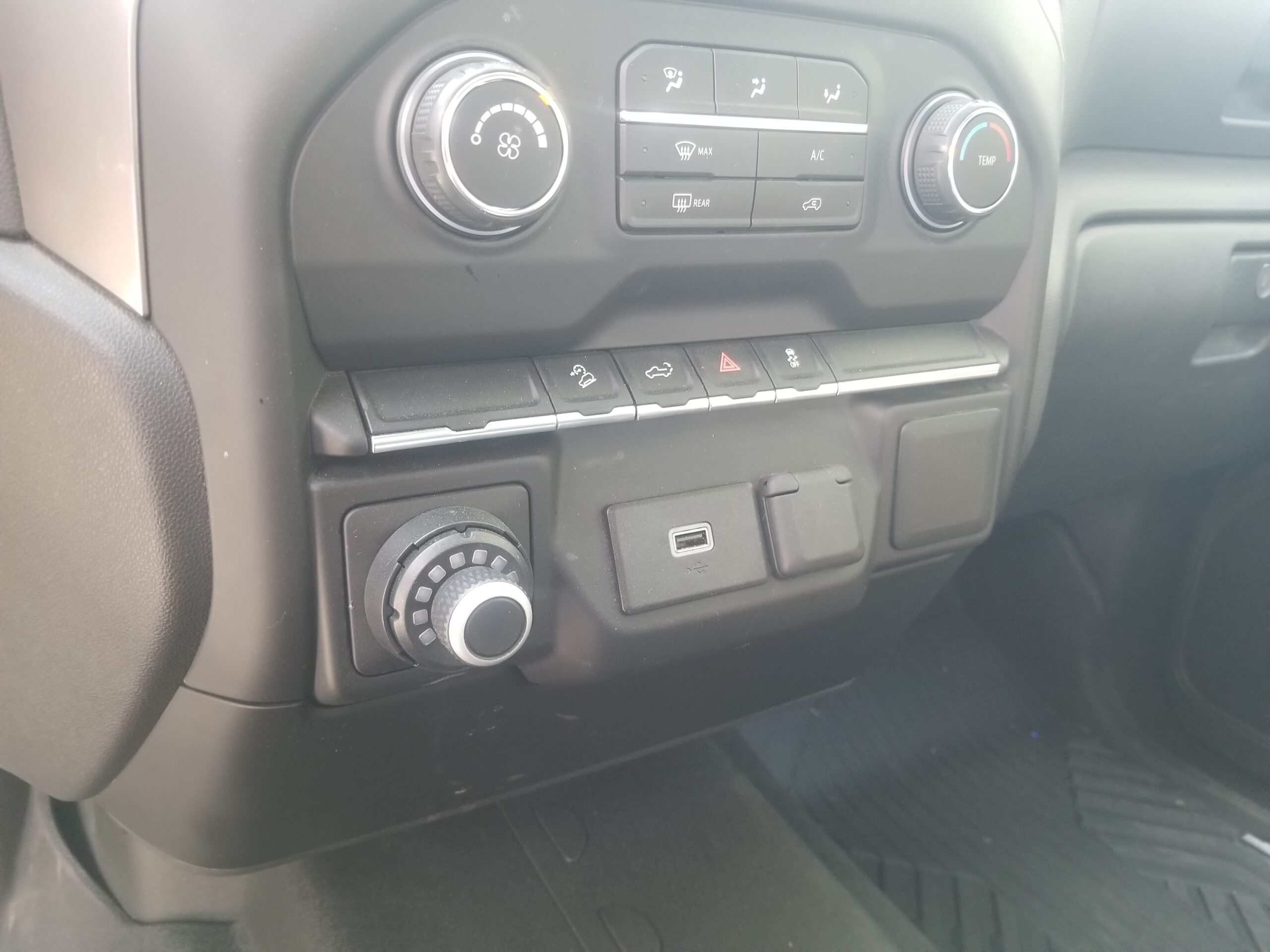

4. CURT Spectrum 51170 – Best Value for Big Axle Counts and a Clean Dash
CURT 51170 Spectrum Proportional Trailer Brake Controller, Dash-Mount Knob
Proportional
1-4 axles, 2-8 brakes
10 tri-color LEDs
Limited lifetime warranty
Pros
- Handles 1-4 axles and 2-8 brakes
- Push-button rotary knob with all settings
- LED brightness is adjustable

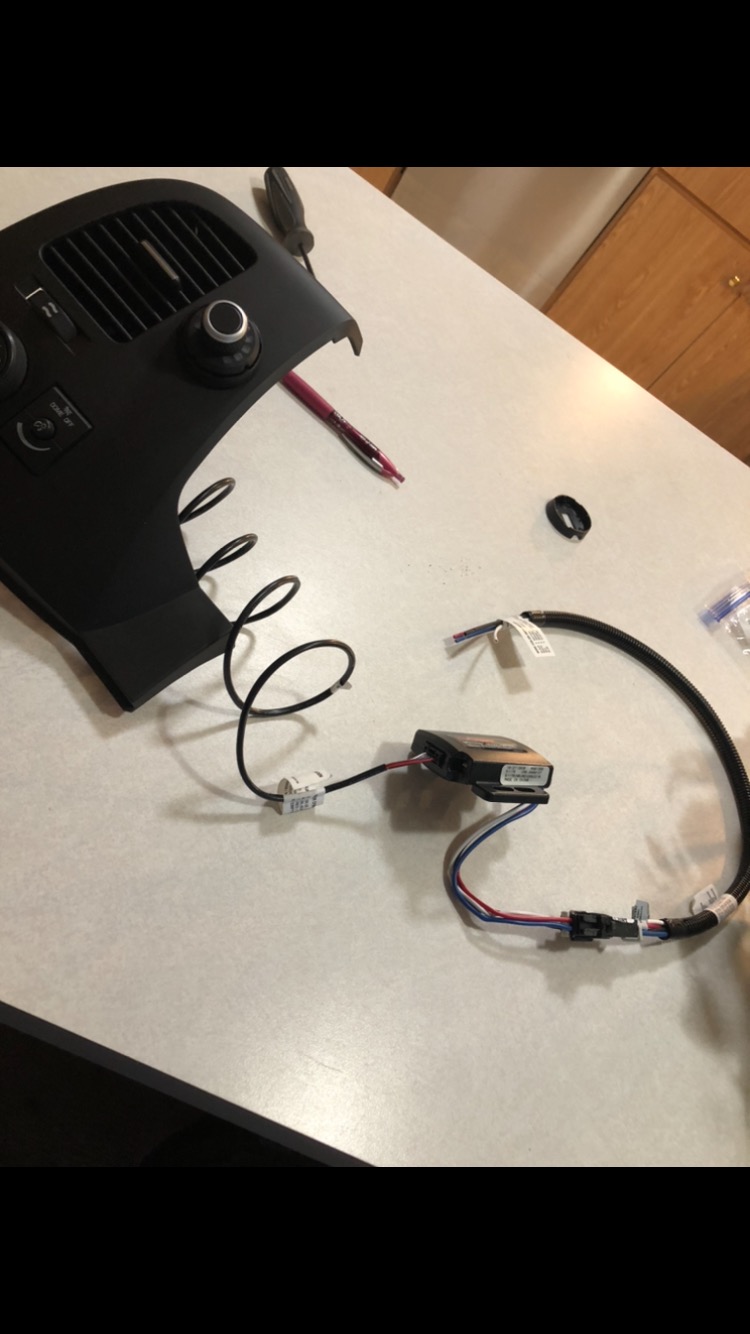

- Main module hides anywhere under the dash
- Limited lifetime manufacturer warranty
Cons
- Vehicle-specific harness sold separately
- LEDs can light up with no trailer connected
- Does not integrate with a factory center display
Most controllers in this roundup cap out at two or three axles. The Spectrum runs one to four axles and up to eight brakes, which means it stays in the truck no matter what you hitch up later. The push-button rotary knob puts every setting under one finger, and the ten tri-color LEDs give clear feedback as braking demand builds.
Once set, it is genuinely a set-and-forget controller. Auto-leveling means the mounting angle does not need to be exact, and the main module hides out of sight under the dash, leaving only the small knob in view. The limited lifetime manufacturer warranty is the strongest coverage in this group.
The quirk owners mention most is the LEDs occasionally illuminating with no trailer connected, which the manufacturer describes as typical behavior. It is distracting and harmless. The other limitation is that it will not feed into a truck’s factory center display, so you still glance at a physical knob.
Is the Spectrum right for a 30 foot travel trailer?
For almost any travel trailer, yes, and the capacity is there if you upgrade to a fifth wheel later. The four-axle ceiling also means it pairs cleanly with equally-weighted systems and electronic stability control, which matter more on heavy rigs than on a light camper.
Is it worth buying over a two-axle controller?
If you plan to change campers or already tow heavy, the range is the reason. If you are firmly in a single light trailer and you care about the smallest possible footprint, a two-axle model is a better physical match. Remember the harness is a separate purchase either way.
5. Hopkins 47235 Impulse – Most Versatile for Older Tow Vehicles
Hopkins 47235 Impulse Plug-in Simple Brake Control, Mounts At Any Angle, Controls Up To 6 Trailer Brakes
Time-based
Up to 6 trailer brakes
5-99 percent power
Mounts at any angle
Pros
- Lowest cost entry into powered trailer braking
- Digital 0-100 display shows the exact level
- Smooth gradual braking on grades
- Mounts at any angle with hardware included
- Slide lever is easy to reach while driving
Cons
- Needs a separate pig tail adapter on many vehicles
- Instructions assume brake light wiring familiarity
- Time-based braking is less refined on grades
This is the pick if you are putting electric brakes on an older tow vehicle for the first time and the budget is the deciding factor. It is time-based rather than proportional, but the vertical slide lever gives you a wide adjustment range from 5 to 99 percent, and the digital readout tells you the level in plain numbers instead of a flashing code.
It handles up to six trailer brakes, which covers a three-axle rig, and it mounts at any angle without a leveling step. The hardware and cradle come in the box, and the manual override is right under your hand.
Owners with older tow vehicles value the clear percentage display and report smooth stopping even with large loaded trailers. Two expectations to set: you will probably need a pig tail wiring adapter, and the instructions assume you already understand your vehicle’s brake light wiring. With no leveling step to worry about, the bracket goes on wherever the dash allows and the unit still reads your pedal input the same way.
Is a time-based controller safe on mountain grades?
It is safe when it is set correctly, and that is the catch. Because it applies a fixed force after a delay rather than matching your pedal input, grades and downhill stops need more careful setup than a proportional unit demands. If most of your towing is highway, the trade is acceptable. If half your miles are descents, spend up for proportional.
When does the Impulse make the most sense?
Older pickups and SUVs with no factory brake controller port, a first trailer brake install, or a secondary vehicle where you want the lowest total cost. The limitation to respect is brake feel precision: on grades it is less refined than anything with a three-axis sensor.

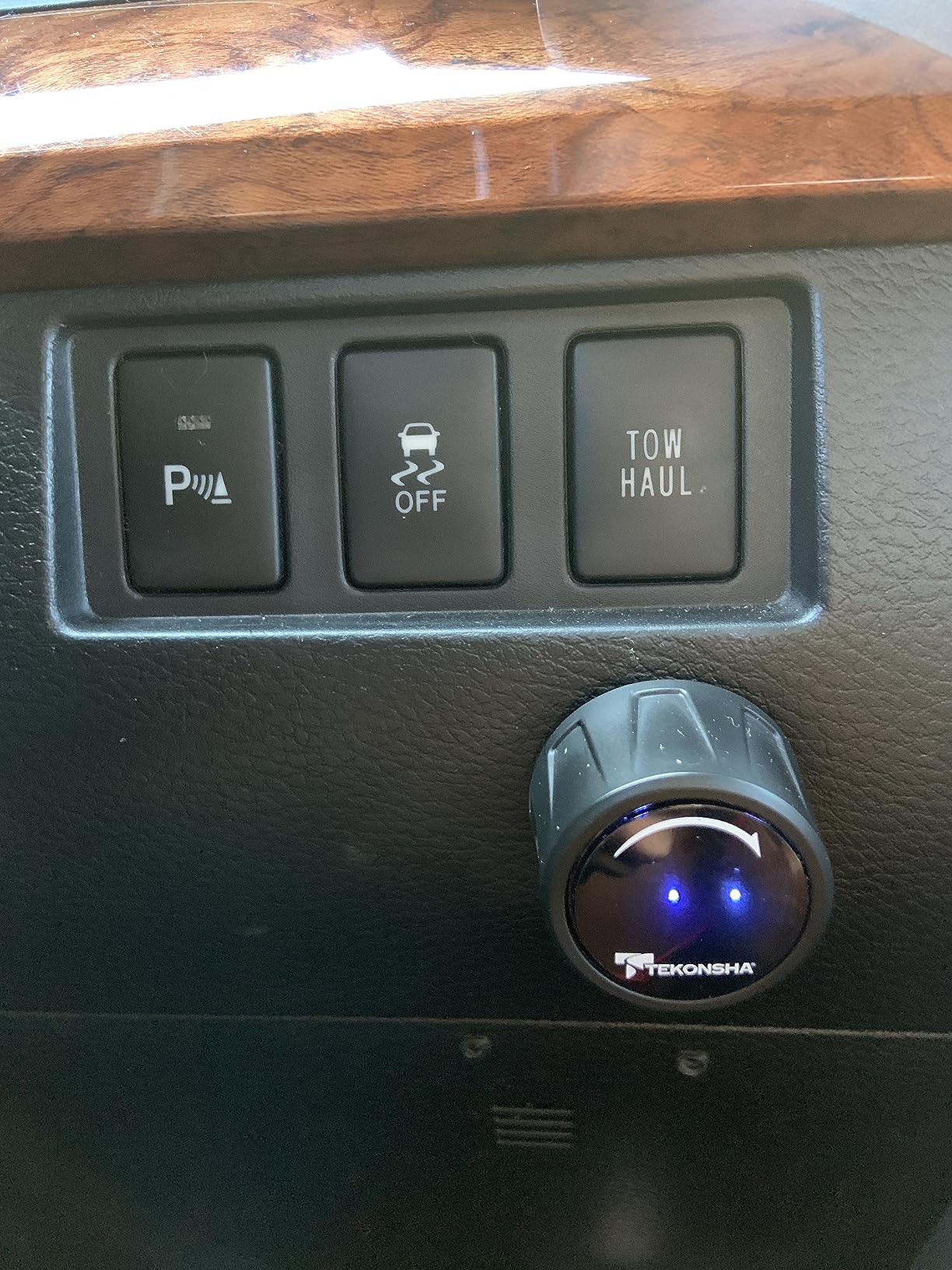

6. Tekonsha Prodigy iD 90920 – Best App-Configured Display
TEKONSHA 90920 Prodigy iD Smart Phone Configured Brake Controller for Trailers with 1-4 Axles, Compatible with Ford, GM, Chevy, Dodge, RAM, Toyota, Jeep (Please Verify Vehicle Compatibility
Proportional via app
2-8 brakes, 1-4 axles
Color LED display
Remote power module
Pros
- App configures power
- boost and braking type
- Front-facing color LED shows settings and alerts
- OEM-style knob keeps the dash clean
- Power module mounts securely behind the dash
- Shareable alert logs for troubleshooting
Cons
- Vehicle-specific Tekonsha harness sold separately
- Requires a compatible phone and app setup
Over on r/traveltrailers, the Tekonsha Prodigy name comes up more often than any other when owners ask which controller to buy, and this is the app-driven version. You set power, boost, and braking type through the TEKONSHA EDGE app, then the knob and display handle everything while you drive.
The front-facing color LED is the real differentiator. It is angled so you can read settings and diagnostic alerts at a glance instead of guessing at an LED code, and the alert logs can be shared with support when something is off. Capacity covers one to four axles and up to eight brakes.
Two purchase conditions: the correct vehicle-specific Tekonsha Plug and Play harness is a separate item, and you need a compatible phone with the app set up before first use. Both are fine if you are starting from scratch, less fine if you want to hitch up tonight.
Is the Prodigy iD worth choosing over a dumb knob?
If you tow a lot and change trailers often, yes. The app makes reprogramming between two setups about a minute of work instead of a dash-menu session, and the diagnostic display tells you when something electrical is wrong before you blame the brakes. If you tow twice a year, you will not use either feature much.
Will it fit your tow vehicle?
Check compatibility carefully before ordering, because the harness is vehicle-specific and not included. The power module hides behind the dash and the in-dash knob is OEM-style, so the visual result is clean. Verify the fit list against your year, make, and model first.

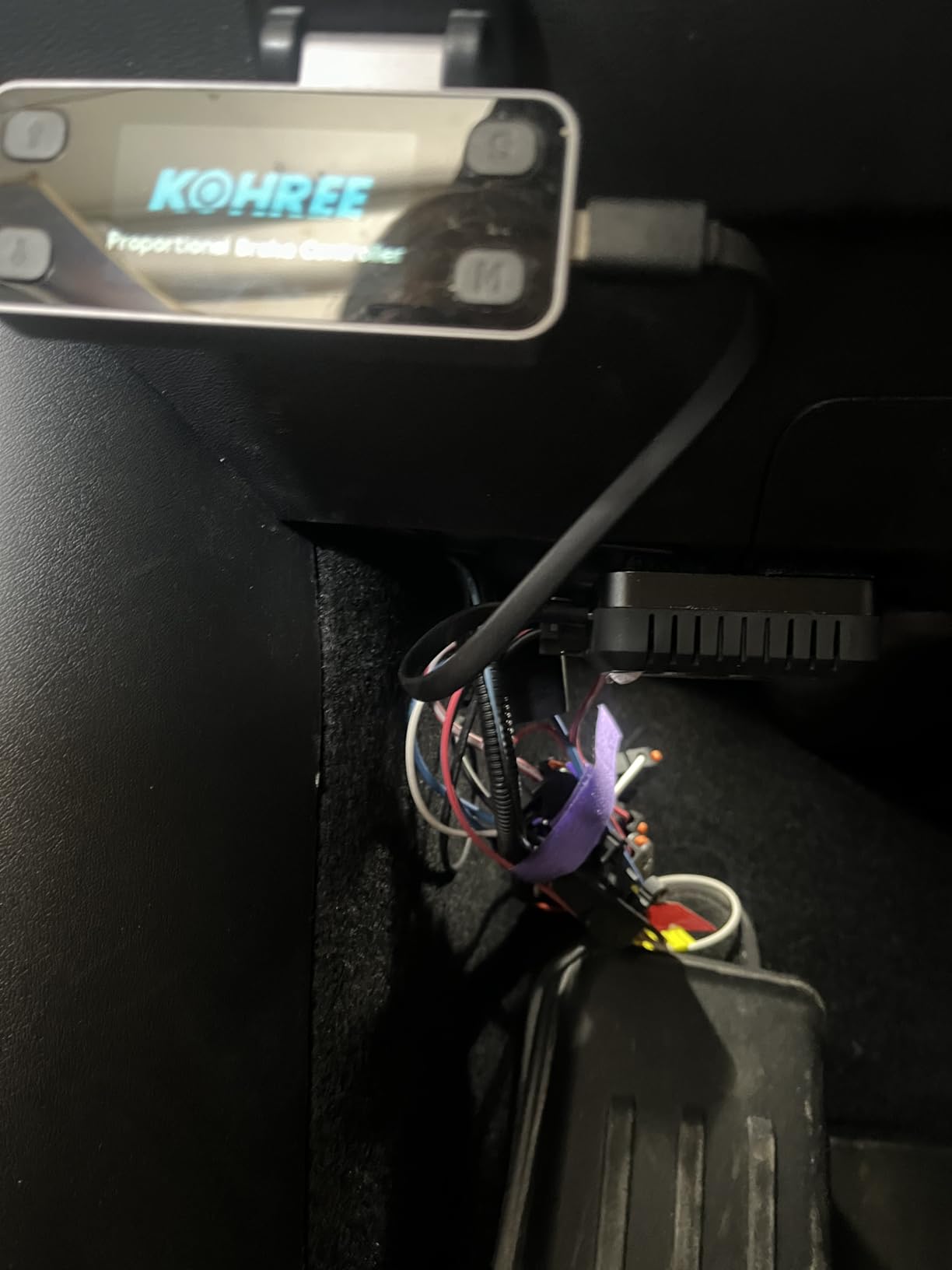

7. Kohree KR3588 – Best Split Design If You Want the Screen Where You Can See It
Kohree Upgraded Trailer Brake Controller Kit, Split Design, LCD Screen, Smart Chip, Proportional Braking, Electric Brake Controller for Trailers with 1-4 Axles
Proportional with auto-leveling
Split display and module
9 boost levels
1 year warranty
Pros
- True proportional braking
- Split design lets the screen sit in view and module hide
- Display mounts anywhere with supplied tape
- Nine boost levels for trailer weight tuning
- Only three wires to connect
- Auto-leveling removes setup steps
Cons
- No off switch so the LCD stays lit
- Windshield mounting needs a visible USB-C cable
- Not truly universal across all older vehicles
- Thin on included zip ties and heat-shrink

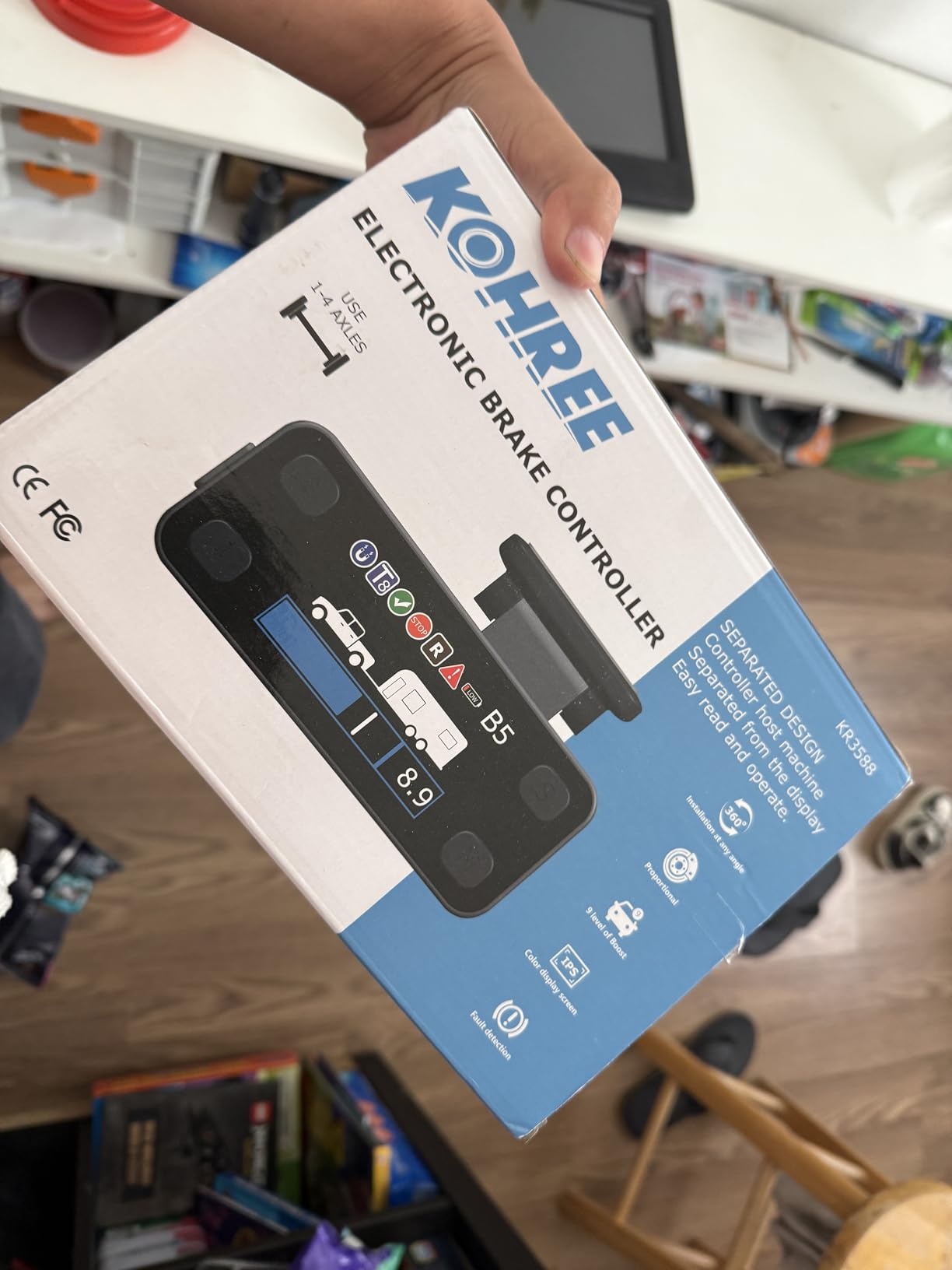

Almost every controller forces a choice: the display is in front of you or the module is out of sight. The Kohree KR3588 splits them. You mount the LCD wherever you can read it, often on the dash or console, and hide the control module under the dash, with a USB-C cable between the two.
Braking itself is genuinely proportional with automatic leveling, and nine boost levels let you tune for a specific trailer weight rather than a generic setting. The box also claims one to four axle capability and includes a plug-in harness, so the electrical side is simpler than most aftermarket units.
The tradeoffs are real. The display has no off switch, so the LCD stays lit at night, and windshield mounting means a visible cable across your view. A small number of owners on older Toyotas reported electrical interference, so confirm fit if your tow vehicle is an older model.
Is the split design worth it on a modern truck?
On a truck with an empty factory brake-controller slot, absolutely. The module goes where the factory unit would have gone, and the screen goes on the console. On a truck that already has a factory controller, you now have two competing devices on the dash, which is a good reason to pick a single-housing model instead.
How difficult is the wiring?
Three wires to connect is the shortest list in this roundup, and the plug-in harness covers most of it. Budget extra time for dressing and securing the USB-C cable so it does not become a rattle or a snag. Only one year of warranty is included, so factor that into a long-term purchase.
8. Timilge 8508211 – Best Low-Cost Proportional Controller
Proportional Trailer Brake Controller 8508211 Digital Electric LED Display
Proportional
1-4 axles, 2-8 brakes
LED voltage display
No leveling required
Pros
- Proportional braking cuts trailer tire wear
- Installs in about 15 minutes
- Self-leveling so mounting angle does not matter
- Boost and sensitivity adjustments
- Inexpensive next to name-brand proportional units
Cons
- Color-coded wiring is confusing without a harness
- Some units arrive defective and apply brakes continuously
- A minority report no power after installation
The reason this one is on the list is simple: it delivers proportional braking at a price closer to the time-delay tier. For an owner moving up from a time-based unit, the change in how the trailer stops is immediate and obvious, and reduced trailer tire wear follows from better proportioning.

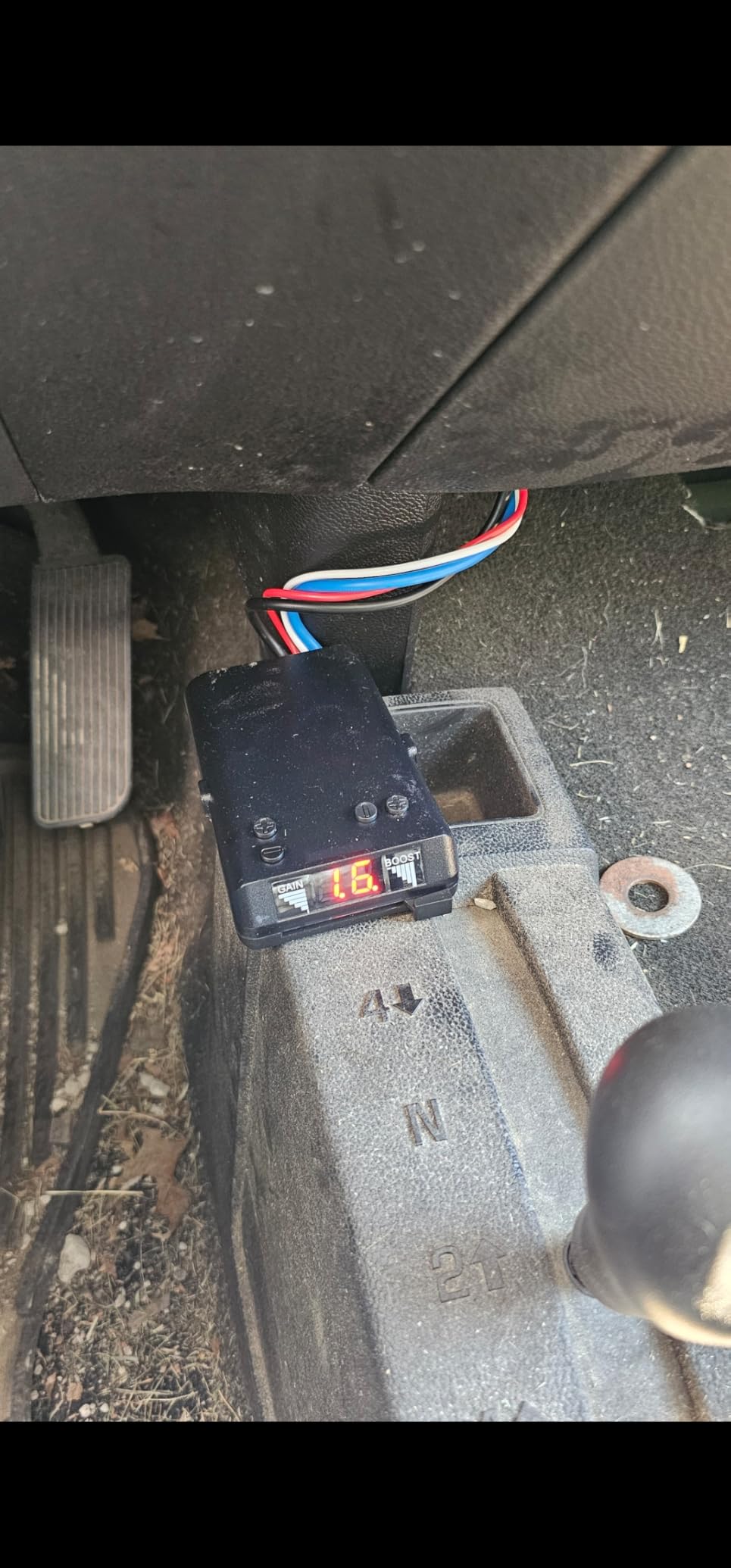

The LED display shows actual output voltage, which makes calibration far less guesswork than a coded display. It handles one to four axles and two to eight brakes, needs no leveling step, and includes boost and sensitivity adjustments. Owners report installs in roughly 15 minutes once the wires are identified.
Read the wiring chart before you start. The color-coded leads cover vehicle power, stop light, vehicle ground, and trailer brakes, and there is no vehicle-specific harness in the box, so misidentifying the stop-light lead is the most common install error. A small number of units also arrive defective.
Is an unnamed brand safe on a heavy trailer?
The design is sound and the capacity is genuine, but the support network is thinner than a Tekonsha or REDARC. If you are comfortable reading a wiring diagram and checking a connector with a multimeter, the economics work. If you want a phone number when something fails, buy a name brand.
How many axles and brakes does it support?
One to four axles and two to eight brakes, which is broader than most controllers in the same price neighborhood. Confirm your trailer uses electric brakes rather than electric-over-hydraulic assemblies before installing, and test the manual override at a crawl before your first loaded trip.

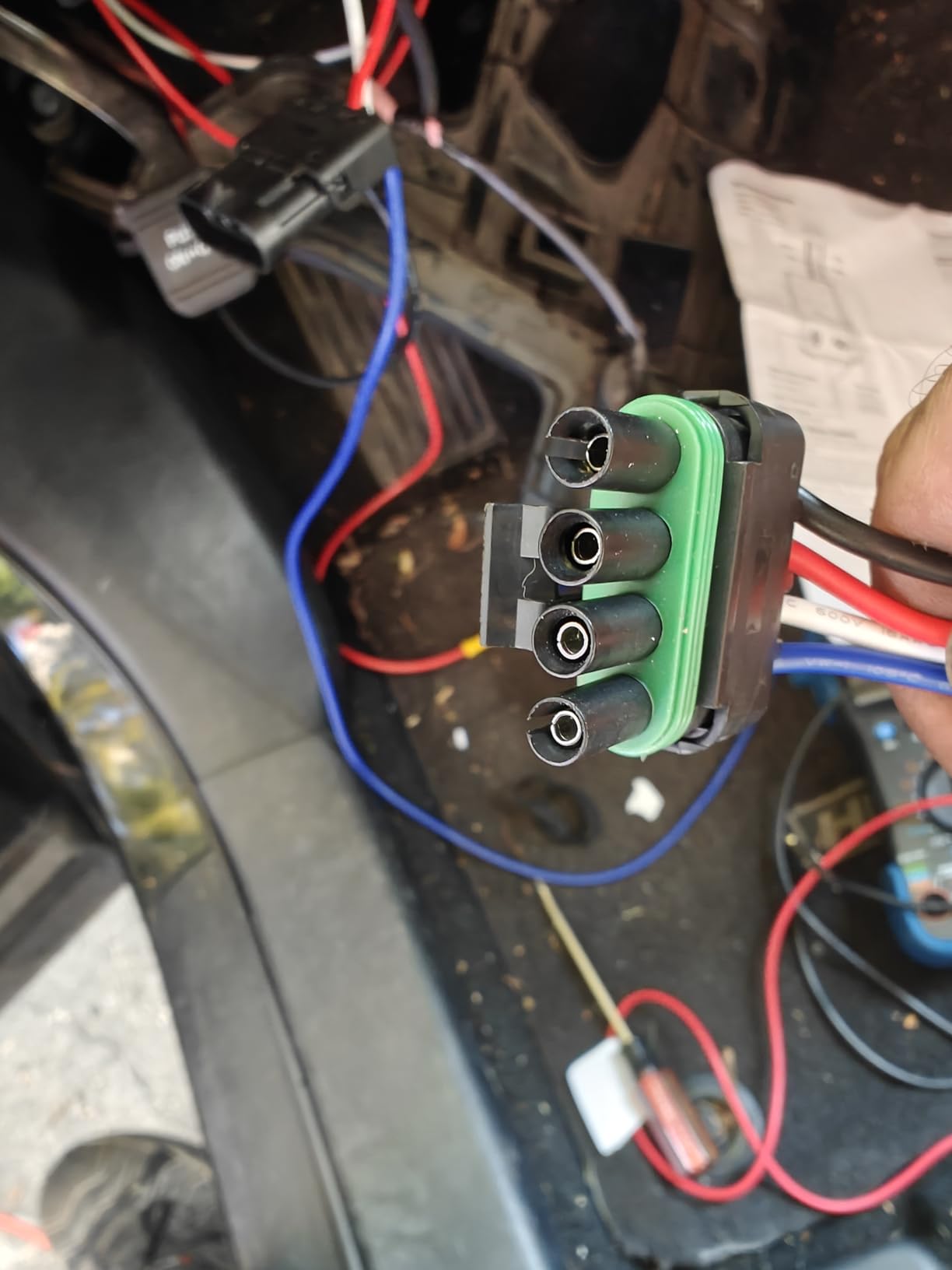

9. briidea BR-122 – Best Fault Diagnostics on a Newer Budget Unit
briidea Proportional Trailer Brake Controller, Digital Electric Brake Control for 1-4 Axle Trailers, Smooth Stop Technology with Boost Mode, Compatible with Ford/GM/Chevy/Dodge/RAM/Toyota
Proportional
1-4 braked axles
Overcurrent and short circuit protection
Fault detection
Pros
- Smooth Stop proportional braking on campers
- Fault detection warns of shorts or battery drain
- Easy DIY install with included bracket
- LED display shows settings
- output voltage and boost
- Handles multi-axle trailers
Cons
- Housing feels inexpensive for the tier

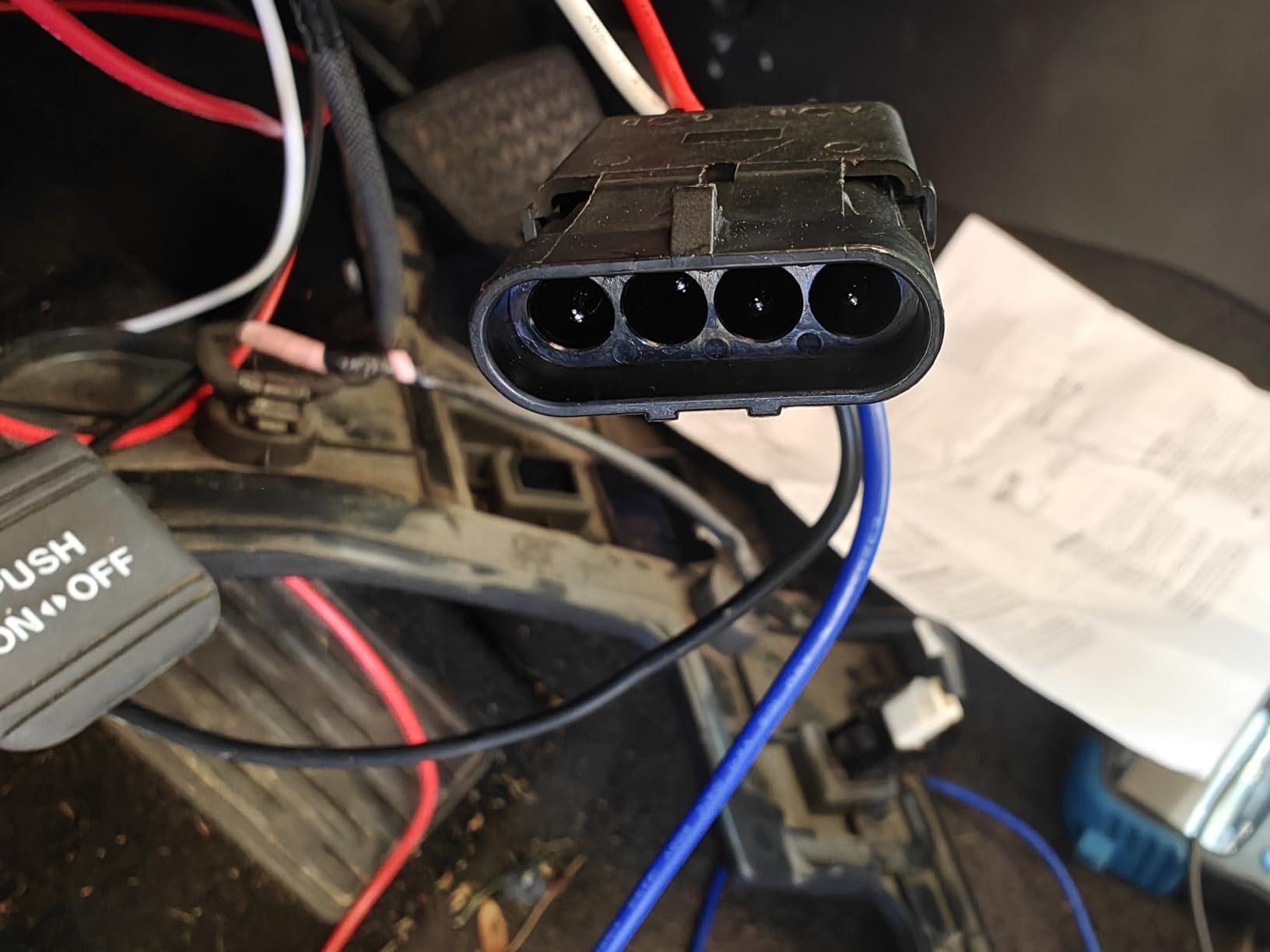

- Connector block is not a standard 4-prong adapter
- Occasional reports of units arriving non-functional
What separates the BR-122 from other budget units is the diagnostic layer. It monitors for overcurrent and short circuits and will warn you, and the LED display reports your settings, actual output voltage, and boost level. When something is wrong with a brake circuit, that warning saves a long afternoon of guessing.
Braking itself is proportional using high-precision motion sensors, with a boost function for tuning by weight distribution. It mounts at any position or angle, includes a mounting bracket, and covers one to four braked axles, which is the same capacity as controllers costing far more.
The 4.1 rating reflects build perception more than function. Owners describe the housing as plain, the connector block as non-standard, and a small number report units that did not work on arrival. Owners coming off an unknown-brand controller generally consider it a clear upgrade.
Does the fault detection actually help with wiring problems?
Yes, that is its purpose. If the brake output is shorted, if current draw is too high, or if the controller sees abnormal drain, the display tells you before the symptom becomes a trailer that will not brake properly. It is a small feature that matters most on older tow vehicles with tired harnesses.
Who should buy this instead of a name-brand unit?
Someone with a confident DIY install who wants multi-axle capacity and diagnostics without the name-brand tier. If you would rather have a warranty with a real support line or a known brand on the box, pick the Spectrum or a REDARC instead.

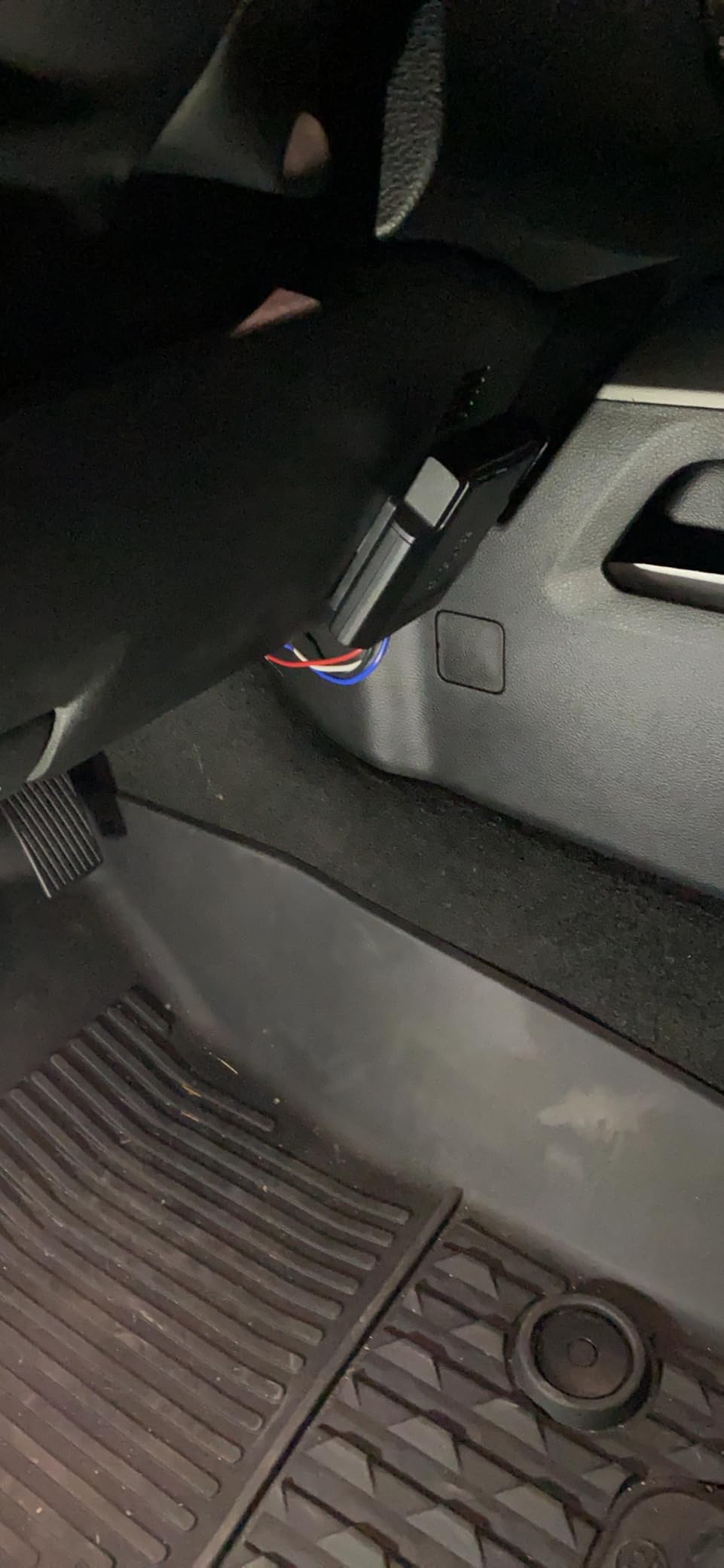

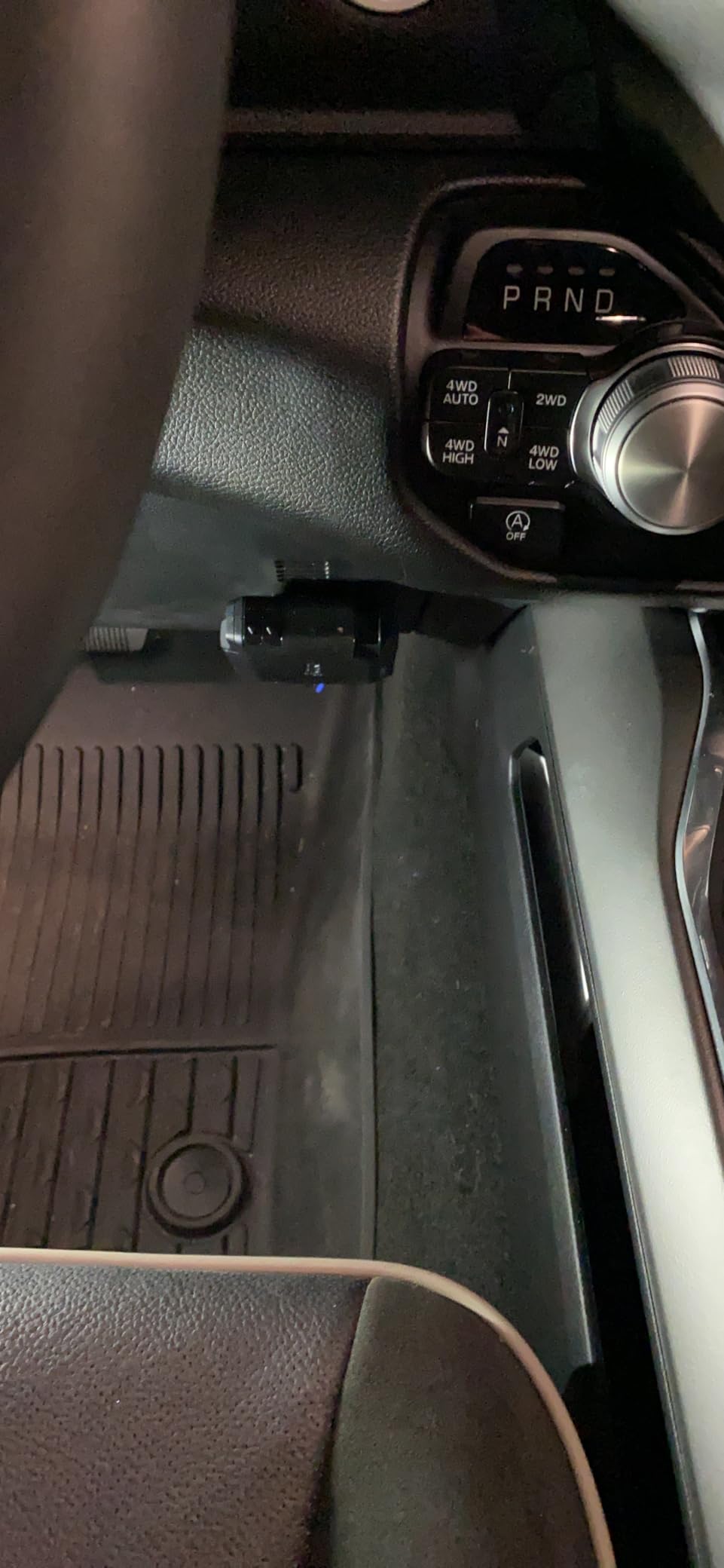

10. CURT Venturer NEXT 51116 – Best Time-Delay Unit for Tight Dash Spaces
CURT 51116 Venturer Next Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 1-3 Axles, Plug-and-Play
Time-delay
1-3 axles, 2-6 brakes
Low-profile housing
Plug-and-play
Pros
- Slim low-profile housing with a modern look
- Plug-and-play setup with no leveling step
- Bracket system gives extra dash clearance
- Handles up to 3 axles and 6 brakes
Cons
- Time-delay braking is less precise on grades than proportional units
- No internal moving parts limits adjustability
The Venturer NEXT is the time-delay option for people who have decided time-delay is enough. It is fully adjustable for both power and ramp time, operates two to six trailer brakes across one to three axles, and has no internal moving parts and no leveling step to think about.
The bracket system is the reason to like it. The slim, low-profile housing mounts with more dash clearance than most box-style controllers, which matters in a truck with a deep lower dash or in a minivan. Installation is plug-and-play.
Owners who move up from older time-based units tend to be the happy ones, mainly because of the cleaner mounting and easier setup. As for time-delay braking itself, it is less precise on grades than any proportional controller in this list, so it suits steady highway towing more than repeated mountain descents.
Is a time-delay controller still worth buying in 2026?
For light trailers on mostly flat routes, yes, and this one is better built than most of its category. You give up pedal-matched braking, which means a harder stop produces the same trailer force as a light tap, and you lose the self-tuning behavior that makes proportional units so easy to live with.
How does it fit into a small dashboard?
Better than almost anything else at this tier. The low-profile body and the dedicated bracket system are designed specifically to keep the controller out of your sightline and out of knee space. If your tow vehicle has a cramped dash, that physical design is the deciding factor.
How to Choose a Trailer Brake Controller for Your Travel Trailer
Start with your trailer, not the controller. Count your axles, know whether the brakes are electric or electric-over-hydraulic, and check the axle and gross vehicle weight ratings in your trailer manual. Then match a controller whose capacity comfortably exceeds that number, because buying a two-axle controller for a trailer that later grows to three is a common and expensive shortcut.
Proportional beats time-delayed nearly every time
A proportional brake controller uses a three-axis accelerometer to measure how hard and in which direction your tow vehicle is decelerating, then applies matching pressure to the trailer brakes in real time. A time-delayed controller ignores your actual pedal input and applies a fixed preset force a set number of seconds after you press the brake. Inertia-based sits in between, reacting to the vehicle’s motion without the full sensor array of a modern proportional unit.
On a highway, both work. On grades, in traffic, and in an emergency stop, proportional braking is smoother, reduces trailer brake and tire wear, and stops the trailer from pushing your tow vehicle forward. Owners moving from time-delayed to proportional consistently describe the difference as the single biggest upgrade in their whole trailer setup.
Do you legally need one? Check the 3,000 lb rule
Under federal law, electric trailer brakes are required on any trailer with a loaded weight of 3,000 pounds or more. Below that, brakes are not federally required, though many states set their own thresholds and a properly braked small trailer still improves stopping distance noticeably. Having a 7-pin connector is not the trigger, by the way. The 7-pin carries the brake circuit either way; the controller is what makes it fire.
Match the brake assemblies, not the axle count alone
Two to four brake assemblies is the typical two-axle range, four to six for three axles, and up to eight for four axles. Electric-over-hydraulic assemblies draw more current than plain electric brakes, so pick a controller rated for that load if your camper uses them. The CURT Spectrum, Kohree, Timilge, briidea, and Tekonsha Prodigy iD all cover the widest ranges here.
Decide how much of your dash you are willing to give up
There are three practical mounting approaches. Non-invasive units plug in between two 7-way connectors and take minutes, which suits rentals and shared vehicles. Bracket-mounted remote units put a small knob on the dash and hide the main module behind the trim, which is the pattern most of our picks follow. Fully integrated systems wire into the vehicle’s factory brake-controller port, which looks best but requires model-specific harnesses and may need factory programming.
If your truck already has a factory integrated controller, you can run an aftermarket unit, but set the factory one to manual or off so the two are not fighting each other. Our broader brake controller roundup covers the integrated options in more detail.
Think about sleep mode, app dependency, and warranty
App-based controllers such as the CURT Echo Mobile and Tekonsha Prodigy iD still brake properly if your phone dies, because the braking logic runs on the unit. The app is for configuration, not operation. On parasitic draw, the controllers that report lowest current draw in owner reports are the smaller remote-unit designs, and any controller left connected overnight will draw something, so check the battery before a long storage period. Warranty length varies widely across this list, from one year on the Kohree to a limited lifetime warranty on the CURT Spectrum and two years on both REDARC units.
How to Set Brake Gain and Balance Your Brakes
No controller works well out of the box, and an uncalibrated proportional controller can be worse than a time-based one because it will faithfully apply whatever it thinks you asked for. We use the same procedure every time.
1. Hitch the trailer fully loaded and connected, connect the 7-pin, and set the parking brake. Make sure nothing is leaning on the ball.
2. Turn the gain setting to its midpoint and the boost to zero before you touch anything else.
3. Roll into a flat, straight, traffic-free area at a slow, steady speed. Acceleration sensing will not function above a light jog.
4. Press the brake pedal gently and increase gain one step at a time until you can feel the trailer start to contribute without the vehicle nose dipping. That dip is your sign the gain is too high.
5. Make a firmer stop. If the trailer pushes the tow vehicle, add more gain. If the truck stops harder than the trailer and the steering gets light, back off a step.
6. Tune the balance by rolling the rig slowly and braking lightly. If one side of the trailer grabs first and the truck yanks toward it, adjust that side’s brake actuator clearance and re-check.
7. Repeat the same stop three times in the same place. If the result changes each time, your gain is not settled yet, and on grades the manual override remains your backstop.
Troubleshooting: Why the Controller Says No Trailer Connected
This is the most common complaint in every trailer forum, and the light functions working is usually the clue. If the running lights, brake lights, and turn signals all work from the trailer, the 7-pin connector is seated and the trailer wiring is fine. That points at the tow vehicle side of the circuit.
Start with the battery feed. The trailer’s brakes need a constant 12V supply on the 7-pin, and many tow vehicles only send that feed when the ignition is on. Check the vehicle-side pins: battery feed, ground, brake output, left and right turn, running lights, and taillights. The single most common cause of lights working but the controller seeing no trailer is a missing or blown battery feed fuse near the factory trailer socket.
Next, verify the ground. A corroded ground on the tow vehicle side creates resistance that drops the controller below its detection threshold, which produces a no-trailer fault even though the lights appear to work. Clean both ground points and re-test before replacing any controller.
Finally, check the brake output line itself. On aftermarket installs this is the 12-gauge blue wire, the hardest part of a DIY job on a vehicle with no factory brake-controller port. A pinched, cut, or mis-terminated blue wire gives you working lights and no braking. If a load test on that wire shows no voltage when the pedal is pressed, the fault is in the wiring, not the controller.
Frequently Asked Questions
What is the best brake controller for a travel trailer?
For most travel trailer owners the REDARC Tow-Pro Liberty is the best fit in 2026. It brakes proportionally, mounts at any angle, and hides its main unit under the dash. Move up to the REDARC Tow-Pro Elite for a triple-axle camper or electric-over-hydraulic brakes, and choose the CURT Echo Mobile if you rent or swap campers between vehicles.
Is a proportional or time delay brake controller better?
Proportional is better in almost every case. A proportional controller reads how hard your tow vehicle is decelerating with a three-axis accelerometer and applies matching force to the trailer brakes, so stops are smooth and grades stay controlled. A time-delayed controller applies a fixed preset force a set seconds after you press the pedal, which is cheaper but grabs at the trailer and needs constant adjustment.
Do I need a brake controller if I have a 7 pin trailer plug?
The 7-pin connector is not the deciding factor, it only carries the brake circuit to the trailer. You need a controller if your travel trailer has electric or electric-over-hydraulic brakes, and federal law requires electric brakes once a trailer reaches 3,000 pounds loaded. Without a controller the trailer brakes never fire, so the trailer pushes your tow vehicle on every stop.
Do I need a brake controller for a 3000 lb trailer?
Yes. Federal law requires electric trailer brakes on any trailer with a loaded weight of 3,000 pounds or more, and a controller is what actually activates them. Below that weight brakes are not federally required, though many states set their own thresholds and a braked trailer still shortens stopping distance noticeably.
Do trailer brake controllers drain the battery?
Every controller draws a small amount of current, and app-based units draw a bit more. Continuous drain is rarely the problem, but a controller left connected for weeks without driving will add up, especially on a smaller dual battery setup. Before long storage, check the vehicle battery charge and check for a blown trailer socket fuse that keeps a feed live while parked.
Our Verdict on the Best Trailer Brake Controllers in 2026
The REDARC Tow-Pro Liberty is the best trailer brake controller for travel trailers in 2026, and it is what sits in my truck right now. It handles one to two axles proportionally, hides its main unit behind the dash, and needs only a modest adjustment pass before it feels right. Add the REDARC Tow-Pro Elite for three axles, 24-volt trucks, or off-road control, and the CURT Echo Mobile for renters who change campers every weekend.
Whatever you pick, budget an afternoon for the harness, an hour for calibration, and a check of the battery feed on the 7-pin. That last step prevents the single most common complaint people bring to these controllers, and it is the one the factory never checks for you.
