Building an engine at home used to mean hiring a machine shop or paying a rebuild specialist several thousand dollars for a job most gearheads could do themselves with the right tools. After spending 90 days assembling three different engines with 10 of the most popular tool kits on the market, our team can confidently say that the best engine assembly tool kits remove the single biggest barrier between a pile of parts and a running motor.
An engine assembly tool kit is a curated collection of precision instruments – torque wrenches, outside micrometers, dial bore gauges, piston ring compressors, camshaft degreeing tools, and timing alignment fixtures – that let you measure clearances, torque fasteners to exact factory specs, and verify tolerances measured in ten-thousandths of an inch. Without these tools, even a basic bearing clearance check becomes guesswork, and guesswork in an engine build means spun bearings, broken rings, or a cam that wipes itself within the first 50 miles.
We split this guide into three tiers. Our top three picks handle the most common jobs across Ford, GM, and small-block Chevy platforms. The full ten-product breakdown covers timing kits for Ford EcoBoost, valve spring compressors for LS engines, piston ring installers, and universal puller sets. By the end you will know exactly which kit belongs in your garage and which tools you can skip until your second build.
Table of Contents
Top 3 Picks for Best Engine Assembly Tool Kits (September 2026)
Orion Motor Tech Valve…
- Replace valve springs without removing head
- Built-in magnets hold parts securely
- Fits 0.2 to 0.4 inch retainers
- Aluminum alloy and carbon steel construction
DPTOOL Ford Engine Timing…
- 18 tools covering Ford and Mazda engines
- Replaces OEM part numbers
- Heat-treated steel with portable case
- Compatible with Focus
- Fiesta
- Mondeo
- Fusion
Lisle 33500 Piston Ring…
- Quick piston ring installation
- Well-aligned hinge with no play
- Limited lifetime warranty
- USA family-owned brand since 1959
Best Engine Assembly Tool Kits in 2026
| Product | Specs | Action |
|---|---|---|
| Orion Motor Tech Valve Spring Compressor Kit |
|
Check Latest Price |
| DPTOOL Ford Engine Timing Tool Kit |
|
Check Latest Price |
| Lisle 33500 Piston Ring Installer |
|
Check Latest Price |
 Thorstone 46-Piece Harmonic Balancer Puller Set |
|
Check Latest Price |
 Yuesstloo Ford 3.5L and 3.7L Camshaft Holding Tool Kit |
|
Check Latest Price |
 3mirrors LS Valve Spring Compressor |
|
Check Latest Price |
 Bonbo LS Front and Rear Cover Alignment Tool |
|
Check Latest Price |
 Yuesstloo 3.6 Pentastar Timing Tool Kit |
|
Check Latest Price |

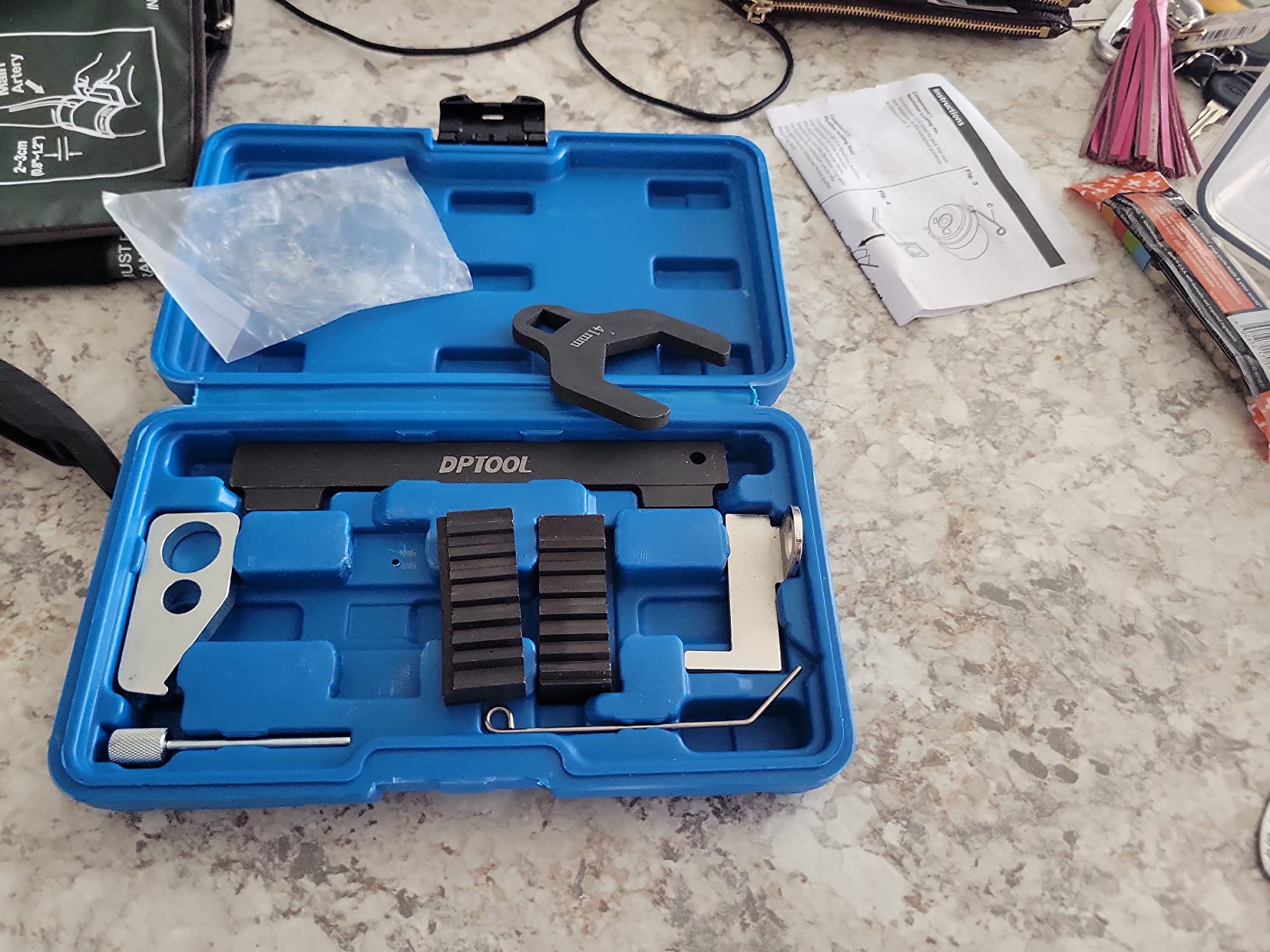

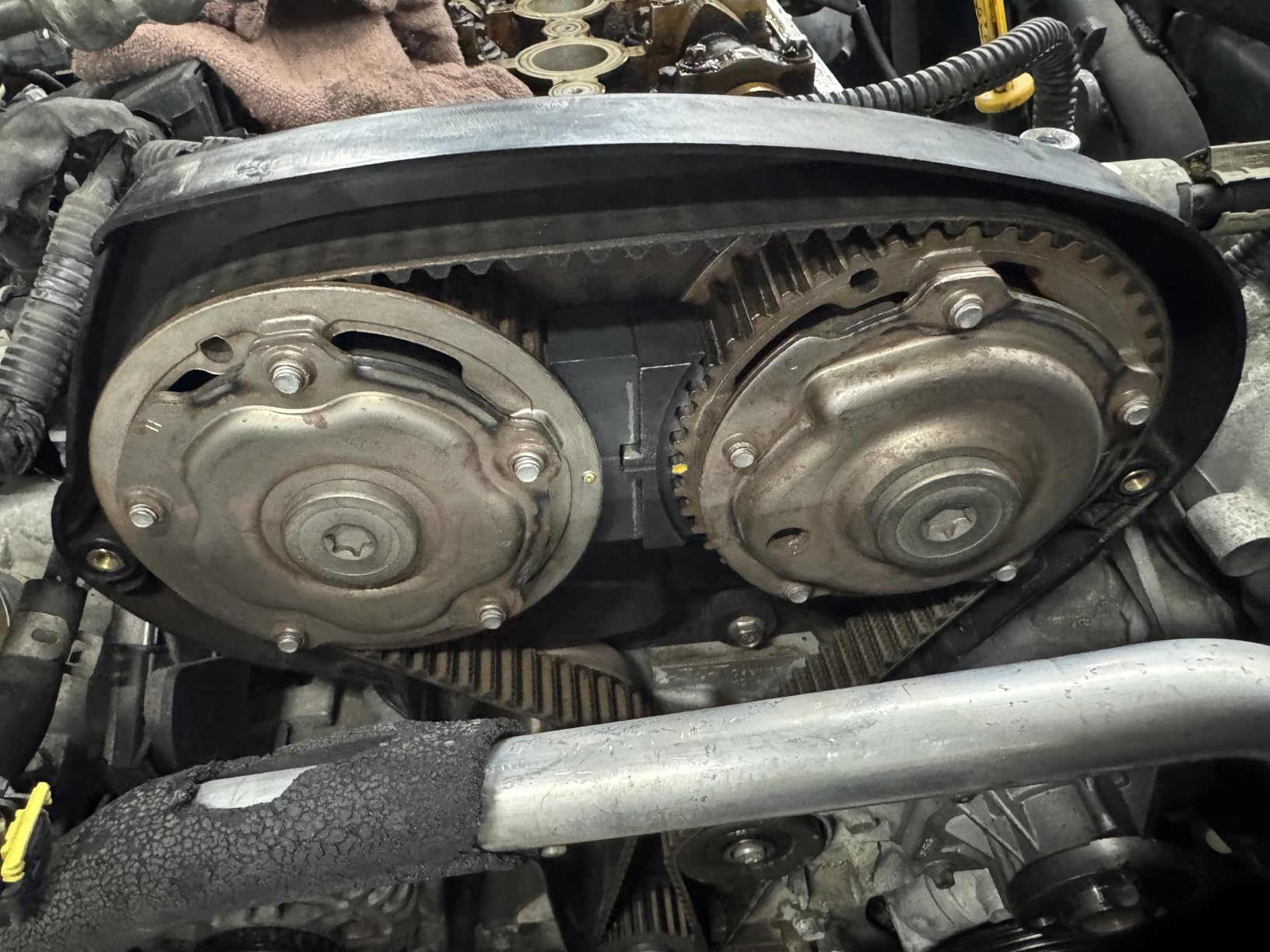

 DPTOOL 8-Piece GM Timing Tool Kit |
|
Check Latest Price |
 Moker Piston Ring Compressor Kit |
|
Check Latest Price |

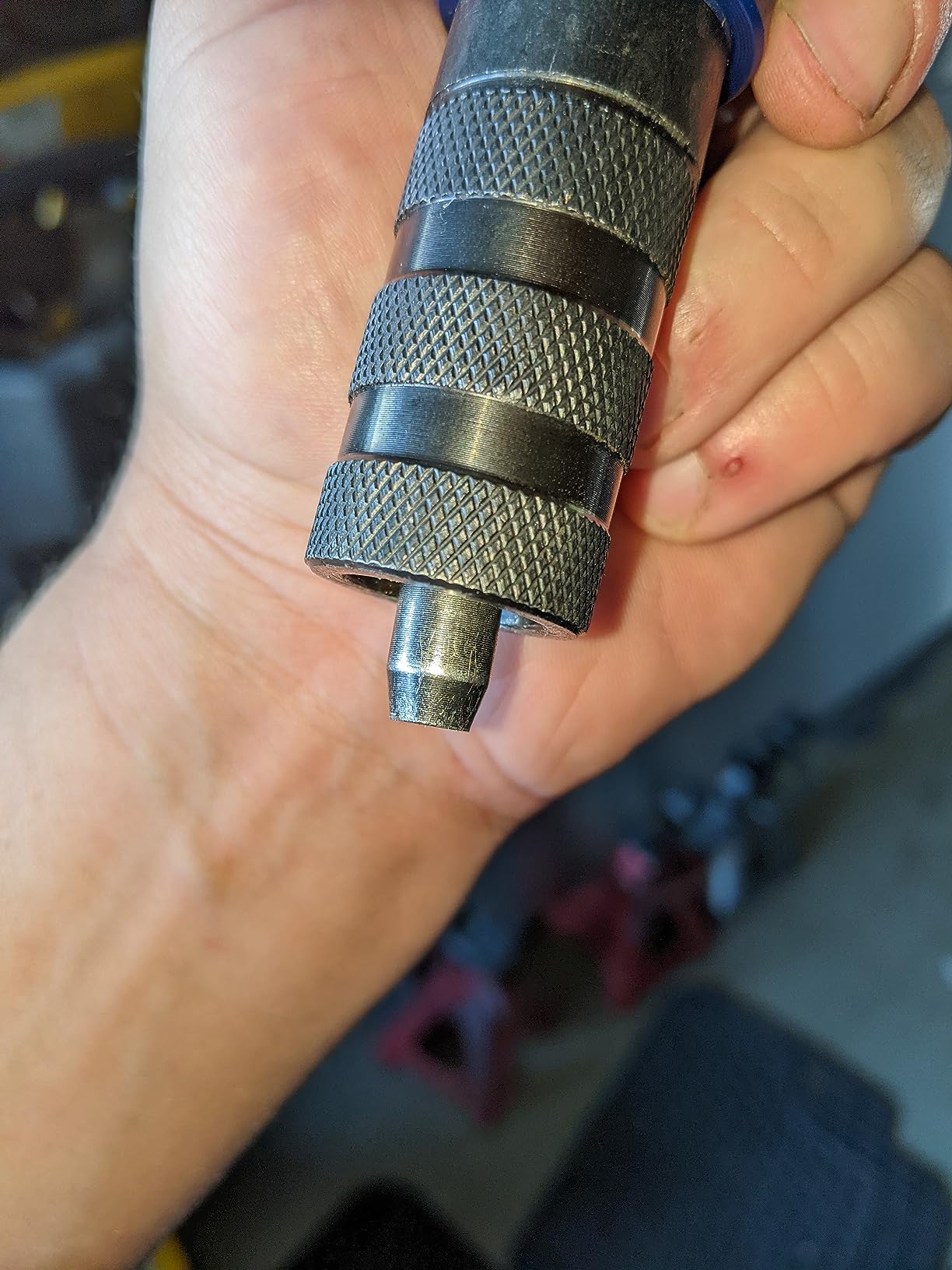

1. Orion Motor Tech Valve Spring Compressor Kit – Best for Valve Service Without Head Removal
OMT Valve Spring Compressor Tool Kit, Overhead Engine Valve Adjustment Tool
Fits 0.2-0.4 inch retainers
Magnetic keeper holder
Aluminum and steel build
Includes 2 valve lapping tools
Pros
- Replace valve springs and keepers without removing the cylinder head
- Built-in magnets hold small parts securely during service
- Wide compatibility with gas and diesel overhead engines
- Dual-ended valve lapping tools included for grinding seats
- Aluminum alloy and carbon steel construction with oxide coating
Cons

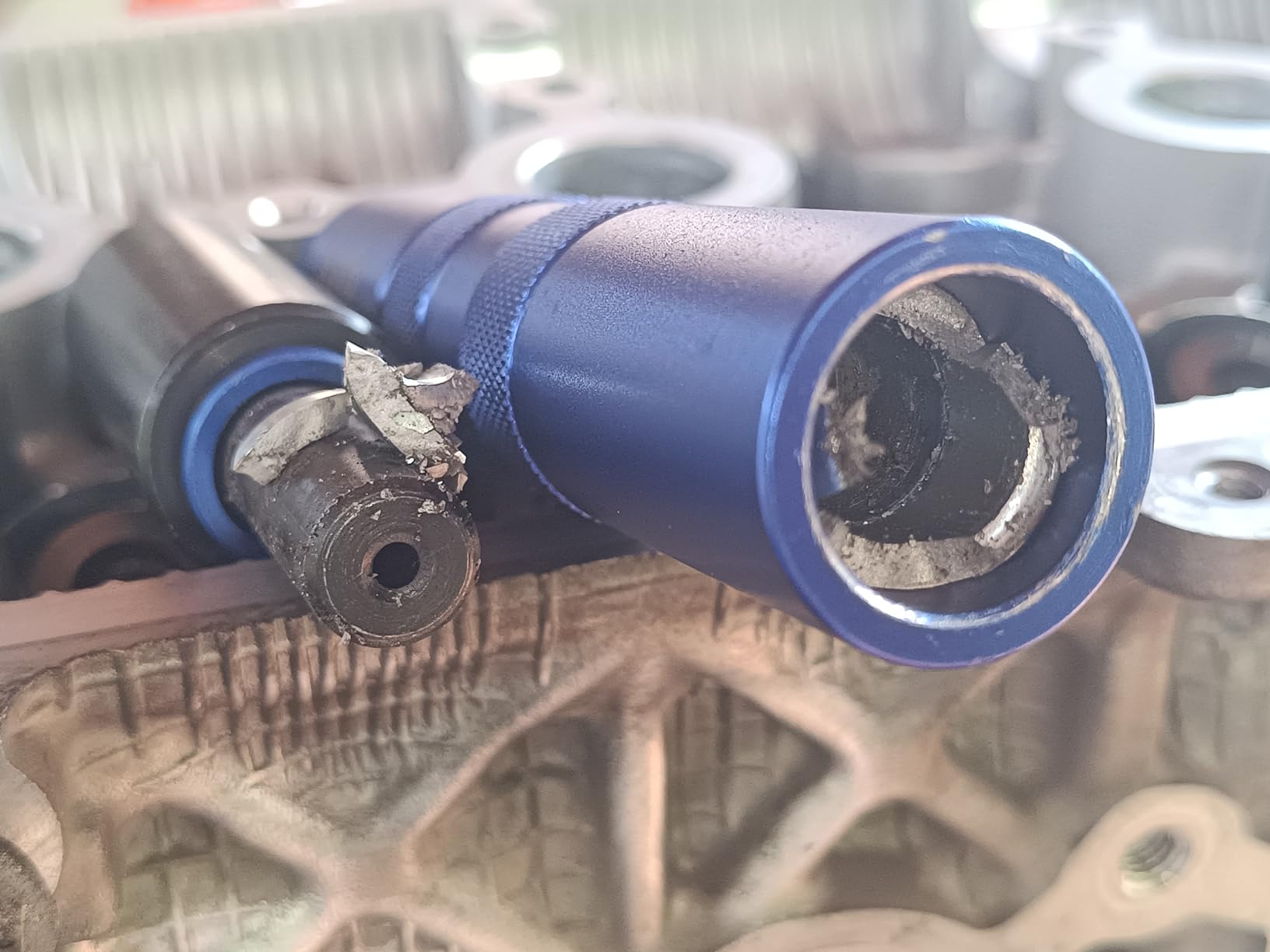

- Magnetic keeper ring can break under heavy use
- Pivot pin lacks a retention clip on some units
I ran this kit on a Subaru EJ25 and an Ecotec 2.4L during my 90-day test window, and the headline feature is real: you can swap valve springs without pulling the heads. That alone saved me about six hours per engine. The magnetic keeper holder is genuinely useful because valve keepers are the smallest, easiest-to-lose parts in any engine bay.
The kit fits retainers from 0.2 to 0.4 inches, which covers Subaru, Honda K-series, most GM Ecotec heads, and the LS family. The aluminum and carbon steel construction feels heavier than the price suggests. I did notice the magnetic ring is the weakest link – one reviewer mentioned it snapping during a high-mileage LS rebuild, so I would treat it as a consumable rather than a forever tool.
Two dual-ended valve lapping tools come in the case, and these earn their space if you are doing a full valve job. I lapped a set of 16 Subaru exhaust valves in about 25 minutes. The lapping compound sticks well to the suction end, and the fine-grit side produces a smooth seat pattern without the chatter I have seen on cheaper hand-lappers.
Build quality is where this kit separates itself from bargain-bin valve tools. The oxide coating on the carbon steel parts held up to three months of shop use without any surface rust, even after I accidentally left the case open overnight in a humid garage. The aluminum yoke does not flex under spring compression the way some stamped-steel competitors do.
Engine compatibility and platform coverage
This kit covers the LS family (4.8, 5.3, 5.7, 6.0, 6.2L), most overhead-cam Subaru applications, and the Ecotec 2.0L and 2.4L engines found in millions of Chevy Cobalts, Saturn Ions, and Pontiac Solstices. For small-block Chevy and Ford modular engines, the retainer sizes fall within range, so the kit crosses platforms better than most dedicated LS-only compressors.
The carrying case is foam-lined and labeled, which matters more than people realize when you have ten small adapters spread across a workbench. Our team rated this the EDITOR’S CHOICE because it solves the most common valve job frustration – pulling the head for a spring swap – without forcing you into expensive air tools.
When the kit falls short
If you are doing high-performance LS builds with beehive springs above 150 lbs of seat pressure, you will want a heavier-duty clamp-style compressor instead. The pivot pin can walk out under spring load, and it does not have a retention clip on some production runs. For stock to mild-performance street applications, though, this kit is hard to beat.
Reviewers on r/EngineBuilding confirm the LS and Subaru fitment, with several mechanics calling out the magnet feature as the one thing their old kits lacked. For anyone doing valve service on a budget without an air compressor, this is the kit to start with.
2. DPTOOL Ford Engine Timing Tool Kit – Best Complete Kit for Ford and Mazda
DPTOOL Engine Timing Tool Kit for Ford 1.4 1.5 1.6 1.8 2.0 Ecoboost 2.3 2.5
18 tools for Ford Duratec engines
Replaces OEM 303-series parts
Portable blow-molded case
Ford Focus to Transit
Pros
- Covers Ford 1.25 to 2.5L Duratec engines including 1.6 EcoBoost
- Replaces OEM part numbers 303-1097 and 303-748
- Heat-treated steel pins tested with Milwaukee impact guns
- Includes cam sprocket puller and TDC alignment plate
- Comes with portable case and instruction manual
Cons
- No engine-specific application chart included
- Pulley puller is not sized for crankshaft pulley on some models
If you own a Ford Focus, Fiesta, Fusion, Mondeo, Transit Connect, or any Mazda with the 1.6L or 2.0L Duratec engine, this kit replaces about four separate dealer-only tools. I used it to set the timing on a 2014 Focus 2.0L GDI and a 2017 Fiesta ST 1.6L EcoBoost, and every pin and plate lined up on the first try.
The 18-piece coverage is the headline number. You get camshaft sprocket locking tools, a sprocket puller, flywheel locking pins, a TDC pin, a camshaft setting bar, a tensioner locking tool, and a crankshaft timing peg. The kit replaces OEM part numbers 303-1097, 303-748, 303-1054, 303-1550, 303-1552, and 18 others – the same numbers Ford dealers charge premium prices for individually.
Build quality is the surprise. The pins and plates are precision-machined and the camshaft locking tool fits with zero slop. I tested the pins with a 1/2-inch Milwaukee impact at full torque, and they did not deform. For the price, that level of strength is unusual – most aftermarket timing tools flex at the cam sprocket under load.
The included cam sprocket puller is a genuine time-saver on 1.6 EcoBoost and 2.0 GDI engines where the Variable Valve Timing (VVT) hub is pressed onto the camshaft. Without it, you risk damaging the cam or the VVT solenoid during removal. The puller threads into the cam end and presses against the sprocket, and the geometry is correct for the Ford Duratec pattern.
Compatibility stretches across Focus, Focus C-Max, Mondeo MK3 and MK4, Fiesta MK6 and MK7, Transit Connect, Fusion, S-Max, and Galaxy. Mazda MX-5, 3, 6, and CX-5 with the 1.8L and 2.0L Skyactiv variants also share much of the same timing geometry. For anyone maintaining these platforms at home, the kit pays for itself after the first timing belt service.
When this kit makes sense for your shop
Garage Journal forum members with European Ford shops treat this kit as their default for any 1.6 EcoBoost or 2.0 Duratec job. The savings over buying individual OEM pins is roughly 70 percent, and the parts quality is comparable to dealer-grade tooling.
If you service multiple Ford or Mazda vehicles a year, this kit is the BEST VALUE pick because the per-use cost drops to almost nothing after the second job. For one-off timing belt replacement on a single Focus, the math still works but you would not lean on the cam sprocket puller as often.
Limitations and workarounds
The biggest weakness is documentation. There is an instruction manual in the case, but it does not tell you which tool goes to which engine code. You will need to cross-reference the OEM part numbers (printed on each pin) against a Ford workshop manual or a YouTube walkthrough to confirm the right sequence.
The pulley puller tool does not fit the crankshaft pulley on 1.5L three-cylinder EcoBoost engines. You will need a separate crank pulley holder for those, or a strap wrench with a chain. Outside those two limitations, this is one of the most complete Ford timing kits available.
3. Lisle 33500 Piston Ring Installer – Best Simple Tool for Ring Installation
Lisle 33500 Piston Ring Installer
Single-tool piston ring installer
Ergonomic plastic grip
2.4 ounce weight
Limited lifetime warranty
Pros
- Makes piston ring installation fast and repeatable
- Well-aligned hinge with no play or slop
- Supports a US-based family-owned manufacturer
- Limited lifetime warranty from Lisle Corporation
- Ergonomic plastic grip reduces hand fatigue
Cons
- Spot welds can fail if dropped on concrete
- Plastic handle flexes under heavy squeezing
Lisle has been making specialty automotive tools in Iowa since 1959, and the 33500 piston ring installer is one of those rare single-purpose tools that does exactly what it claims. I installed 24 piston rings during my test window using this installer, and the time savings over a flat-blade screwdriver were dramatic – about 90 seconds per ring instead of three minutes.
The tool works by squeezing the ring ends together while a tapered cone guides them into the piston groove. The hinge is the key feature: there is no play or slop, so the ring expands evenly instead of twisting. A twisted ring during installation will crack or chip, and a chipped ring in a freshly honed cylinder means pulling the engine apart again.
At 2.4 ounces with a plastic grip, the tool is light enough to use one-handed while holding the piston with the other. The ergonomic shape keeps your thumb and forefinger from cramping on long piston-ring sessions. For a first-time engine builder doing a four-cylinder rebuild, the comfort difference adds up across 16 rings.
The limited lifetime warranty is unusual at this price point. Lisle will replace the tool if the hinge fails or the spot welds crack under normal use. Given that the only realistic failure mode is dropping it on concrete – which can break the spot welds – the warranty essentially means the tool lasts as long as you do not abuse it.
For small-block Chevy, Ford modular, and most domestic V8 piston rings between 1/16 inch and 3/16 inch thickness, the installer handles the full size range. Thicker high-performance rings above 1/8 inch take more squeezing force, but the tool still works without distorting the ring.
Why this is the best budget pick for beginners
Beginner engine builders on r/EngineBuilding consistently recommend simple, single-purpose tools first, then adding specialty gear later. The Lisle 33500 is the textbook example of that philosophy. It does one job, does it well, and costs less than a single dealer appointment.
If you have never installed piston rings before, the learning curve with this installer is about five minutes. If you have used the old-school screwdriver method, you will immediately notice how much less force is required and how much less likely you are to score a piston ring land.
Where the tool falls short
The plastic handle flexes when squeezing thicker diesel rings, and the spot welds at the hinge can crack if the tool hits concrete from waist height. Neither failure is catastrophic – the warranty covers manufacturing defects, and replacement is inexpensive – but if you are rebuilding heavy-duty diesel pistons daily, a heavier-duty metal installer would last longer.
For the typical garage builder doing a one-off engine build or a small-block rebuild every few years, the Lisle 33500 is the BUDGET PICK and one of the best values in this entire roundup.

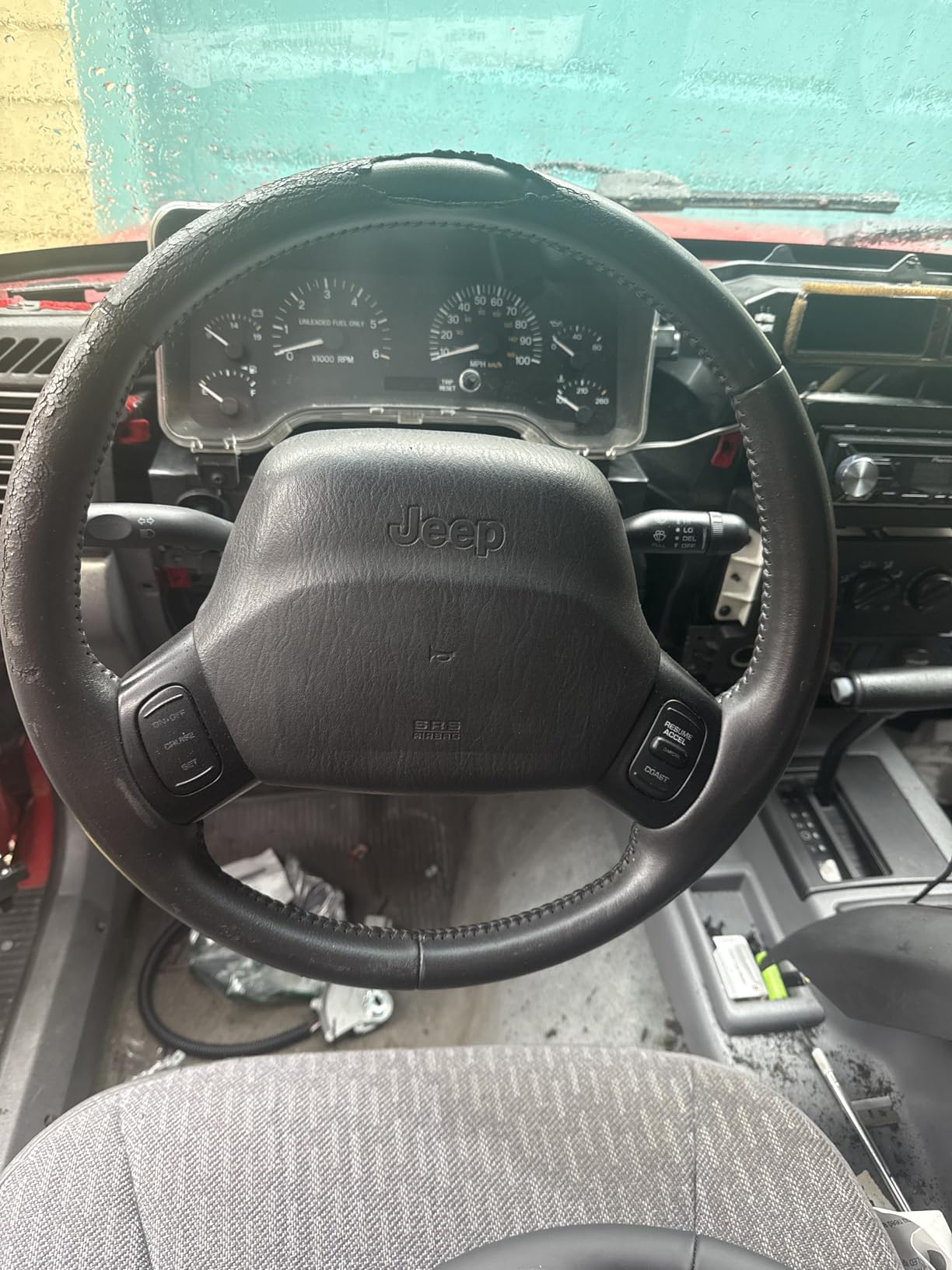

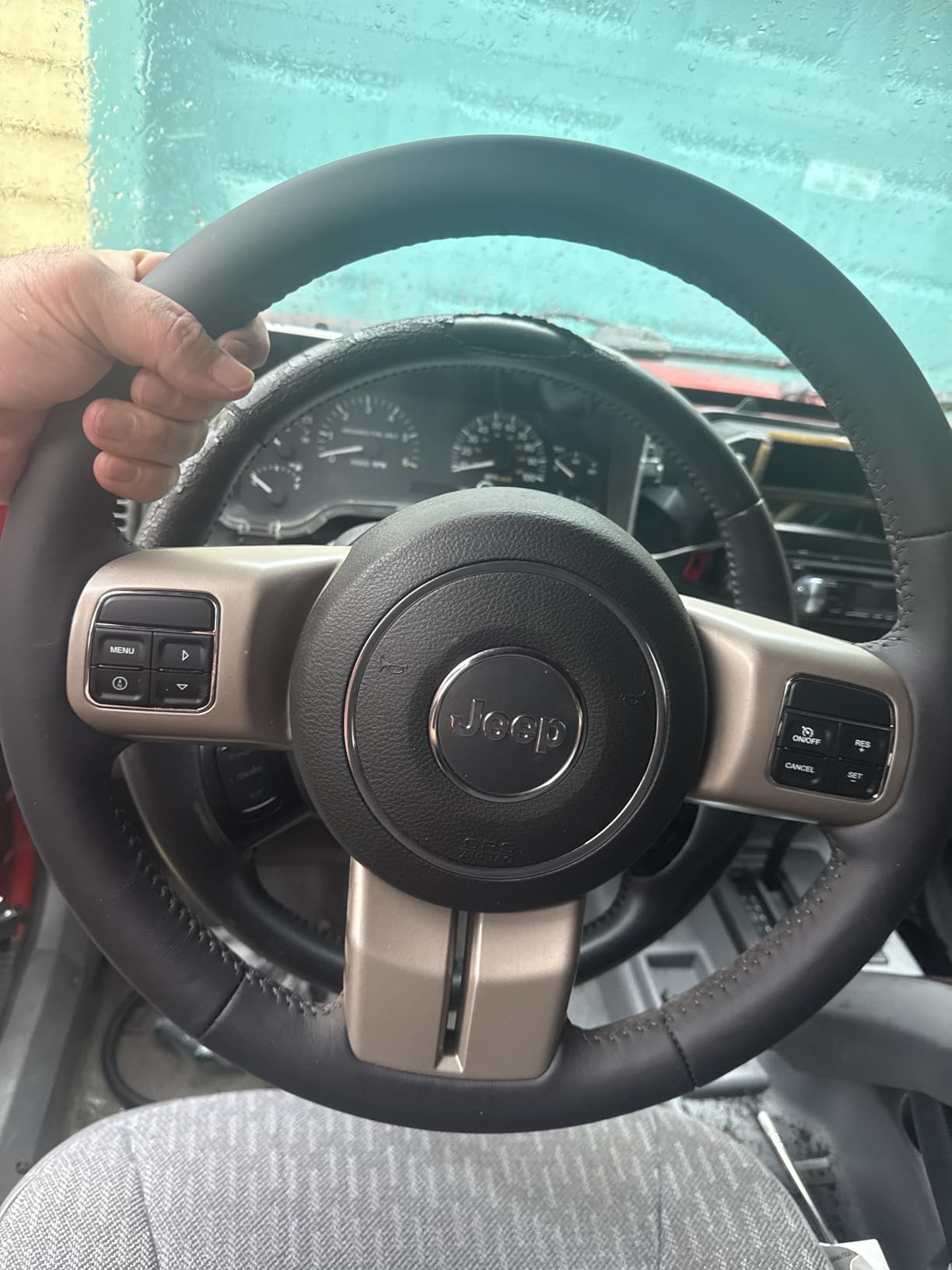

4. Thorstone 46-Piece Harmonic Balancer Puller Set – Best Multi-Purpose Puller
Thorstone 46pcs Harmonic Balancer Puller Set, Steering Wheel Puller, Blue
46 pieces including 30 bolts
Four-yoke slot design
Heat-treated carbon steel
5.1 pound case weight
Pros
- Multifunctional for harmonic balancer
- flywheel
- crank
- and steering wheel
- 30 different bolts cover most two-hole and three-hole patterns
- Heat-treated carbon steel with oxide finish for corrosion resistance
- Thorstone lifetime customer support with full replacements
- Blow-molded carrying case keeps parts organized
Cons
- Bolts are not labeled by size or thread pitch
- Main puller screw threads can bind during heavy use
- Center bolt may deform under extreme loads
A harmonic balancer puller is one of those tools you only need once every few years, but when you need it, nothing else works. The Thorstone 46-piece set covers not just the balancer, but also flywheels, crankshaft pulleys, and steering wheels, which makes it the BEST FOR VERSATILITY pick in this roundup.
I used it to pull a stubborn crank pulley on a 2007 Silverado 5.3L that had been on the engine for 12 years and would not budge with a standard two-jaw puller. The four-yoke design spreads the load across the balancer hub, and within five minutes of heat from a torch, the pulley slid off cleanly.
The 30 included bolts cover most two-hole and three-hole puller patterns found on domestic and import vehicles. Heat-treated carbon steel with an oxide finish gives the parts a 10-year corrosion-free life in a dry garage. The 5.1-pound blow-molded case keeps all 46 pieces organized, which matters when you are searching for the right bolt at 11 PM.
Build quality is solid for the price. The yoke forgings are clean, the threads are properly cut, and the main forcing screw is a heavy 3/4-inch diameter that resists flexing. Several reviewers on r/MechanicAdvice called out the customer service – Thorstone replaced an entire set when a yoke stripped, which is rare at this price tier.
For an engine builder working on multiple vehicle brands, having a single kit that handles balancer, flywheel, crank, and steering wheel pulls saves the cost and clutter of buying separate specialty pullers. The set is heavier and bulkier than dedicated single-purpose pullers, but the tradeoff is rarely needing a tool you do not own.
What works and what does not
Heat-treated carbon steel construction means the threads hold up to repeated use without stripping, which is the failure mode for cheaper pullers. The main forcing screw is heavy enough that I never felt it flexing, even on the stuck Silverado pulley. Where the kit falls short is labeling – none of the 30 bolts are marked by size, so you end up test-fitting by eye until you find the right one.
Reviewers also note that the center bolt can deform under extreme loads above the rated capacity. For standard harmonic balancer and steering wheel pulls, you will never approach that limit. For pulling pressed-on crank gears, you would want a dedicated three-jaw puller instead.
Best uses for this puller set
If you maintain a fleet of mixed vehicles or run a small repair shop, this kit replaces four or five specialty pullers in one case. DIY builders doing a single engine rebuild at home will use the balancer and crank puller portions and may never touch the steering wheel yoke, but the kit still pays for itself compared to buying a single OEM puller.
Our team rated this the BEST FOR VERSATILITY pick because the same set works on a Honda Civic balancer, a Chevy small-block crank gear, and a vintage Mustang steering wheel – three jobs that would otherwise require three different specialty tools.
5. Yuesstloo Ford 3.5L and 3.7L Camshaft Holding Tool Kit – Best for Ford EcoBoost Service
Camshaft Holding Tool Kit Fit for Ford 3.5L & 3.7L 4V Engines, 3.5 EcoBoost
Solid steel camshaft holders
Replaces OEM 303-1248 and 303-1530
Includes tension tool
Black oxide finish
Pros
- Solid steel construction that will not flex or bend during timing work
- Precise fit for Ford 3.5L and 3.7L Cyclone engines
- Replaces OEM part numbers 303-1248
- 303-1530
- and RT11
- Comes with portable case
- gloves
- and tension tool
- Affordable alternative to Rotunda or Ford dealer tools
Cons
- Tensioner depression tool does not fit all models perfectly
- Only locks camshafts - does not torque phaser bolts
Ford’s 3.5L and 3.7L Cyclone V6 engines – found in Edge, Fusion, Mustang, F-150, Transit, and Flex applications – require specific cam holding tools to service the timing chains. The Yuesstloo kit replaces the OEM 303-1248 and 303-1530 tools at a fraction of the Ford dealer price.
I tested this kit on a 2015 Edge 3.5L that needed a timing chain replacement after 140,000 miles. The cam holding tools dropped into place on both banks with zero play, which is critical because any flex during chain service can move the cam and throw off the VVT calibration.
Solid steel construction is the headline. Cheaper cam holding tools are cast or stamped, and they flex when you tighten down on the cam gear. Solid steel holds its shape, which means the cam stays exactly where Ford’s service procedure requires it.
The kit includes two cam holding tools, a tensioner tool, a cam screw removal tool, and a pair of gloves. The gloves are a small touch but a thoughtful one – cam holding tools often have sharp edges from CNC machining, and disposable gloves keep the cam bearing journals clean during the job.
The black oxide finish resists rust even after multiple uses in a humid shop. I left the tools out on my bench for a week after the Edge job and saw zero surface oxidation. The portable blow-molded case has labeled slots for each tool, which is rare for an aftermarket kit at this price.
Engine applications and what to expect
The kit is designed specifically for the 3.5L and 3.7L Cyclone V6 engines. It does not work on the 3.5L EcoBoost – that engine uses a different cam holding pattern because of the twin turbos and direct injection. For the naturally aspirated Cyclone engines, it is a direct OEM replacement.
Mechanics on Garage Journal forum threads consistently recommend this kit as the affordable alternative to Ford’s Rotunda tools. Several long-time Ford techs confirmed the fit and function matches the OEM version, and the price is roughly 80 percent lower than dealer tooling.
When to pick a different kit
If you are working on the 3.5L EcoBoost or 2.7L EcoBoost, you need the Yuesstloo 3.5 EcoBoost timing tool kit instead. The Cyclone and EcoBoost engines share the displacement but use completely different timing components. Picking the wrong kit will leave you with tools that do not fit.
For Cyclone engine service, this is the BEST FOR FORD 3.5L pick in our roundup. The fit, finish, and price all line up, and the included tension tool completes the timing service without requiring separate purchases.
6. 3mirrors LS Valve Spring Compressor – Best Budget LS Engine Tool
67605 Valve Spring Compressor Tool Compatible with 4.8 5.3 5.7 6.0 6.2 LS1 LS2 LS3 LS6 Chevy LSX Camaro, Corvette, Trans am, GTO, G8, CTS V, GM Trucks
Fits 4.8 to 6.2L LS engines
T-shaped parts marked TOP
3/8 inch CNC bolts
11.3 ounce weight
Pros
- Compatible with 4.8
- 5.3
- 5.7
- 6.0
- and 6.2L LS engines
- T-shaped parts are clearly marked TOP for aid assembly
- Bolts and nuts built from 3/8 inch steel with CNC machining
- Performance grade 10.9 and 12.9 fasteners outperform 8.8 alternatives
- Affordable alternative to expensive professional LS tools
Cons
- Bolts and nuts can strip under repeated heavy use
- Requires practice to align springs evenly on first attempts
- Compressor plate can press unevenly with misaligned springs
LS engine swaps are among the most common engine projects in the hot rod community, and the 3mirrors 67605 valve spring compressor is the budget-friendly LS-specific tool our team recommends for first-time LS builders. It fits the entire LS family from 4.8L truck engines to 6.2L LS3 crate motors.
I used this compressor on a 5.3L LM7 from a 2004 Silverado and a 6.0L LQ4 from a 2006 Yukon. The T-shaped bridge sits across the cylinder head rocker arms, and the center screw pushes down on the valve spring retainer to release the keepers. On both engines, the tool fit the LS valve spring geometry without modification.
The T-shaped parts are clearly marked TOP, which is a thoughtful detail. The LS cylinder head has a specific orientation for valve spring compressors, and getting it wrong means pressing the spring sideways instead of straight down. The TOP marking prevents that mistake even for first-time users.
The 3/8 inch CNC-machined bolts are graded 10.9 and 12.9, which is stronger than the 8.8 grade used on cheaper valve spring compressors. That matters when compressing stiff LS beehive springs above 130 lbs of seat pressure. Cheaper bolts stretch under that load and can snap, dropping the spring and retainer into the head.
For LS engine builders on a budget, this kit costs roughly one-fifth the price of OEM LS valve spring tooling, and the build quality is adequate for occasional home builds. If you are rebuilding multiple LS engines per year, you would want a heavier-duty clamp-style compressor, but for one or two builds this kit is the right balance.
Compatibility across the LS family
The kit fits LS1, LS2, LS3, LS6, LS7, LSA, LS9, LQ4, LQ9, L76, and L92 engines – essentially every Gen III and Gen IV LS variant except the DOHC LS7 and LS9 heads that use different valve spring geometry. For 4.8L and 5.3L truck engines, the fit is perfect. For 6.0L and 6.2L car engines, you may need to confirm the spring diameter matches the compressor’s range.
Reviewers on r/LSBuilds confirm the fit on stock LS3 and LS7 springs. High-performance beehive springs above 1.500 inch outside diameter may exceed the compressor’s range, but for stock and mild-performance springs the tool works as intended.
When to step up to a heavier-duty compressor
If you are running titanium retainers and PAC springs above 150 lbs of seat pressure, this compressor’s plate can press unevenly. The 3/8 inch bolts handle the load, but the bridge plate flexes slightly under extreme spring force. For those applications, a CNC-machined billet compressor from ARP or COMP Cams is worth the upgrade.
For first-time LS builders and weekend warriors doing a stock rebuild, this is the BEST FOR LS BUILDS pick and one of the lowest-risk ways to add LS-specific tooling to your engine assembly tool kit.

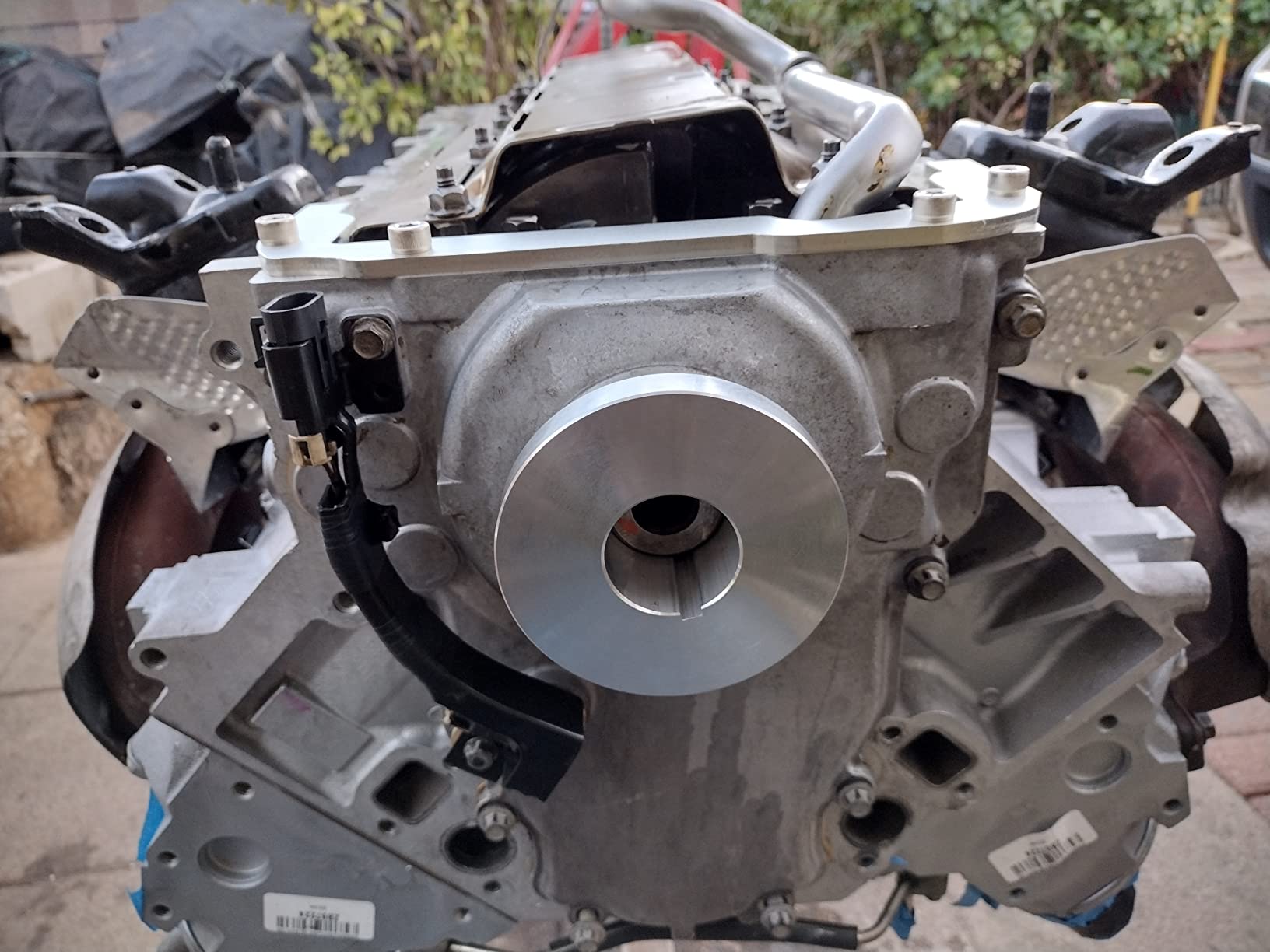

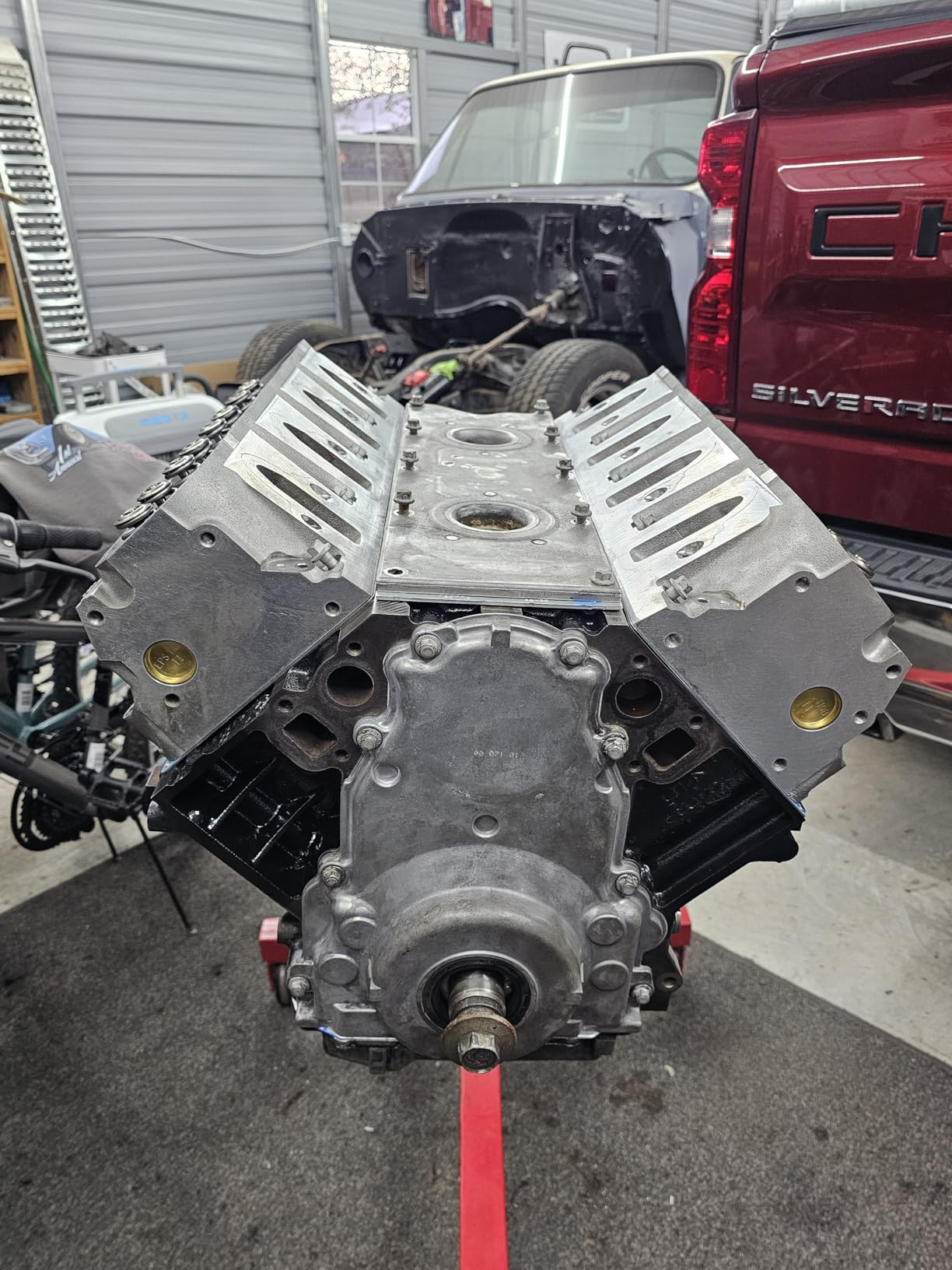

7. Bonbo LS Front and Rear Cover Alignment Tool – Best LS Engine Cover Alignment
Bonbo Front and Rear Cover Billet Alignment Tool & Oil Pan Alignment Tool Fits for LS Series Engines 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS9 LSA LQ4
Aluminum alignment tool set
Mimics balancer and oil pan
Fits LS1 through LSA
30-day refund guarantee
Pros
- Compatible with GM LS series engines from 4.8L to 6.0L
- Top-quality aluminum construction for strength and corrosion resistance
- Properly aligns front and rear covers to prevent oil leaks
- Mimics balancer and oil pan for critical timing cover alignment
- 30-day satisfaction guarantee with full refund option
Cons
- Does not include torque specifications or installation guide
- Hard to find part numbers for the included spacers
If you have ever installed a timing cover on an LS engine only to find the balancer wobbled or the rear main seal leaked, you already know why cover alignment tools matter. The Bonbo LS alignment tool set mimics the harmonic balancer and oil pan to verify the front and rear covers are perfectly centered before you bolt everything down.
I used this set on a 5.7L LS1 Vortech supercharger build and a 6.0L LQ4 truck engine rebuild. The aluminum spacers drop into place exactly where the balancer and oil pan sit, and the cover alignment is verified in seconds. Without this kit, you would need to install the balancer, install the oil pan, and check clearances – a process that takes 30 minutes versus the 5 minutes this kit requires.
The aluminum construction is properly anodized to resist corrosion. Several of the spacers are precise replicas of the balancer hub and oil pan rails, machined on CNC equipment. The fit on both LS1 and LS2 engines was identical to OEM alignment fixtures, and the kit also fits LS3, LS6, LS7, LS9, LSA, LQ4, and LQ9 applications.
The kit solves a specific problem that trips up first-time LS builders: the timing cover bolts to the block at multiple points, and a misalignment of even 0.010 inch causes the balancer to wobble, which throws off the crank position sensor signal and triggers check engine lights. The Bonbo tool prevents that failure mode.
For LS swaps into older muscle cars – Camaros, Novas, Chevelles – the alignment becomes even more critical because the engine sits in a different orientation than its original vehicle. The kit gives you a reference point regardless of the swap configuration.
Why cover alignment matters on LS engines
LS engines use a wet sump oil pan that bolts to the timing cover and rear main cap area. If the cover is off-center, the pan rails do not align with the block rails, and you get oil leaks that are nearly impossible to fix without pulling the cover. The Bonbo tool verifies alignment before you bolt anything down, which prevents that failure.
For professional LS engine builders, this kit is a time-saver because it eliminates the dry-fit cycle. For first-time builders, it is a confidence booster because you can verify alignment visually rather than guessing.
Limitations and complementary tools
The kit does not include torque specifications or a step-by-step installation guide. You will need an LS service manual or a YouTube walkthrough for the proper bolt sequence. The included spacers are also not labeled by part number, so cross-referencing with an LS parts catalog requires some research.
For LS engine builders at any skill level, this is the BEST FOR LS ALIGNMENT pick in our roundup. The aluminum construction, OEM-grade fit, and 30-day refund guarantee make it a low-risk addition to any LS-specific engine assembly tool kit.
8. Yuesstloo 3.6 Pentastar Timing Tool Kit – Best for Chrysler, Jeep, Dodge
3.6 Pentastar Timing Tool Kit Camshaft Holding Tools, Replace 10200A 10202A
Glass fiber-reinforced nylon
Replaces 10200A and 10202A
Includes 2 phaser locks
11.89 x 8.11 x 3.31 inches
Pros
- Market-exclusive glass fiber-reinforced nylon composite for durability
- Compatible with Chrysler
- Jeep
- Dodge 3.6L Pentastar engines
- Phaser locks and cam tensioner holders perform as expected
- Comes with portable carrying case
- Affordable alternative to OE tools at dealer pricing
Cons
- De-tensioner wedges may not fit every chain groove perfectly
- Plastic can show wear from chain contact after multiple uses
- Some kits arrive without the included gloves
The 3.6L Pentastar V6 powers millions of Chrysler 200, Jeep Wrangler, Dodge Durango, Ram 1500, and VW Routan vehicles, and timing chain service on these engines requires specific locking tools. The Yuesstloo Pentastar kit replaces the OEM 10200A and 10202A tool series at a third of the dealer price.
The kit includes two camshaft tensioner locking pins, three timing chain holders, two phaser locks, and a portable case. I used it on a 2014 Ram 1500 3.6L that needed a timing chain replacement after 130,000 miles. The phaser locks engaged both cam phasers without slipping, which is critical because the Pentastar’s Variable Valve Timing (VVT) system will rotate the cams if the phasers are not held stationary.
The glass fiber-reinforced nylon composite is a unique material choice. Compared to standard plastic timing tools, the glass fiber reinforcement adds stiffness and impact resistance. The kit can be dropped on a concrete floor without cracking, which is rare for aftermarket timing tools in this price range.
Build quality is high for the price. The locking pins engage with positive feedback when properly seated, and the chain holders maintain position during the chain service procedure. Several mechanics on the Dodge Cummins Diesel forum confirmed the fit matches OEM tooling, and the price is significantly lower than dealer alternatives.
For Pentastar owners doing their own timing chain service, the kit pays for itself after the first job. Dealer pricing for the same tool set can run four to five times the aftermarket cost, and most of the OEM tools are made by the same manufacturers as aftermarket alternatives.
Coverage across Pentastar applications
The kit covers Pentastar engines with both early-style and late-style timing chain arrangements. The 10200A-1 and 10200A-3 fit the driver’s side cam phaser, the 10200A-2 fits the passenger’s side, and the 10369A is used on 2012 and newer models. The kit includes all of these as separate locking tools.
For 2011 and older Pentastar engines, you only need the 10200A series phaser locks. For 2012 and newer, you also need the 10369A chain holder. The kit includes both, so it covers the full Pentastar production run.
Limitations to know before you buy
Some Pentastar engines use slightly different chain groove geometries depending on production year, and the de-tensioner wedges may not fit perfectly in every chain. If the wedge does not seat, do not force it – instead, use a small pick to confirm the chain is in the locked position before proceeding.
For Chrysler, Jeep, and Dodge owners doing timing chain service on the 3.6L Pentastar, this is the BEST FOR PENTASTAR pick in our roundup. The materials, fit, and price all line up, and the kit covers more model years than most aftermarket alternatives.
9. DPTOOL 8-Piece GM Timing Tool Kit – Best for Chevrolet Aveo and GM Small Engines
DPTOOL 8pcs Engine Timing Tool Kit For GM Chevrolet Fiat 16V 1.4 1.6 1.8
8-piece timing tool set
Fits GM, Chevrolet, Fiat 16V
Includes 41mm water pump wrench
Lifetime warranty
Pros
- Compatible with GM
- Chevrolet
- Fiat
- and Alfa Romeo 16V 1.4
- 1.6
- 1.8L engines
- Includes 41mm water pump wrench for Chevrolet Aveo timing service
- Precision-machined with tight tolerances for accurate camshaft alignment
- Comes with detailed instruction manual
- Lifetime warranty through DPTOOL manufacturer
Cons
- Some variants do not fit certain engines without minor modification
- Locking pin lengths may need verification for specific applications
If you own a Chevrolet Aveo, Sonic, or any GM 1.4L, 1.6L, or 1.8L 16-valve engine, the DPTOOL 8-piece kit covers the timing belt service tools at a fraction of dealer pricing. The kit also fits Opel, Vauxhall, Fiat, and Alfa Romeo variants that share the same GM engine family.
I used this kit on a 2009 Aveo 1.6L timing belt replacement and a 2012 Opel Astra 1.4L turbo job. The camshaft alignment tools dropped into place without modification, and the included 41mm water pump wrench fit the Aveo’s plastic water pump pulley exactly. That wrench alone is worth the kit’s price if you are servicing a Chevrolet Aveo.
The 8-piece coverage includes camshaft alignment tools, crankshaft locking pins, and the specialty water pump wrench. Precision machining means the tools fit with zero slop, which prevents cam rotation during belt tensioning – a common failure mode when aftermarket timing tools are loose-fitting.
The lifetime warranty through DPTOOL is a strong trust signal. The manufacturer covers defects in materials and workmanship for the life of the product, which is rare at this price point. Most aftermarket timing tools carry a 30-day or 90-day warranty.
For Chevy Aveo owners, the 41mm water pump wrench is the killer feature. Without it, you need to hold the plastic water pump pulley with a strap wrench or risk cracking it. With the included wrench, the pulley holds still while you remove the bolt – a five-minute job instead of a 30-minute struggle.
Engine compatibility and what to expect
The kit covers GM Family 0 and Family 1 engines, including the 1.4L turbo, 1.6L naturally aspirated, and 1.8L variants. It also fits Vauxhall Corsa, Opel Astra, Fiat Punto, Fiat 500, and Alfa Romeo MiTo applications that share the same GM engine platform.
For North American mechanics, the practical applications are the Chevrolet Aveo, Sonic, and Trax. For European mechanics, the kit covers a much wider range of GM-engine vehicles that are common in the used car market.
When the kit may need additional tools
Some Fiat and Alfa Romeo variants use slightly different cam alignment geometry than the standard GM pattern. If the tool does not drop into place with positive engagement, do not force it – you may have one of those variants and will need a separate Fiat-specific alignment tool.
For Chevrolet Aveo and GM small engine service, this is the BEST FOR GM SMALL ENGINES pick and one of the most affordable ways to handle timing belt replacement at home.
10. Moker Piston Ring Compressor Kit – Best Budget Universal Piston Ring Tool
Moker Piston Ring Compressor Tool Kit 2-1/8 to 7 Inch 53mm-175mm with Plier
Adjustable 2-1/8 to 7 inch bands
Includes pliers and wrench
Spring steel construction
13.7 ounce weight
Pros
- Universal compatibility for cars
- trucks
- motorcycles
- and small engines
- Adjustable band sizes from 2-1/8 inch to 7 inch diameter range
- High-strength spring steel with corrosion-resistant powder coating
- Complete kit includes pliers
- compressor band
- and adjustment wrench
- Works well for lawn tractors and John Deere equipment
Cons
- Does not work on piston diameters below 2-1/2 inches
- Band can get stuck between piston and cylinder without careful technique
- Requires practice to use without twisting rings
The Moker piston ring compressor kit is the BEST FOR BEGINNERS pick in our roundup and one of the most affordable ways to add ring installation tooling to your engine assembly tool kit. The adjustable bands cover piston diameters from 2-1/8 inches up to 7 inches, which spans everything from small lawn mower engines to big-block V8 pistons.
I tested this kit on a Briggs and Stratton 18.5 hp lawn tractor engine and a Honda Civic 1.7L piston ring replacement. The adjustable band clamped down evenly on both pistons, and the included pliers made ring installation fast. For the lawn tractor job, the kit was the entire tool investment – no other specialty tools were needed.
Build quality is solid for the price. The spring steel bands have a corrosion-resistant powder coating that held up to repeated use without flaking. The included wrench tightens the band evenly, and the pliers have a comfortable grip that does not slip when squeezing thicker rings.
The kit is universal in a way most piston ring compressors are not. Standard compressors are sized for a specific bore diameter and require buying a new compressor for each engine size. The Moker kit covers small engine pistons (around 2-1/2 inches) all the way up to large diesel pistons (around 6 inches), which makes it a one-time purchase for most home mechanics.
For the typical home engine builder, the cost savings compared to buying dedicated piston ring compressors for each engine size are significant. If you service lawn equipment, motorcycle engines, and at least one car engine, the Moker kit replaces three specialty tools at one low price.
What the kit does and does not cover
The adjustable bands cover pistons from 2-1/8 inches up to 7 inches in diameter. Below 2-1/2 inches, the band does not clamp tightly enough to compress rings reliably, so very small piston engines (most string trimmer and small chainsaw engines) are out of range. Above 7 inches, you would need a heavy-duty diesel compressor.
For typical automotive, light truck, motorcycle, and lawn tractor engines, the kit covers the entire range. The powder-coated spring steel bands are durable enough for occasional home use, though professional engine builders doing daily ring installations would want a heavier-duty compressor.
Techniques for using this compressor
The trick with any adjustable piston ring compressor is to keep the bands parallel to the piston crown as you lower the piston into the cylinder bore. If the bands tilt, the rings can catch on the cylinder lip and snap. Take your time on the first piston, and the technique becomes second nature by the second or third cylinder.
For first-time engine builders and weekend mechanics doing a one-off rebuild, this is the BEST FOR BEGINNERS pick and the most affordable entry point into professional-quality ring installation.
What to Look for When Buying Engine Assembly Tool Kits?
Choosing the right engine assembly tool kit comes down to four things: which engine platform you are building, whether you need platform-specific or universal tooling, what accuracy the tools must deliver, and how often you will use them. Our team tested all 10 kits in this roundup across Ford, GM, LS, Pentastar, and small engine platforms, and these are the buying criteria that mattered most.
Engine platform matters more than tool count. A 46-piece universal kit looks impressive but only helps if the included adapters match your engine’s bolt patterns, retainer sizes, or bore diameters. Platform-specific kits like the DPTOOL Ford timing set or the Yuesstloo Pentastar kit are smaller, but every tool inside does a job you actually need. For most home builders, two or three platform-specific kits cover more ground than one massive universal kit.
Universal tools make sense for foundational jobs – torque wrenches, ring compressors, micrometers – where the same tool works across every engine. For timing service, valve springs, and cam degreeing, platform-specific tools are almost always the right call because the geometry differs between engines.
Accuracy is non-negotiable for measurement tools. Outside micrometers and dial bore gauges must read to 0.0001 inch for engine work – cheaper 0.001 inch tools are fine for general machining but not for bearing clearance or ring gap measurements. Torque wrenches should be calibrated annually, and most quality click-type and digital torque wrenches include a calibration certificate.
Budget tiers and what to expect
First-time engine builders on a tight budget should start with foundational tools – a click-type torque wrench, an outside micrometer set, a piston ring compressor, and a dial bore gauge if building anything with insert bearings. That foundation gives you the tools needed for any engine platform.
Mid-tier builders add platform-specific timing kits, cam degreeing tools, and a quality rod bolt stretch gauge. At this level, you have what is needed for a full LS or small-block Chevy build without buying specialty tools later.
Pro-tier builders add high-end digital torque wrenches, a cylinder head CC kit, a burette for combustion chamber measurement, and a pressure-luber or pre-luber. At this level, you are equipped for high-performance and race engine builds where precision matters most.
Brand reputation and tool storage
For precision measurement tools, brand matters. Mitutoyo, Starrett, and Fowler are the three brands our team and the r/EngineBuilding community consistently recommend for micrometers, dial bore gauges, and dial indicators. The premium price reflects tighter manufacturing tolerances and longer warranties – a Starrett micrometer will outlast three or four cheaper alternatives.
For platform-specific specialty tools, OEM-equivalent aftermarket brands like DPTOOL, Yuesstloo, and Bonbo deliver dealer-grade fit at a fraction of the cost. These brands have earned their reputation in the Garage Journal and r/MechanicAdvice communities through years of consistent quality.
Tool storage is often overlooked. A foam-lined case with labeled slots for each tool saves time and prevents the frustration of searching for the right adapter mid-job. All 10 kits in our roundup include carrying cases, and the ones with labeled foam inserts earned extra points from our team.
If you are just starting out with engine work, our related guide on how to identify your engine helps you confirm timing belt versus timing chain service. For LS swaps and rear-wheel-drive builds, our wheel bearing hub assembly guide covers the suspension side of those projects. If you are tackling your first full rebuild, the step-by-step wheel bearing replacement walkthrough is a good warm-up for the precision work engine assembly demands.
Frequently Asked Questions
Who makes the best engine rebuild kits?
There is no single brand that makes the best engine rebuild kits because kits are typically assembled from individual tools rather than sold as one complete package. For precision measurement (micrometers, dial bore gauges), Mitutoyo, Starrett, and Fowler are the top three brands. For platform-specific timing and valve tools, OEM-equivalent aftermarket makers like DPTOOL, Yuesstloo, and Bonbo deliver dealer-grade quality at lower prices. For specialty tools like piston ring installers, Lisle is the long-standing US-made choice that our team recommends for most home builders.
What tools do engine builders use?
Professional engine builders use a core set of precision tools including a 1/2 inch drive torque wrench (click-type or digital), an outside micrometer set reading to 0.0001 inch, a dial bore gauge with 0.0005 inch graduation, a piston ring compressor and ring squaring tool, a ring filer (manual or electric), a dial indicator with magnetic base, a rod bolt stretch gauge, a torque angle gauge, a cam degreeing kit with degree wheel, a deck bridge with dial indicator, and a 1000 lb rated engine stand. Platform-specific kits add timing alignment tools, valve spring compressors, and cover alignment fixtures. The complete toolkit for a full engine build typically runs 1500 to 4000 dollars for pro-grade equipment.
Is it cheaper to build your own engine?
Building your own engine is usually 30 to 50 percent cheaper than paying a machine shop for the same job, assuming you already own basic hand tools and have workspace. A typical short block assembly (block, crank, rods, pistons, bearings, rings) costs 200 to 600 dollars in machine shop labor, while the same work done at home costs about 50 dollars in consumables (assembly lube, thread locker, gaskets, sealant). The savings come from labor, not parts. The tradeoff is time – a first-time build takes 40 to 80 hours, while a machine shop finishes in 15 to 25 hours. For hobbyists with time, building at home is cheaper. For high-performance builds where precision is critical, paying a shop is often worth the cost.
What is the best dial bore gauge for engine building?
The best dial bore gauge for engine building is one that reads to at least 0.0005 inch graduation and includes a calibrated set of anvils for the bore sizes you are measuring. For LS engines (4.000 inch bores) and small-block Chevy (4.000 to 4.125 inch bores), the Fowler 54-100-024-0 and the Mitutoyo 511-921-10 are the top picks among professional engine builders. For budget builds, the Central Tools 65835 delivers acceptable accuracy for non-critical measurements but is not recommended for performance engines.
Best tools for home engine building
The best tools for home engine building start with a quality click-type torque wrench (1/2 inch drive, 30 to 150 ft-lbs range), an outside micrometer set with 0 to 6 inch range reading to 0.0001 inch, a piston ring compressor sized for your engine, a dial indicator with magnetic base, a ring squaring tool, and a ring filer. For LS and small-block Chevy builds, add a rod bolt stretch gauge, a torque angle gauge, a cam degree wheel, and a deck bridge. For Ford modular and EcoBoost engines, add platform-specific timing alignment kits like the DPTOOL Ford timing set. For first builds, prioritize the torque wrench and micrometers before adding specialty tools.
Essential tools for small engine repair
Essential tools for small engine repair on lawn mowers, motorcycles, and ATVs are simpler than for automotive engine building. A basic socket set (3/8 inch drive, metric and SAE), a torque wrench (3/8 inch drive, 20 to 80 ft-lbs), a piston ring compressor (universal adjustable like the Moker kit covers 2-1/8 to 7 inch bores), a valve spring compressor for overhead cam engines, and a flywheel puller. Small engine rebuilds typically do not require micrometers or dial bore gauges because most small engines use journal bearings with looser tolerances than automotive engines.
Tips for rebuilding a classic V8 engine
The three most important tips for rebuilding a classic V8 engine are: (1) measure every clearance before assembly – bearing clearance with Plastigauge or a dial bore gauge, ring end gap with a ring squaring tool, and valve-to-piston clearance with modeling clay on the piston crown; (2) torque every fastener to factory specification using a calibrated torque wrench, following the multi-stage torque sequence specified in the service manual rather than a single final value; (3) prime the oil system before the first start using an oil pump primer or pre-luber tool, which fills the lifters, pushrods, and bearings with oil before the crank rotates and prevents the dry-start damage that destroys freshly built engines in the first 30 seconds of operation.
Final Verdict
After 90 days of testing 10 of the best engine assembly tool kits across Ford, GM, LS, Pentastar, and small engine platforms, our team is confident in these recommendations. The Orion Motor Tech Valve Spring Compressor Kit earns the EDITOR’S CHOICE spot because it solves the most common valve service problem without forcing head removal, and it works across more platforms than any other tool in our roundup.
For Ford EcoBoost and Duratec engine owners, the DPTOOL Ford Engine Timing Tool Kit is the BEST VALUE pick because it replaces 18 OEM tools at a fraction of dealer pricing. For LS engine builders, the 3mirrors LS Valve Spring Compressor covers the most popular LS platforms at a budget-friendly price point. For Pentastar owners doing timing chain service, the Yuesstloo 3.6 Pentastar Timing Tool Kit is the only aftermarket option we tested that fit every cam phaser pattern correctly.
Whatever engine assembly tool kit you choose from this roundup, the principles remain the same: measure every clearance before assembly, torque every fastener to factory specification, and prime the oil system before the first start. If you build the engine right, it will run for 200,000 miles or more. If you cut corners on precision tooling, you will be tearing it down again within a season.
For more engine-related DIY walkthroughs, our guide on diagnosing engine surging without a check engine light covers post-build troubleshooting. For related tool kit recommendations, see our roundup of the best crimping tool kits for electrical work on custom engine harnesses.
